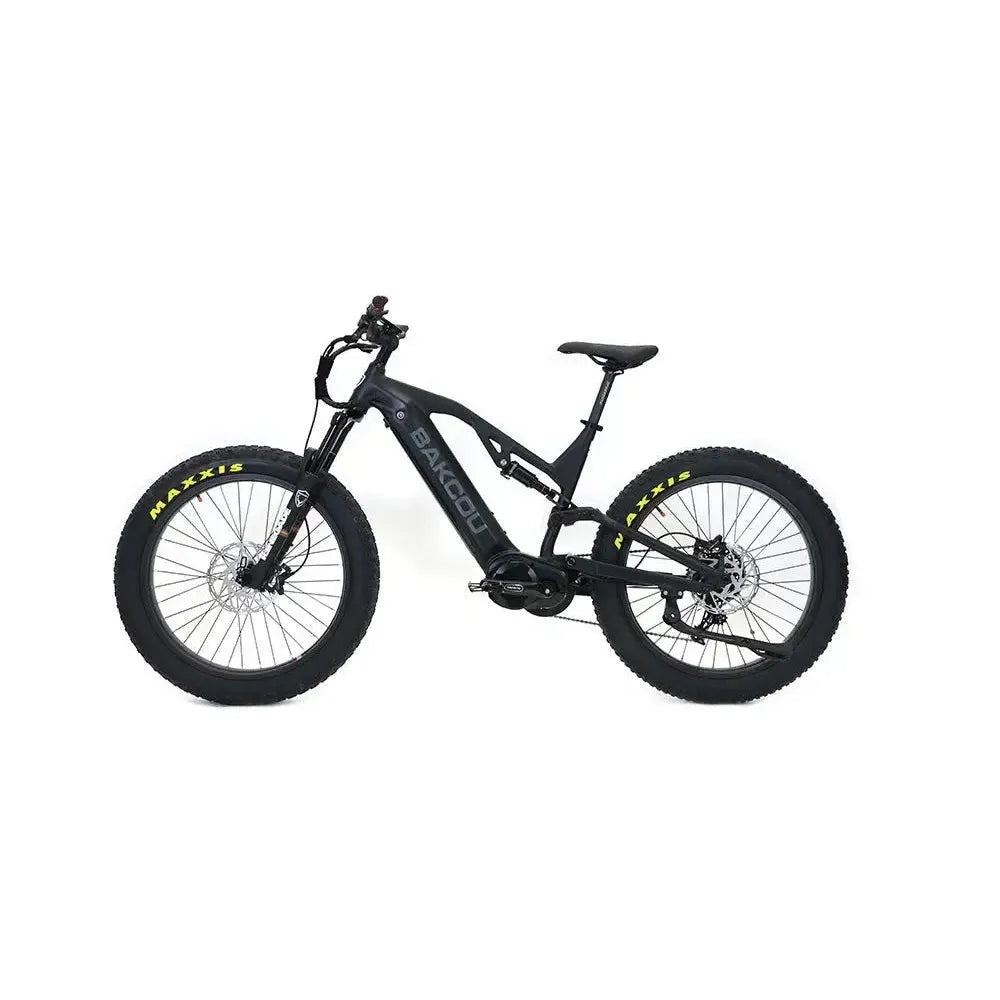

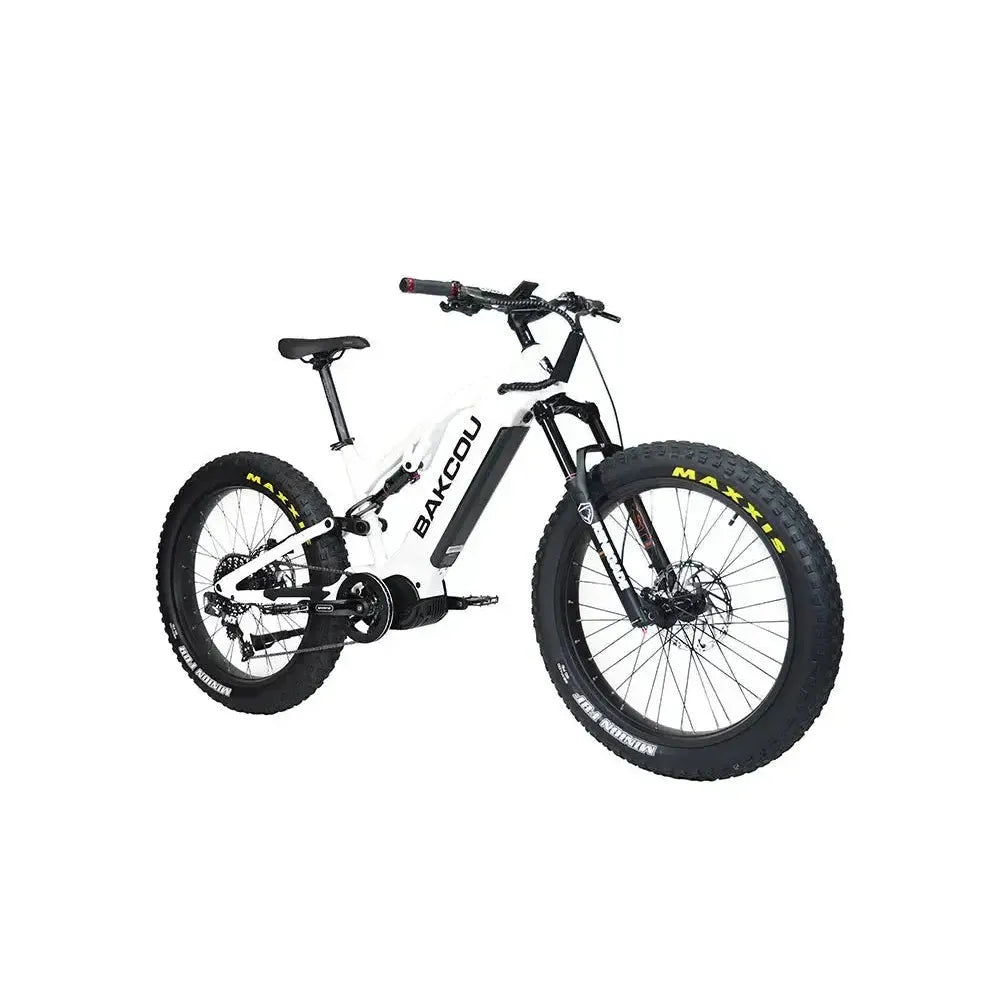

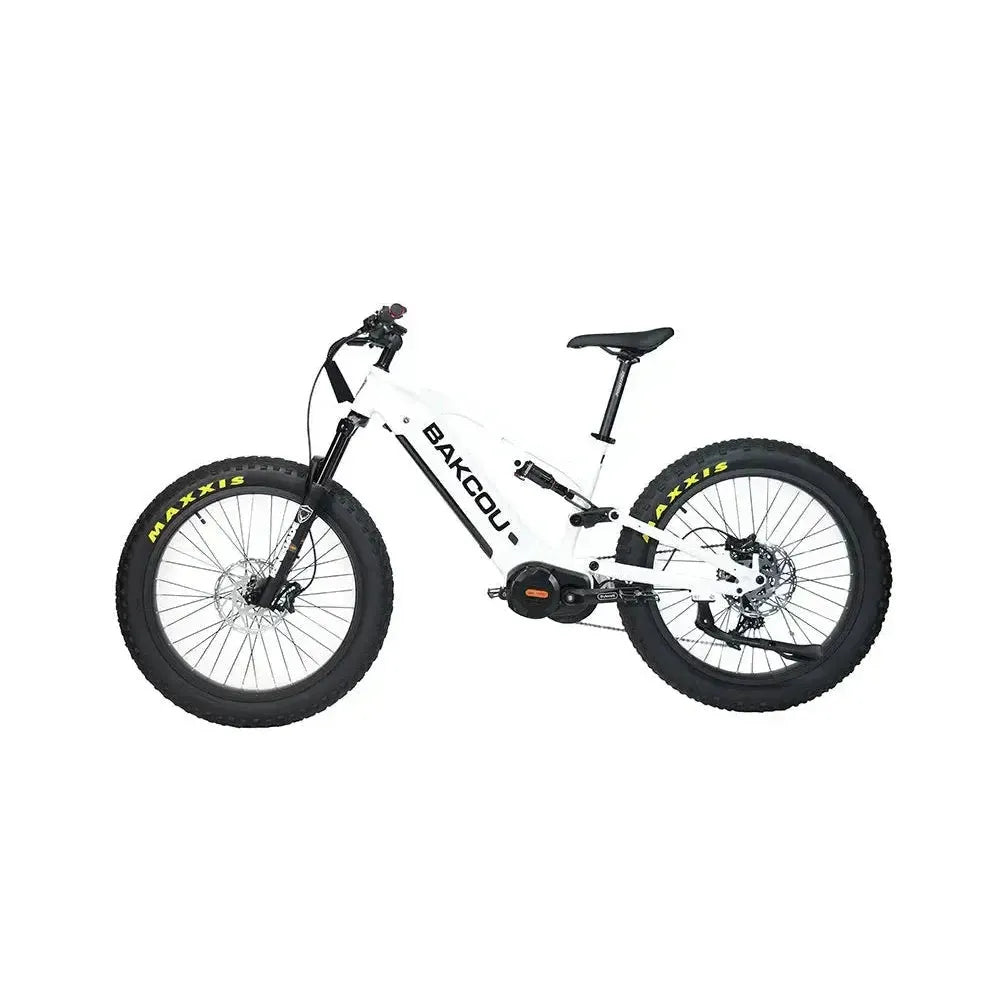

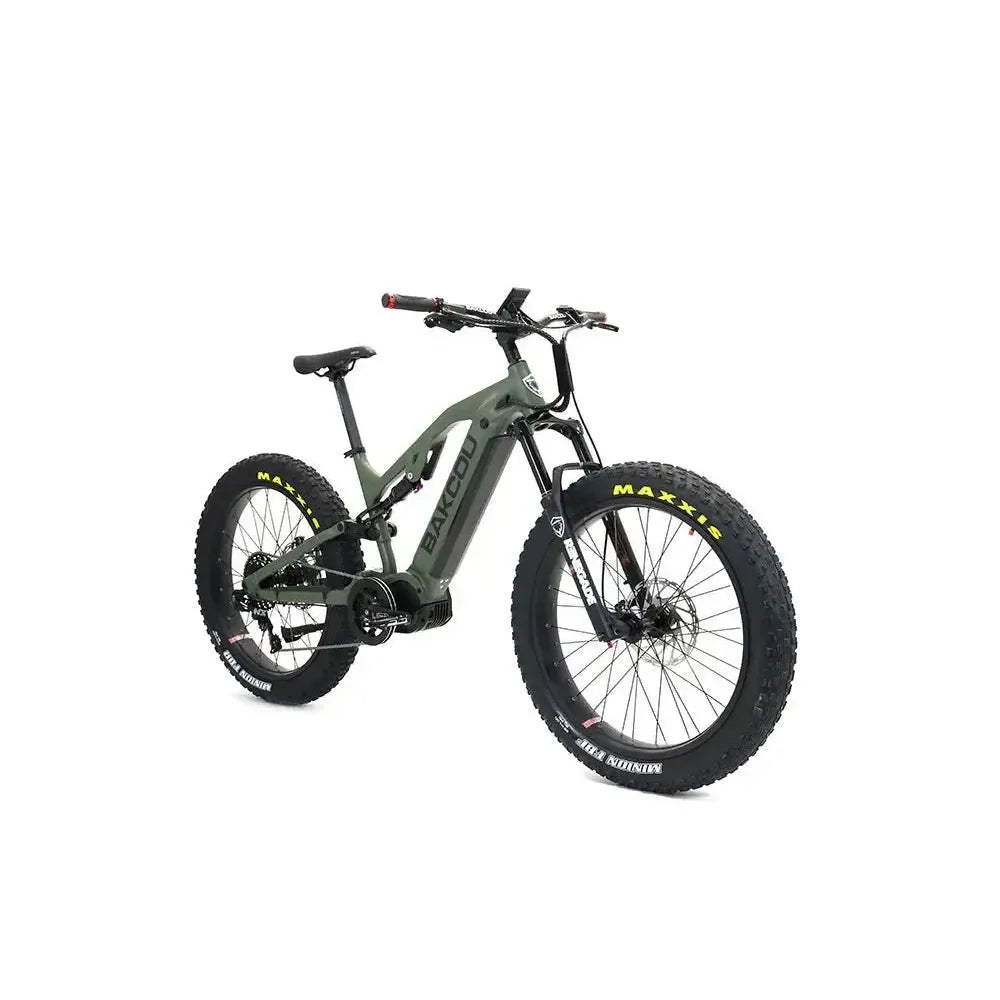

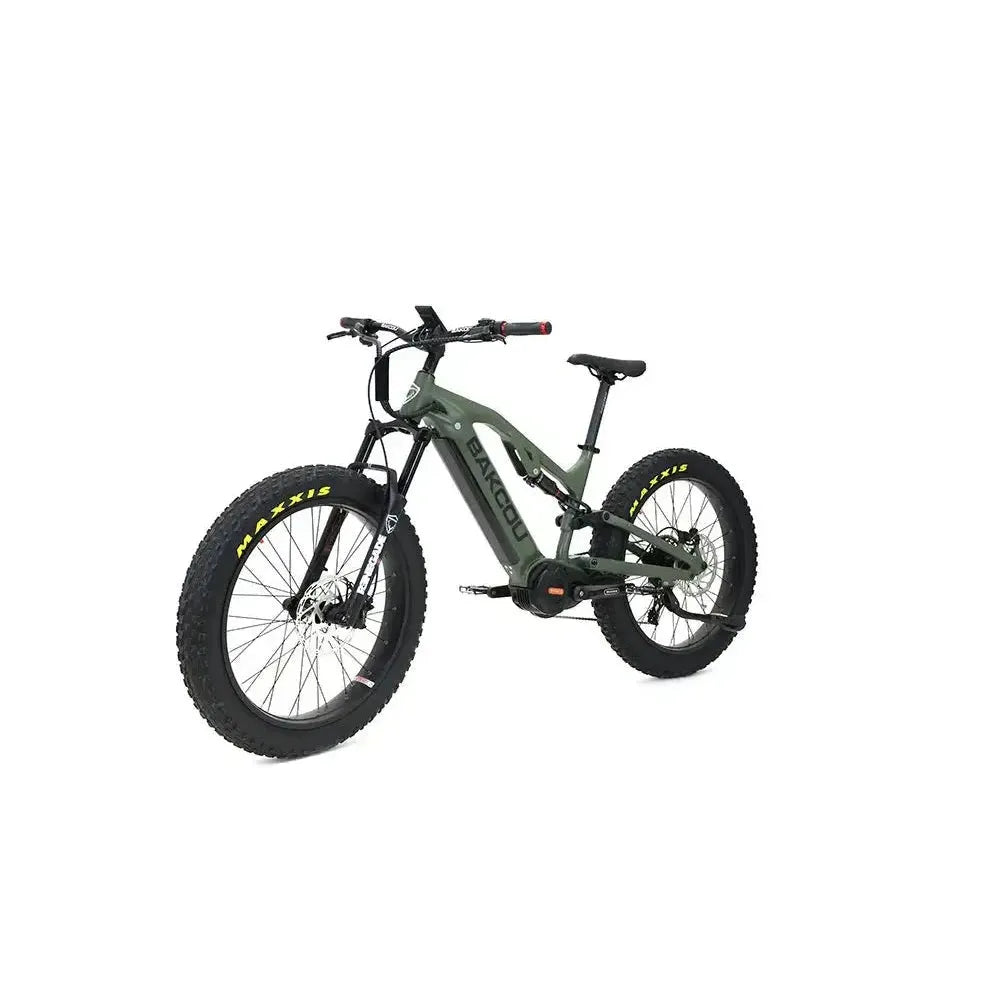

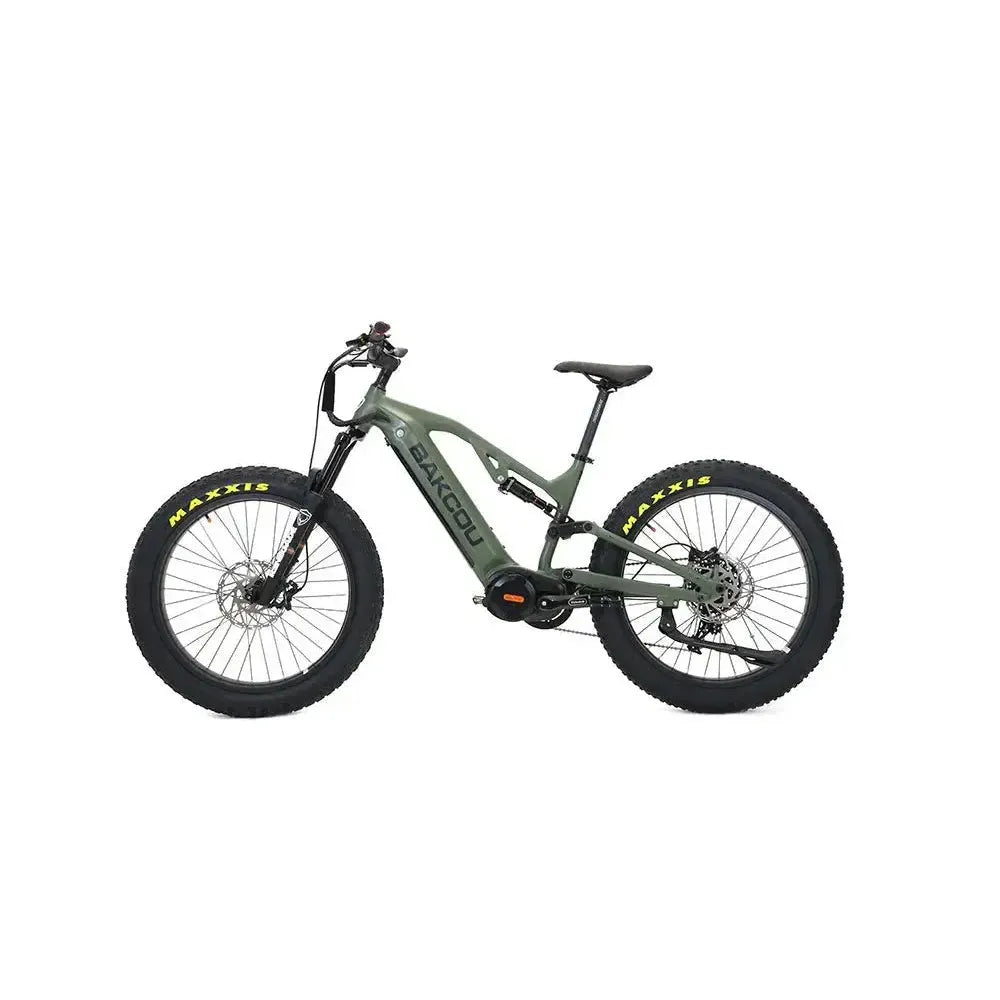

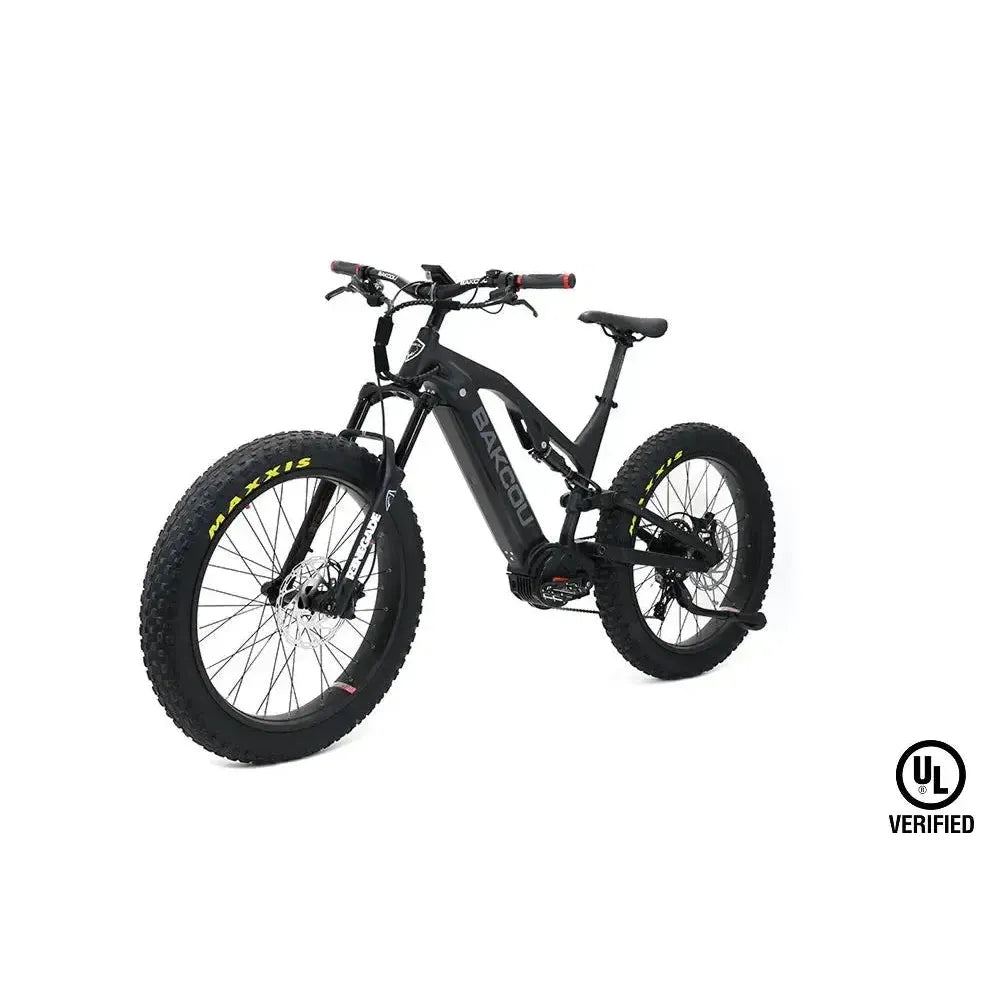

Bakcou Scout Full-Suspension Fat Tire Electric Bike

⚡1000W Powerful Bafang Mid-Drive Motor (1500W Max Output) w/ 160Nm of Torque

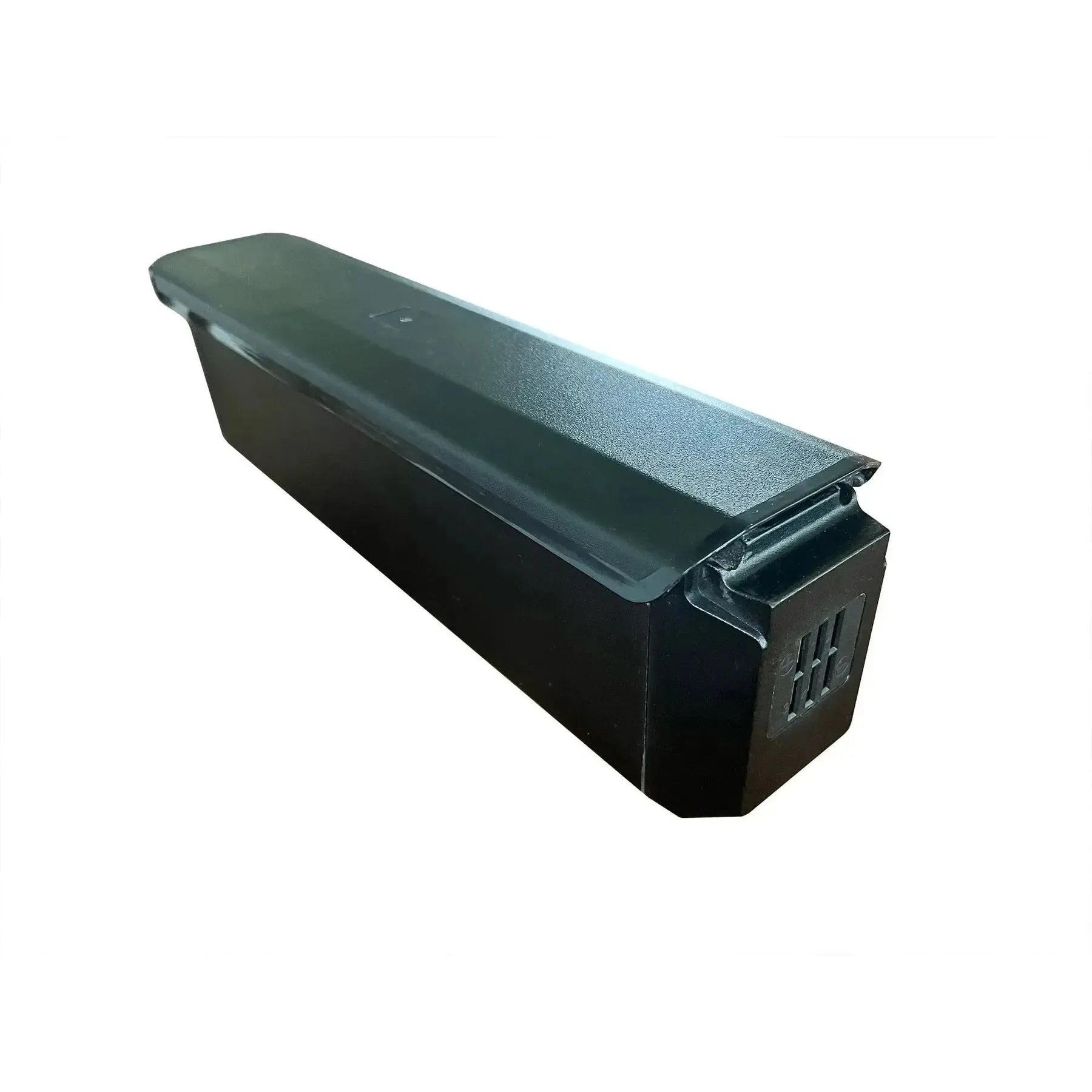

⚡Downtube Integrated 21Ah Lithium-ion Battery

⚡RST Renegade Fork (120mm of travel) & Rock Shox Monarch Rear Suspension

⚡Powerful Tektro HD E750 Quad Piston Hydraulic Brakes, 203mm Front & Rear

⚡11-Speed Gears

Bakcou Scout Description

Bakcou’s first sport‑trail full‑suspension fat‑tire e‑bike, the Scout combines the geometry and agility of the Storm and Carbon Alpha with the raw power of Bafang’s Ultra mid‑drive motor to create an all‑terrain machine for hunters and trail riders. The heart of the Scout is Bafang’s Ultra M620 mid‑drive motor, which can be set to Class 1/2/3 modes and delivers up to 160 Nm of torque—often dubbed the “diesel engine” of e‑bike motors. This smart motor features sensors for cadence, speed, and torque, providing a natural pedalling feel and adjusting power instantly when you climb, accelerate, or shift gears.

The Scout’s full‑suspension frame is crafted from lightweight 6061‑aluminium and pairs a 140 mm air‑fork up front with a RockShox Monarch rear shock, smoothing out rocky descents and technical climbs. Maxxis Minion 26 × 4.0 inch tires provide fat‑tire flotation on loose surfaces, while the bike’s slack head‑tube angle and unique geometry give it nimble handling despite its aggressive stance. Power comes from an integrated 48 V battery available in 17.5 Ah or 21 Ah capacities.

Trail‑ready components ensure confidence on rough backcountry routes. An 11‑speed SRAM NX drivetrain with a 40‑tooth chainring and 11‑42‑tooth cassette delivers smooth shifting and optimal cadence. Tektro quad‑piston hydraulic brakes clamp 203 mm rotors for reliable stopping power. A removable left‑thumb throttle plus Bakcou’s On‑Demand Program (ODP) display lets riders switch between Class 1/2/3 or unlimited modes. Together, these features make the Scout a versatile hunting and trail e‑bike capable of backcountry scouting, overlanding, and all‑day exploration.

• Full-suspension sport-trail design for improved control, comfort, and confidence on technical terrain
• Bafang Ultra M620 mid-drive motor delivering up to 160 Nm of torque for steep climbs and aggressive riding
• Class 1 / 2 / 3 mode capability via Bakcou’s On-Demand Program (ODP)
• Fat tire traction with Maxxis Minion 26” x 4" tires for stability on loose, rocky, and uneven surfaces
• Integrated high-capacity battery options (17.5Ah or 21Ah) for extended trail and backcountry rides
• Trail-ready components including 11 speed SRAM NX drivetrain and quad-piston hydraulic brakes
• Built and supported in the USA with industry-leading customer service

FRAME SET

• FRAME
  High Grade Aluminum Alloy 6061
• FORK
  RST Renegade Air Fork (120mm of travel)
• SIZE
  19” (Large - 5'10 & taller)

DRIVE TRAIN

• SHIFTER
  Sram NX
• REAR DERAILLEUR
  Sram NX 11 Speed
• CRANK
  Lasco EB11
• CASSETTE
  Sram NX Cassette
• CHAIN
  KMC eBike Heavy Duty
• CHAIN RING
  130mm 40t with Aluminum Chain Guard

WHEELS

• WHEELS
  150mm Thru Axle Front Hub / 197mm Thru Axle, 12mm Diameter Rear Hub
• TIRES
  Maxxis Minion 26” X 4.0

E SYSTEM

• BATTERY
  48 Volt Lithium-Ion
  - 21 Amp Hours / 1008 Watt Hours

COMPONENTS

• SADDLE
  SR Selle Royal Saddle
• SEAT POST
  30.9mm Promax Large Frame
  31.6mm Promax Medium Frame
• HANDLEBAR
  Bakcou Aluminum
• STEM
  ProMax 90mm
• BRAKE
  Tektro HD E750 Quad Piston Hydraulic
• ROTOR
  203mm Front & 203mm Rear

WEIGHT

• WITHOUT BATTERY
  69 lbs
• BATTERIES
  21Ah= 10lbs 11oz

Scout Specifications

• Motor: 1000W Powerful Bafang Mid-Drive Motor (max power of 1500W) w/ 160NM of Torque
• Battery: Downtube Integrated 21Ah Lithium-ion Battery
• Display: Bafang DP C18.UART Full Color LCD Display
• Brakes: Powerful Tektro HD E750 Quad Piston Hydraulic Brakes, 203mm Front & Rear
• Suspension: RST Renegade Fork (120mm of travel) & Rockshox Monarch Rear Suspension
• Frame: 17” & 19” High-Grade Aluminum Alloy 6061 Frame
• Gears: 11-speed Sram NX, 11-42t Rear cassette, Removable Left Side Thumb Throttle
• Tires: 26” x 4.0" Maxxis Minion Fat Tires w/ Unparalleled Traction and Control
• Wheels: Quick Release Front Hub
• Steering: Wide 740mm Handlebars for Greater Stability
• Grips: Locking Ergonomic Handlebar Grips
• Guards: Side Rear Derailleur Guards
• Saddle: SR Nebula Sport Saddle
• Pedals: Aggressive Skid-Proof Wide Stance Pedals for Fat Tire Electric Bikes
• Recommended Rider Height: 17" Frame 5'-7"+ | 19" Frame 5'-10"+
• Max Speed: 35+ mph
• Weight: 72 Lbs.
• Load Capacity: 300 Lbs.
• Box Dimensions & Weight: 63" x 12" x 35" (100 Lbs.)
• Assembly: The Scout comes mostly assembled. Final assembly includes attachment of the handlebar, pedals and front wheel. Please see the assembly video below.

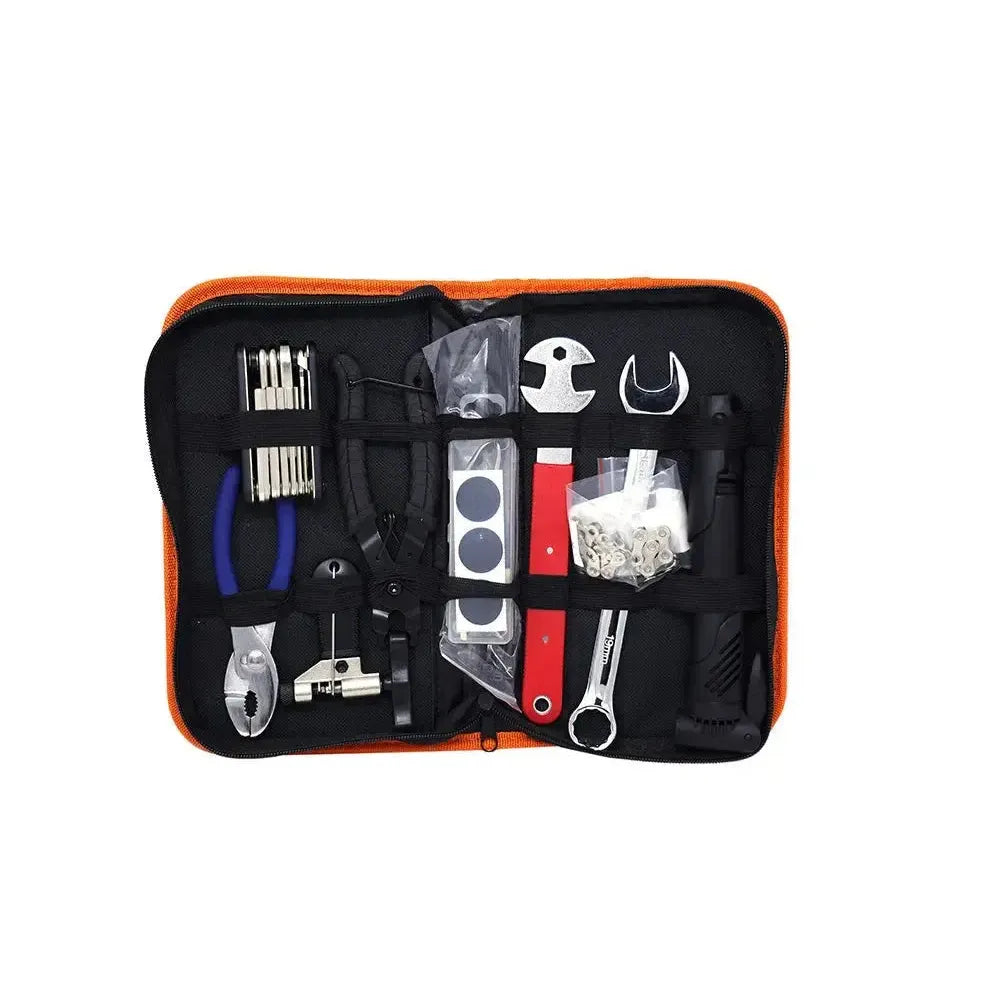

• Tools Required: Bakcou Muli-Tool (Included)
• Warranty: 1 Year

Bakcou Ebike Owner's Manual

Bakcou Scout Assembly Video

In this video, Travis with Bakcou shows us how to set up and use the display on the Scout electric bike. He goes over the information on the main screen, how to navigate the menus, and how to adjust the settings on the bike."
