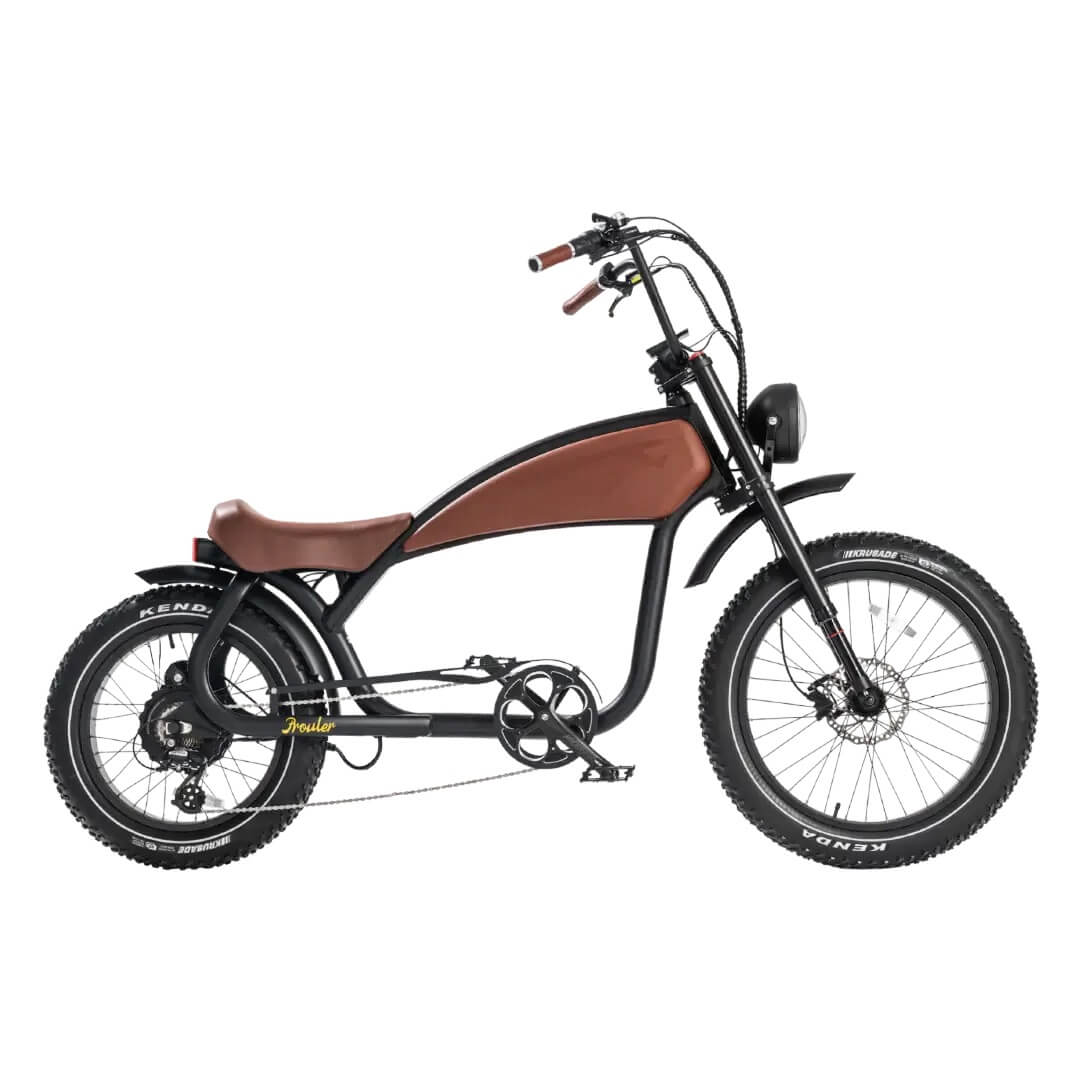

Revi Bikes Prowler 1040W 52V/20Ah Fat Tire Electric Cruiser

⚡1040W Powerful Rear Hub Motor

⚡52V/20Ah Long Range Lithium-Ion Battery w/ Samsung Cells

⚡5-Level Pedal Assist System (PAS) w/ 7-Speed Shimano Drivetrain and Throttle

⚡Retro-Style Electric Cruiser

⚡Delivers Tons Of Power & Style

Revi Prowler Highlights

20AH Samsung Battery

With a capacity of 20ah, this high-capacity battery provides a substantial amount of energy storage. Ride up to 70 miles on pedal-assisted fun. With a Samsung battery, you can have confidence in the e-bike's performance and longevity.

LCD Display

Check your battery life, operation status, speed and trip distance. The maximum speed can reach 32 mph.

A Unique Handlebar Style

Ape hangers are characterized by their tall, upward-sloping handlebars. These elongated bars not only provide a striking visual effect but also offer a unique riding experience. They are an vintage style statement. Riders often find that the elevated handlebars reduce strain on their wrists and shoulders, making long journeys more enjoyable.

Anti-Puncture Tires With K-Shield Technology

The puncture-resistant layer will prevent a nail or similar object from piercing through to the inner tube. Whether you're riding at dawn, dusk, or in inclement weather, the reflective strips play a crucial role in ensuring that you remain visible and safe on the road.

Air Suspension Hydraulic Disc

The 180mm hydraulic disc brakes provide reliable and sensitive braking performance. The front air suspension helps smooth bumps and improves off-road performance, making the ride more stable, comfortable, and controllable.

Tektro E395 Updated Brake

The heightened thickness of the Tektro E395 disc brake and brake pads augments their stopping power significantly. This means that when you engage the brakes, you can expect a more robust and efficient response, such as downhill descents or sudden obstacles.

Leather with Embossing

A leather tank cover with embossing is a multifunctional accessory that combines protection and aesthetics for a vintage electric bike. This embossing adds a personalized and unique touch to the cover.

Hump Seat Design

Cafe racer-style seats are known for their hump or cowl-like design at the rear, which adds a retro and sporty appearance. Brown seat is made of high-quality synthetic leather and filled with a thick sponge, providing a wider and more comfortable seating area for riders.

Different Tire Size

Having a larger 24" front tire and a smaller 20" rear tire can create a visually striking profile, emphasizing the bike's power and dynamism. This design choice can enhance the bike's overall vintage look. Antipuncture tires provide enhanced protection.

Revi Prowler Specifications

• Motor: 52V 750W（rated）
• Motor Peak Output: 1500W
• Battery Cell: Samsung
• Battery Type: Lithium-ion
• Battery Capacity: 52V 20AH
• Max Range: 70 Miles
• Charging Time: 5 - 6 Hrs
• Front Light: Included
• Pedal Assist: 1-5 levels
• Throttle: Yes
• Brake: F/R Hydraulic Brake
• Brake Brand: Tektro
• Rotors: 180mm Front and Rear
• Wheel Size: 24"F/20"R X 4.0
• Display: Full Color with USB Port
• Display Function: PAS Level, Current Speed, Max Speed, Odometer, Trip, Model selection
• Frame Material: 6061 Aluminum Alloy
• Shift: SHIMANO™ 7 Speed
• Crank Wheel: 48T 170mm
• Saddle: Leather
• Chain: EPT Anti-Rust
• Sensor: Cadence
• Weight: 112 lbs with battery
