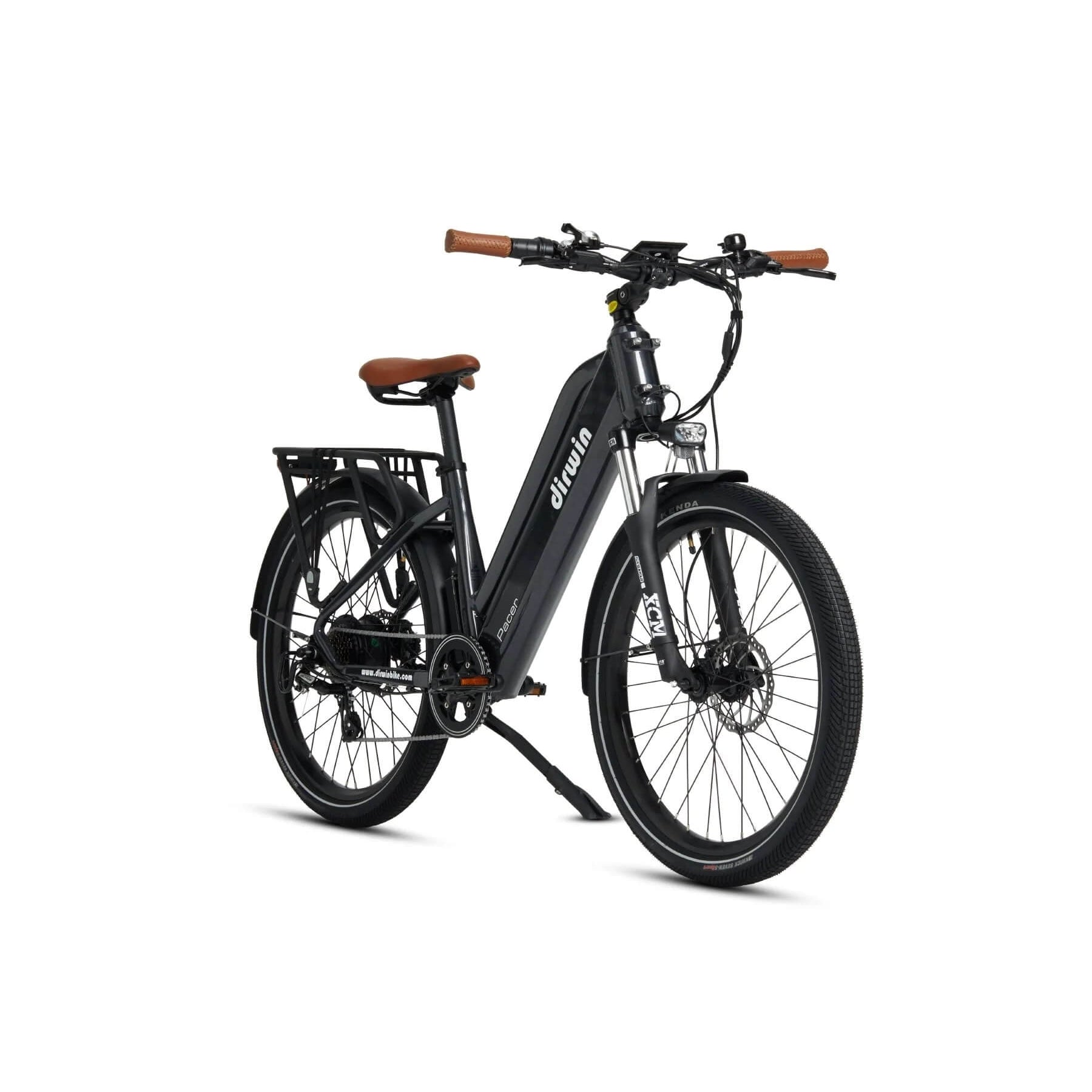

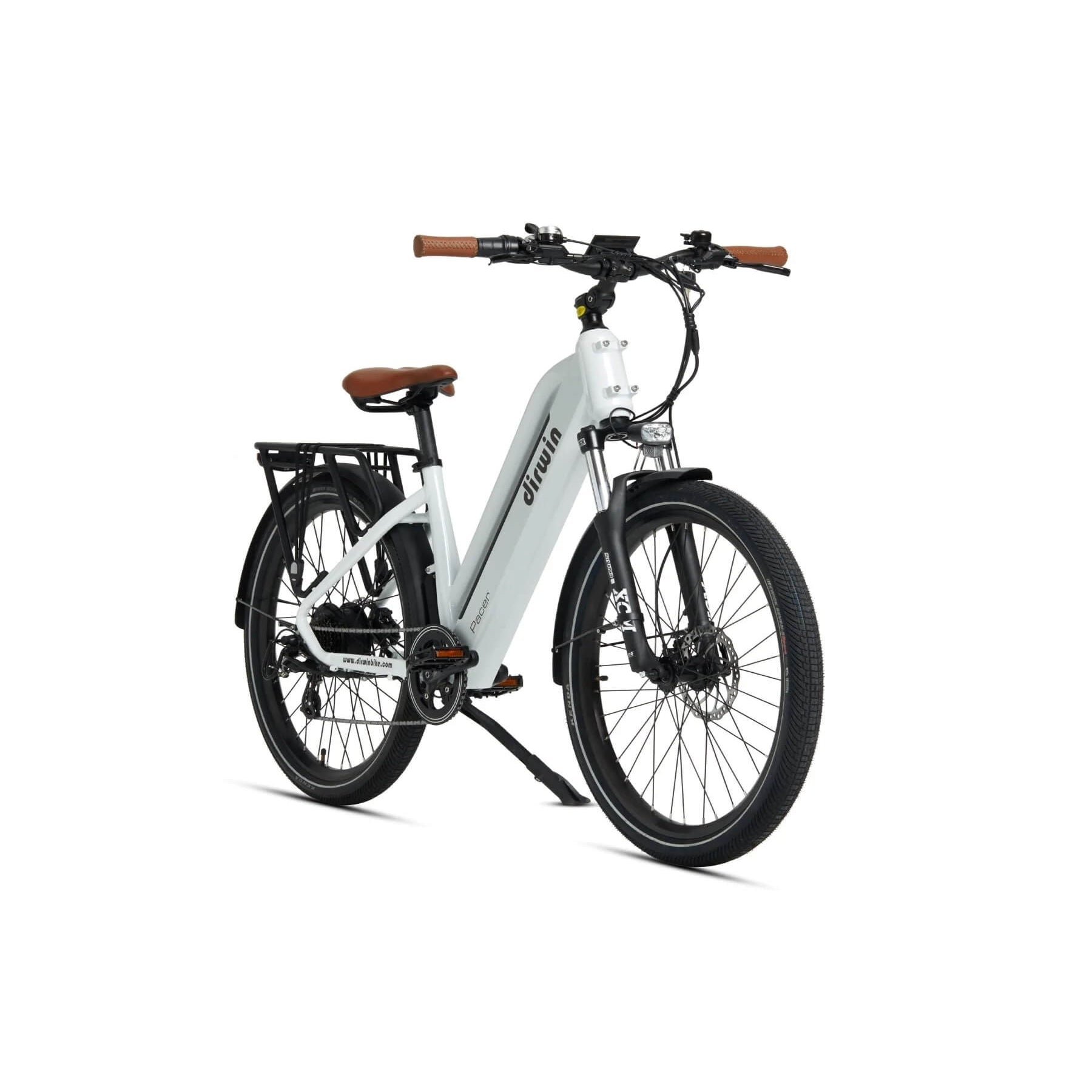

Dirwin Pacer Lite 500W Commuter Electric Bike

⚡500W (1000W Peak) Rear Hub Bafang Motor w/ 65 NM

⚡48V/13Ah Downtube Integrated Lithium-ion Removable Battery

⚡7-Speed Shimano Altus Derailleur & 5-Level Pedal Assist System w/ Right Side Half Twist Throttle





Dirwin Pacer Ebike Description

Powerful, efficient, and innovative, the Dirwin Pacer can do it all! It's a versatile 2.2 inch tire touring/all-road electric bike built for street riding, recreational riding, commuting, and even gravel and hard-packed dirt trails.

With a fully integrated battery, lights, color LCD display, and a front suspension fork, the Pacer provides ultimate comfort and safety no matter what time of day or terrain you’re riding.

It features a step-thru frame for easy mounting and dismounting, and the 500W/1000W peak power system offers both a flexible 5-level pedal assist and throttle mode. With the Pacer’s Shimano 7-speed gear shifter and lightweight frame, the Pacer provides the versatility to cruise with power or get in a cycling workout in manual mode.

Bafang Motor

The powerful 500W Bafang motor (with 1000W peak) will provide you with a smooth pedal assist experience that feels natural on any flat road or hill. With a top speed of up to 28mph, the Pacer can be used as a Class 1, 2, or 3 electric bike.



Lasting Battery

Our fully integrated battery, combined with our best-in-class controller, features Dirwin’s “power smart” technology. This enables the Pacer to achieve the highest power output while consuming the least amount of electricity so that you can get up to 55 miles on a single charge!



Color Screen Display

The Pacer’s bright 3.5” color LCD display offers crystal clear visibility in any weather and it features all the information you need such as speed, odometer, battery level, and more.



Bright 48V Led Headlight

Rain or shine the powerful and bright front headlight keeps you on the right track in the most challenging conditions.



27.5" x 2.2" Kenda Tire

With 2.2" Kenda tires, you'll be able to maneuver your way through narrow city streets or rough country roads with ease.

Adjustable Handlebar With Easy-To-Use Controls

The handlebar features all of the controls for the gear and pedal assistance system (PAS) that you need. Including the assistance level control, display, half-twist throttle, and Shimano gear shift lever. It's even fitted with a sleek bike bell!

Shimano 7-Speed Gear System

Dirwin uses only the highest quality Shimano gear system that gives you the reliability and adjustability that you need. In combination with the motor, you can easily set how fast or heavy you want to pedal.



Electric Rear Brake Light

Safety first! The rear brake light is pressure activated and sports a 48V LED light that will keep you visible in the dark and in bad weather.





Comfortable Saddle

An easily adjustable saddle combined with the adjustable handlebar will make sure that anyone can find a safe and comfortable riding position.



High-Quality Crankset

The durable aluminum crankset is built and adjusted perfectly with the Shimano gearset to protect the chain and decrease friction thus delivering the optimal pedaling experience.





Hydraulic Brakes

In tough terrain and fast speeds, you need to be able to trust your brakes. That's why Dirwin has fitted the Pacer with powerful 180mm hydraulic brakes that provide you with great stopping power whenever you need it.





Dirwin Pacer Ebike Specifications

• Motor: 500W (1000W Peak) Rear Hub Bafang Motor
• Battery: 48V/13Ah Downtube Integrated Lithium-Ion Removable Battery
• Charger: US-Standard 2A Smart Charger
• Charge Time: 5-8 Hours
• Gears: 7-Speed Shimano Altus Derailleur & 5-Level Pedal Assist System w/ Right Side Half Twist Throttle
• Frame: A6061 Aluminum Alloy Frame
• Display: 3.5" TFT LCD Color Display
• Controller: 48V/20A
• Suspension: Suntour XCM 27.5" Suspension Fork
• Brakes: Lagon Hydraulic Disc Brakes w/ 180mm Rotors
• Tires: 27.5" x 2.2" Kenda Tires
• Saddle: HQ-Comfort Saddle
• Freewheel: Shimano 7-Speed
• Chain Ring: 46T
• Seat Post: Φ30.4 x 350L
• Seat Post Clamp: Φ35.0
• Accessories: LED Headlight, Tail Light, Fenders, Rear Rack
• Max Speed: 28 mph
• Recommended Rider Height: 5'-0" - 6'-3"
• Bike Weight: 66 Lbs
• Max Load Capacity: 300 Lbs
• Assembly: The Pacer comes mostly assembled. Final assembly includes attachment of the handlebar, pedals, front wheel, light and fender. Please see the assembly video below.
• Tools Required: Multi-Purpose Tool, Quick Release Skewer (Included)

• Shipping: Free shipping to the lower 48. We cannot ship this brand to Alaska or Hawaii at this time. Shipping to Canada is $200/bike.

Pacer Geometry

A. Total Length: 74"

B. Handle Bar Height: 45"

C. Wheelbase: 45"

D. Minimum Seat Height: 27"

E. Maximum Seat Height: 35"

F. Chain Stay Length: 19"

G. Standover Height: 23"

H. Top Tube Length: 23"

I. Wheel Diameter: 27.5"

J. Head Tube Length: 6.8"

K. Handle Bar Length: 26.8"

L. Rear Rack Height: 30"



Dirwin Pacer Assembly Video

Have a look at this assembly video of the Dirwin Pacer for step-by-step instructions on how to assemble your new bike.
