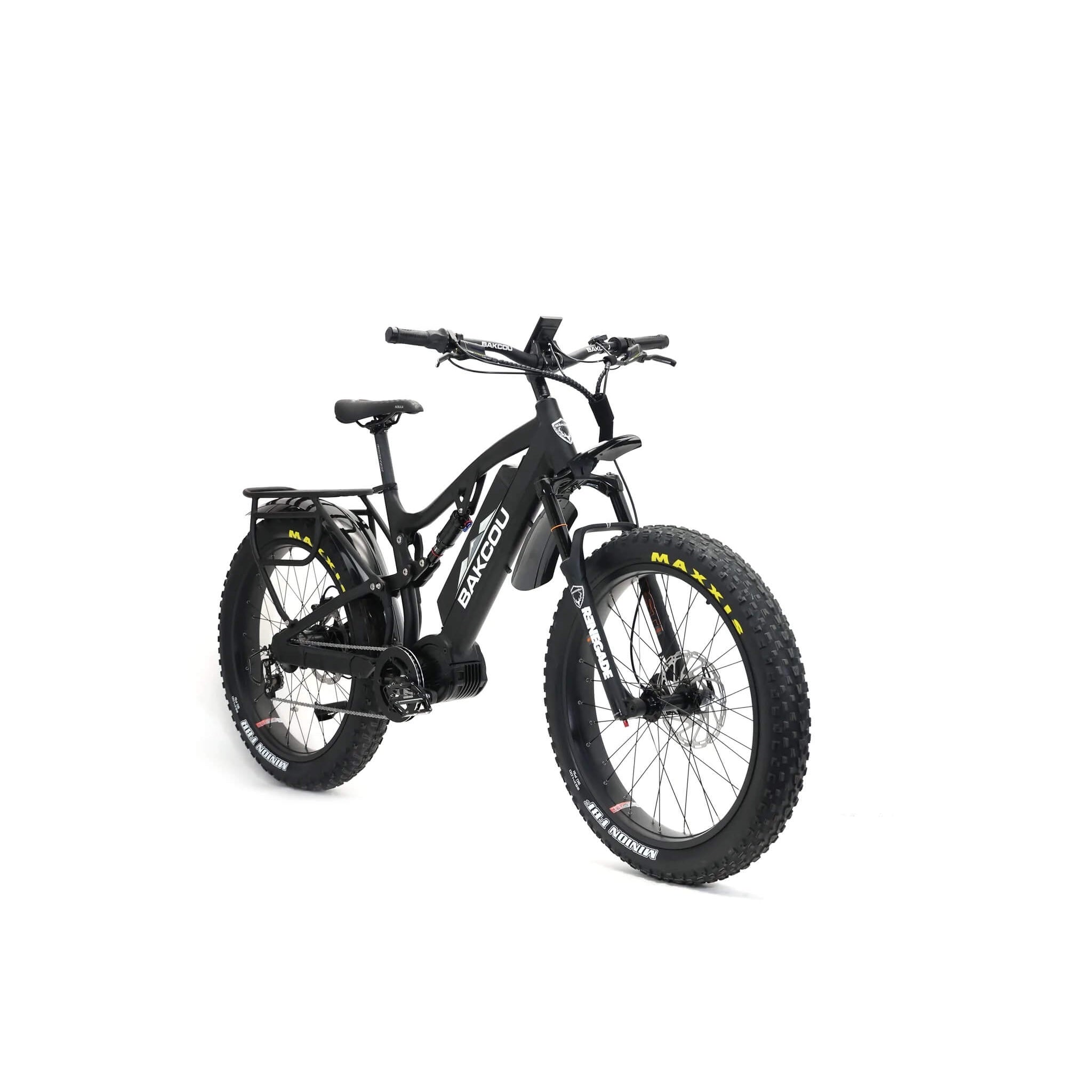

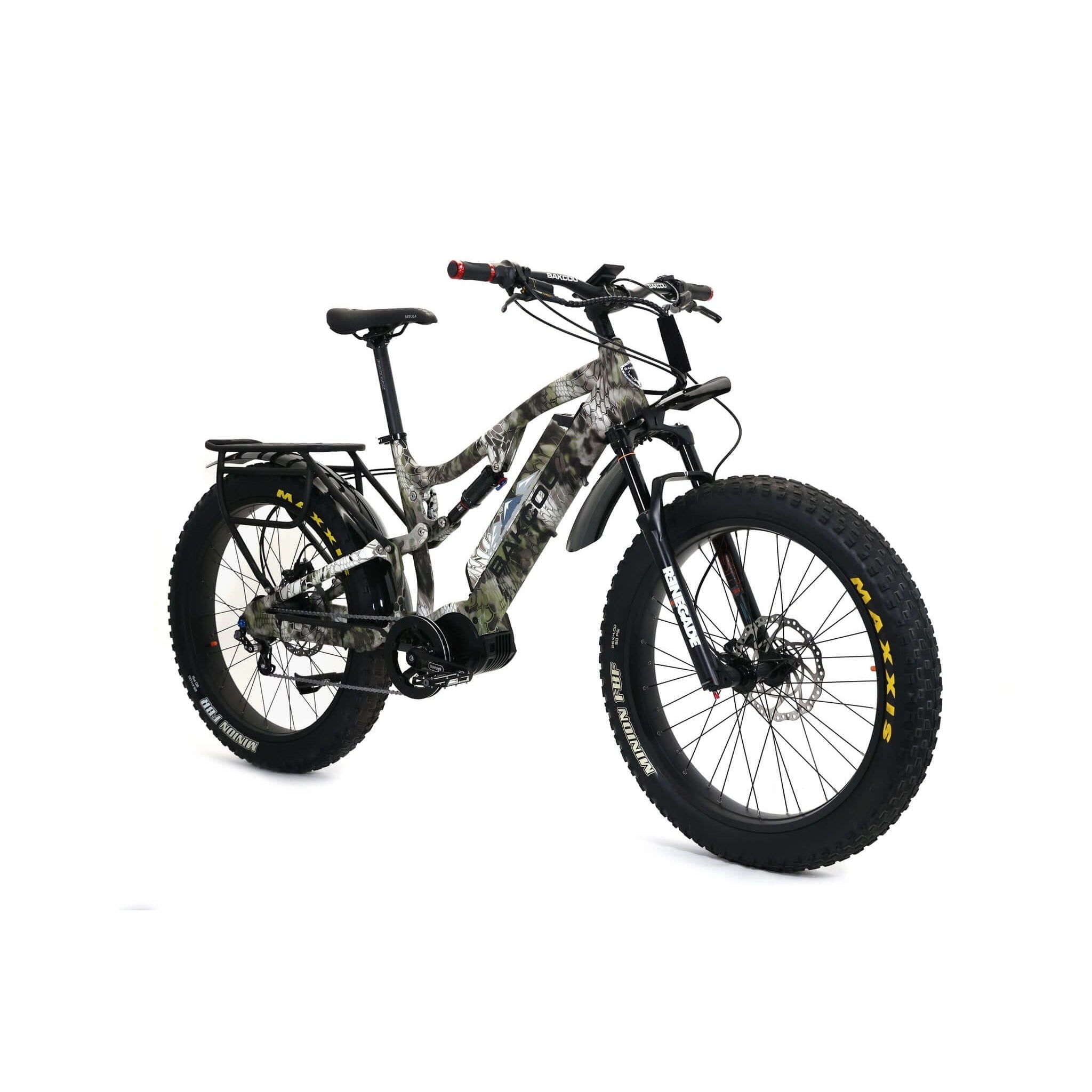

Bakcou Storm Jäger 1000W Full-Suspension IGH Fat Tire Electric Bike

Bakcou Storm Jäger Description

The Bakcou Storm Jäger is unlike other fat tire electric mountain bikes. Not only does it feature a 1000W (nominal output) mid-drive motor, it has an internally-geared hub (IGH) drivetrain.

Jäger, the German word for hunter, pays homage to the German-engineered Rohloff hub that this version of our Storm is built around. The Rohloff Speed Hub is an internal gear hub, meaning this bike doesn't have a traditional cassette and derailleur system. This 14-speed hub is a feat of engineering, the huge gear ratio allows for high speeds and the ability to climb like a beast.

Internal gear hubs require less maintenance than traditional derailleur systems. Because the majority of the mechanisms are housed, you have peace of mind when you are deep in the backcountry.

We combined the incredible performance of an Ultra motor, with a full suspension frame, and the top of the line internal gear Rohloff hub to create the best-in-class Storm Jäger.

If it’s gnarly, rugged, steep, or technical then look no further than the full-suspension Storm G2. This bike will chew up those rocky climbs and steep descents with ease while still allowing you to pull that trailer full of gear to and from that tree stand, blind or favorite hunting spot.

The full-suspension Storm G2 was designed and engineered around the unparalleled power and performance of Bafang's Ultra mid-drive motor. The Ultra motor is widely recognized as the “diesel engine” of mid-drive motors! For this reason, the rear suspension of the Storm G2 had to be just as heavy-duty, in order to handle all of this torque and power without causing the frame to flex under intense loads.

The all-metal, heavy-duty gearing, of the Ultra motor, combined with the intelligence of an integrated torque sensor, make the Ultra motor the most capable, durable, and efficient motor on the planet and now there is a full-suspension bike to handle it.

The Ultra motor is also referred to as a “smart motor”. The speed, cadence, shift, brake, and torque sensors provide continuous feedback from the rider to the motor. This allows the motor to deliver exactly what you ask. What you get, is a very natural feeling ride, even while providing a tremendous amount of torque and power output.

Storm Jäger Specifications

• Motor: 1000W Nominal (1500W Peak) Output Bafang Ultra Torque-Sensing Mid-Drive Motor w/ 750W Operation Available on Display
• Battery: Extended Range 48V/19.2Ah Downtube-Integrated Battery w/ Premium Cells (48V/25Ah Optional)
• Performance: 160NM of Torque/ 1500 Peak Wattage Output
• Display: Bafang DP C18.UART Full Color LCD
• Brakes: Powerful Tektro HD E750 Quad Piston Hydraulic, 203mm front & rear
• Suspension: RST Renegade Fork (120mm of travel) & RockShox Monarch rear
• Frame: 17" | 19" High-Grade Aluminum Alloy 6061 Frame
• Throttle: Removable Left Thumb Throttle
• Wheels: Quick Release Front Hub
• Tires: Unparalleled Traction and Control Maxxis Minion 26” X 4.0 Fat Tires
• Gearing: Rohloff E-14 (500/14) IGH Speed Hub w/ Carbon Belt Drive
• Steering: Wide 740mm Handlebars for Greater Stability
• Weight: 72 Lbs.
• Load Capacity: 300 Lbs.
• Recommended Minimum Rider Height: 17" Frame - 5'-7"+ | 19" Frame 5'-10"+
• Box Dimensions & Weight: 63" x 12" x 35" (115 Lbs.)
• Stand Over Height: 30.5"
• Grips: Locking Ergonomic Handlebar Grips
• Saddle: SR Sport Saddle
• Pedals: Aggressive Skid-Proof Wide Stance Pedals
• Assembly: The Storm Jäger comes mostly assembled. Final assembly includes attachment of the handlebar, pedals, front wheel and fender. Please see the assembly pdf and video instructions below.
• Tools Required: Bakcou Multi-tool, Medium Grade Loctite (Included)
• Warranty: 1 Year

• Shipping: Free shipping to the lower 48. For shipments to Alaska, Hawaii and Canada, Shipping is $500 for orders under $6000 and $800 for orders $6000 and above.

Storm Jäger Accessories

Please consider the following accessories for your new Bakcou eBikes Storm Jäger, and add them to your cart before checkout:

• BCB-K20 Dual Mountain Bike Headlight
• BackCountry Solar eBike Charging Panel Array

User Manuals

• Bakcou eBikes Electric Mountain Bike Owners Manual
• Bakcou eBikes Storm e-MTB Bafang LCD Display Manual
• Bakcou eBike Storm Jäger Assembly Instructions

Storm & Storm Jäger Assembly Video

In this video, Cloe with Bakcou shows us how to set up and use the display on the Storm and Storm Jäger electric bikes. She goes over the information on the main screen, how to navigate the menus, and how to adjust the settings on the bike.

Storm & Storm Jäger Display instruction Video

Here is Cloe from Bakcou providing a complete overview of the functions and operations of the Bafang LCD color displays which come with the Mule and Storm models.
