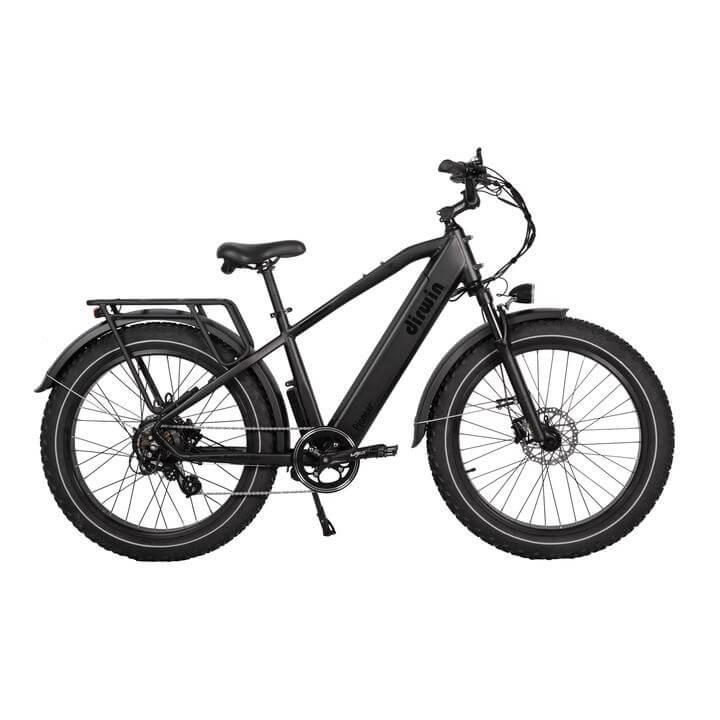

Dirwin Pioneer 750W Fat Tire Electric Bike w/ Twist Throttle

You Save % ()
ADD FRONT BASKET

Free Shipping to US Lower 48

Daily Inventory Updates

Need Help? Call 888-883-3350

Product Overview

750W Rear Hub Dirwin Motor w/ 80Nm of Torque

48V/15Ah Downtube Integrated LG or BAK Lithium-ion Removable Battery

26" x 4" Kenda Fat Tires

dirwin bike dealer authorized logo for really good ebikes



Dirwin Pioneer Ebike Description

Are you looking for a powerful off-road electric mountain? The Dirwin Pioneer is ready to tackle any rough conditions, from rugged off-trails to gravel paths. It's loaded with a 750W rear hub motor that outputs tons of torque, and the rigid 6061 aluminum alloy frame will transfer that power through the stiff frame to the ground surface.








High-Performance Motor

Sand, gravel, snow... conquer all-terrains with Dirwin Pioneer's high-performance 750W rear-drive motor. It delivers up to 80Nm of torque, which will give you excellent hill-climbing ability. You can ride the Pioneer like a conventional mountain bike, using the 7-speed Shimano drivetrain. But when you need a boost, just turn on the 5-level pedal assist system (PAS) or give the throttle a push, and you'll be flying.





dirwin pioneer 750w rear hub motor






Long-Lasting Battery

Dirwin Pioneer is equipped with a downtube-integrated high-capacity 48V/15Ah lithium battery with LG or BAK cells, giving you an extended range per charge. The battery locks into the frame and can be removed for remote charging (and to protect it against extreme weather conditions).




dirwin pioneer 48V/15Ahframe mounted battery






Color Screen Display

The Pioneer comes with a clear 3.5” TFT display, which has great visibility in all conditions. It features all the information you need to track your ride, including speed, odometer, battery charge level, and more.




dirwin pioneer tft display






Bright 48V LED Headlight

The Luminus Flux headlight has an output of 1100 Lumens and an effective range up to 80 meters. This powerful and bright headlight will keep the road illuminated and make you visible to approaching traffic, cyclists and pedestrians.




Luminus Flux headlight






Hydraulic Brakes

In tough terrain and fast speeds, you need to be able to trust the braking ability of your bike. That is why the Pioneer is fitted with powerful 180mm hydraulic disc brakes. These provide exceptional precision and stopping power.




dirwin pioneer hydraulic disc brakes




Adjustable Handlebar With Easy To Use Controls

The handlebar features all the controls for the gears and power assistance system (PAS) that you need. This includes the assistance level controls, display, half-twist throttle, and Shimano gear shift lever. It's even fitted with a nice bell!




dirwin pioneer easy to use handlebar controls




Shimano 7-Speed Gear System

Dirwinuses only the highest Shimano gears systems that give you the reliability and adjustability that you need. In combination with the motor, you can easily set how fast or heavy you want to pedal.




dirwin pioneer 7-speed shimano gear system handlebar controls





Comfortable Saddle

An easily adjustable saddle combined with the adjustable handlebar will make sure that anyone can find a safe and comfortable riding position.




dirwin pioneer saddle




Heavy-Duty 26" x 4" Fat Tires

Fat tires provide a wide area that maintains contact with the ground surface, thereby increasing traction and stability when riding over uneven surfaces. The 26" x 4" fat tires on the Pioneer are highly durable and their knobby treads are designed to operate in extreme riding conditions.




dirwin pioneer 26" x 4" kenda fat tire






Electric Rear Light

Safety first. Not only the headlight but the rear too has a powered 48V LED light that will keep you visible in the dark and bad weather.




dirwin pioneer electric rear light





High-Quality Crankset

The durable aluminum crankset is built and adjusted perfectly with the Shimano gear set to protect the chain and decrease friction thus delivering an optimal pedaling experience.




dirwin pioneer crankset












Dirwin Pioneer Ebike Specification

  • Motor: 750W Rear Hub Dirwin Motor w/ 80Nm of Torque
  • Battery: 48V/15Ah Downtube Integrated LG or BAK Lithium-ion Removable Battery
  • Charger: US-Standard 2A Smart Charger
  • Charge Time: 6-9 Hours
  • Gears: 7-Speed Shimano Altus Derailleur & 5-Level Pedal Assist System w/ Right Side Half Twist Throttle
  • Frame: A6061 Aluminum Alloy Frame
  • Display: 3.5" TFT Color Display
  • Controller: 48V/22A
  • Suspension: Hydraulic Fork w/ Lockout
  • Brakes: Lagon Hydraulic Disc Brakes w/ 180mm Rotors
  • Tires: 26" x 4" Heavy-Duty Kenda Fat Tires
  • Saddle: HQ-Comfort Saddle
  • Accessories: LED Headlight, Tail Light, Fenders, Rear Rack, Bell & Optional Front Basket
  • Recommended Rider Height: 5'-3" to 6'-4"
  • Bike Weight: 74.9 Lbs.
  • Max Load Capacity: 350 Lbs.
  • Box Dimensions & Weight: 62.5" x 11.8" x 34.2" (97 Lbs.)
  • Assembly: The Pioneer comes mostly assembled. Final assembly includes attachment of the handlebar, pedals, front wheel, light, fender and bell. Please see the assembly video below.
  • Tools Required: Multi-Purpose Tool, Quick Release Skewer (Included)
  • Shipping: Free shipping to the lower 48. We cannot ship this brand to Alaska or Hawaii at this time. Shipping to Canada is $200/bike.

Dirwin Pioneer Ebike Geometry

Dirwin Pioneer Ebike SIzes diagram

A. Total Length: 74.8"

B. handlebar Height: 45.5"

C. Wheelbase: 45"

D. Minimum Seat Height: 30"

E. Maximum Seat height: 35.5"

F. Chain Stay Length: 20"

G. Standover Height: 31"

H. Top Tube Length: 23"

I. Wheel Diameter: 29"

J. Head Tube Length: 6"

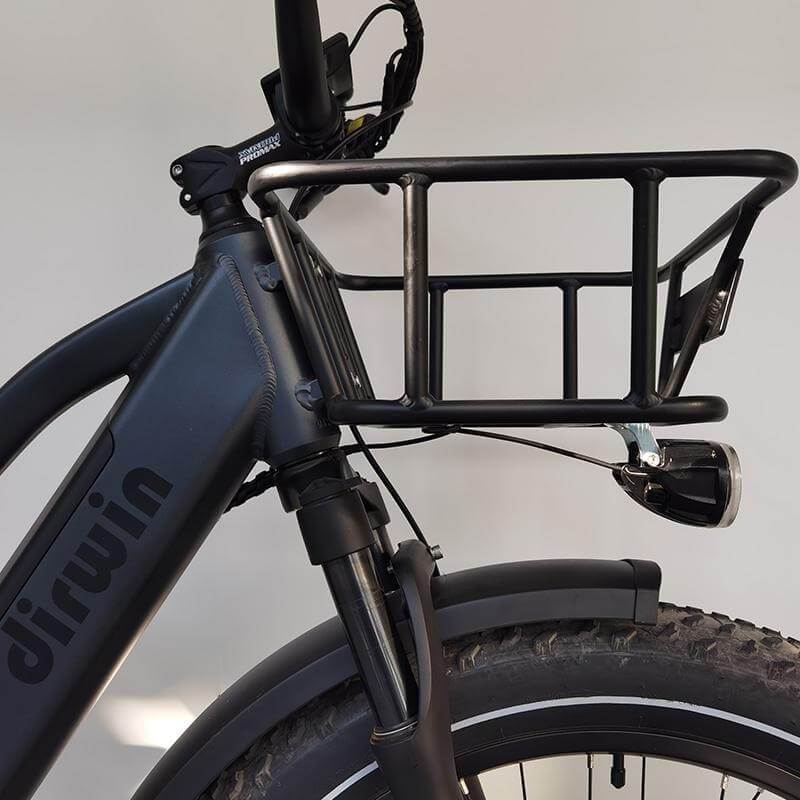

Dirwin Pioneer Optional Front Basket Specifications

Material: Aluminum
Dimensions: L 14.3" x W 12.2" x H 6.0"
Applicable: Seeker/Pioneer
Maxload: 35 Lbs
Weight: 4.4 Lbs



Dirwin Pioneer Owner's Manual



Dirwin Pioneer Overview Video

Dirwin Pioneer Assembly Instruction Video
