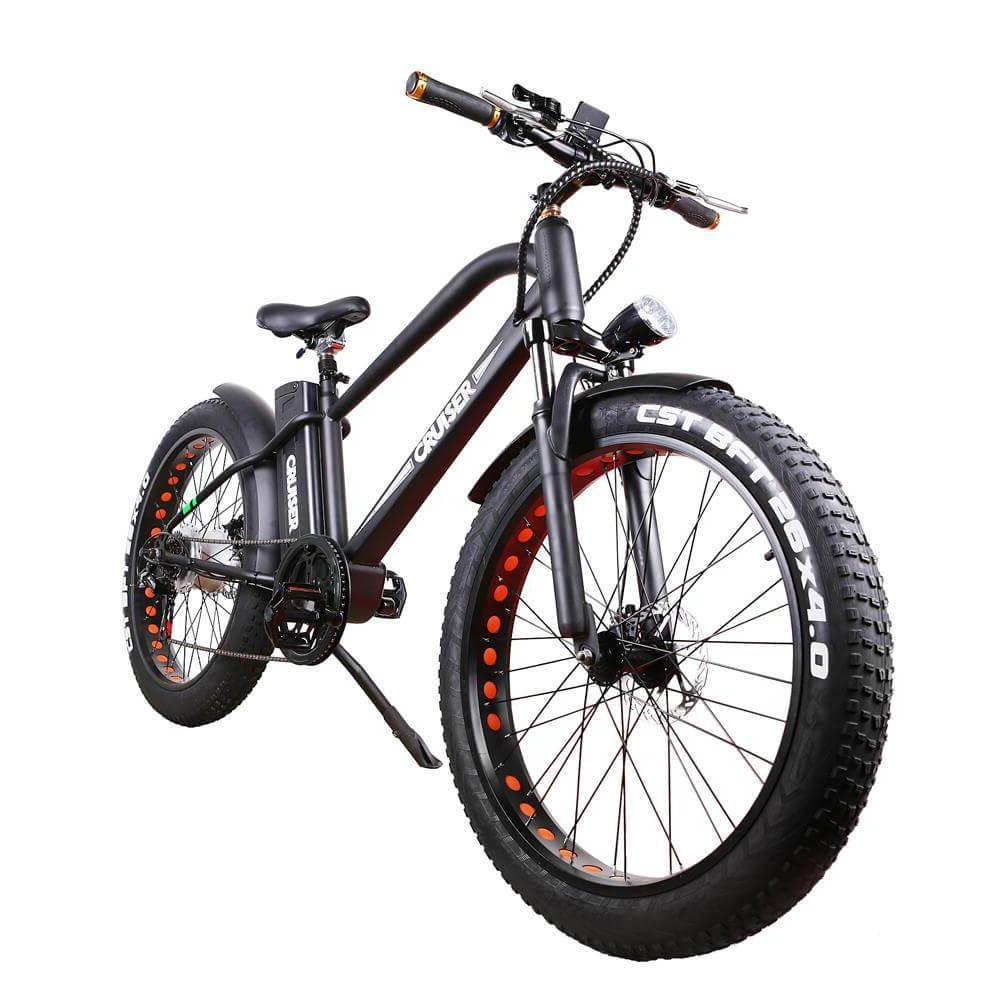

Nakto Fat Tire Super Cruiser 750W Electric Mountain Bike

⚡500W Rear Hub Brushless Motor w/ 52Nm of Torque

⚡48V/12Ah Seat-Tube Mounted Removable Battery w/ Lithium-Ion Tianneng Cells

⚡Kenda or CST 20” x 4” Fat Tires Mounted on Aluminum Alloy Spoked Rims

Nakto Folding OX Description

The Nakto Folding OX has a unique low-step folding frame with high-rise cruiser handlebars, 20" x 4" fat tires, a 6-speed Shimano drivetrain, and Shimano mechanical disc brakes. Together, these design features and components make the Nakto Folding OX the perfect bike for students, commuters, RV enthusiasts, and anyone who loves off-road beach and trail riding.

The Folding OX is outfitted with a powerful 500W (nominal output) rear hub motor, which can propel the bike up to 20 mph. You can ride faster of course, but the Folding OX can be ridden anywhere a conventional bike is allowed.

The motor gets its charge from a 48V/12Ah lithium-ion battery, which is mounted behind the seat tube for easy access. The battery can be charged on or off the bike in about 6 hours and will yield an average range of 29 miles per charge based on our Ebike Range Calculator. It has built-in overcharge protection and excellent thermal control.

The Folding OX really excels in off-road settings, where the fat tires and high-powered motor show their stuff. The 4" fat tires have more surface area contact with the ground, which provides more traction and stability, especially on unstable ground. These tires have a puncture-resistant casing and are mounted on aluminum rims with cutouts to reduce weight. Fenders are designed to prevent mud and other debris from being thrown onto the rider.

Folding OX Specifications

• Frame: Nakto Step-Thru Folding Steel Frame
• Drivetrain: 6-Speed Shimano Tourney w/ Trigger Shifter
• Tires: Kenda or CST 20” x 4” Fat Tires Mounted on Aluminum Alloy Spoked Rims w/ Cutouts
• Brakes: Front and Rear Shimano Mechanical Disc Brakes
• Motor: 500W Rear Hub Brushless Motor w/ 52Nm of Torque
• Battery: 48V/12Ah Seat-Tube Mounted Removable Battery w/ Lithium-Ion Tianneng Cells
• Charge Time: 4-6 Hours
• Display: 861 LCD Display (Battery Life, Speed, PAS Level, Distance)
• Drive Mode: 5-Level Pedal Assist System & Right Side Full Twist Throttle
• Suspension: Trama 82B Sprung Fork w/ 60mm of Travel
• Safety Equipment: LED Front Light
• Accessories: Battery Charger, Tool Kit, Owner’s Manual, Rear Rack
• Rider Height: 5'-1" - 5'-9"
• Bike Dimensions: 64” x 44”
• Wheelbase: 43.3”
• Seat Height: 31.8” - 38.5”
• Handlebar Height: 43.3”
• Bike Weight: 70 Lbs.
• Weight Capacity: 250 Lbs.
• Box Dimensions & Weight: 55.5" x 12.5" x 28.3" (75 Lbs.)
• Assembly: The Folding OX comes mostly assembled. Final assembly includes attachment of the front wheel, handlebars, axle caps, seat, pedals, fender and headlight. Please see the assembly video and PDF instructions below.
• Tools Required: Phillips/Slotted 2 in 1 Screwdriver, 13mm/15mm Double Open-end Wrench, 5mm Allen Wrench (Included). Scissors & Bike Pump (NOT Included)

• Shipping: Free shipping to the lower 48. This brand is unable to ship to Alaska & Hawaii at this time. To ship to Canada,please send us your shipping address and the products you want, and we will find the best rate available.

Electric Bike Report Reviews Nakto OX

The independent ebike reviewers at Electric Bike Report have prepared a comprehensive review of the Nakto OX, and it seems they were quite impressed. You can read their full review here, and watch the video review below. They say of the OX:

Nakto Ebike User Manual (All Models)

Download the Nakto Ebike User Manual to learn how to set up, operate and troubleshoot your new Nakto ebike.

Nakto LCD Display Manuals

LCD Display Manual for Nakto Cruiser | Santa Monica | Folding OX

LCD Display Manual for Nakto Super Cruiser | Ranger | Discovery

LCD Display Manual for Nakto Elegance

Nakto Folding OX Assembly Video

Nakto Folding OX PDF Assembly Instructions
