Nakto Ranger 350W Electric Mountain Bike w/ Thumb Throttle

FREE Shipping to US Lower 48
DAILY Inventory Updates
NEED HELP? Call 888-883-3350

350W Rear Hub Motor Brushless Motor w/ 50Nm of Torque

36V/10Ah Seat-Tube Mounted Removable Battery w/ Lithium-Ion Cells

CST Jackrabbit 26” x 1.75” Tires Mounted on Carbon Steel Spoked Rims

nakto dealer authorized logo for really good ebikes

Nakto Ranger Description

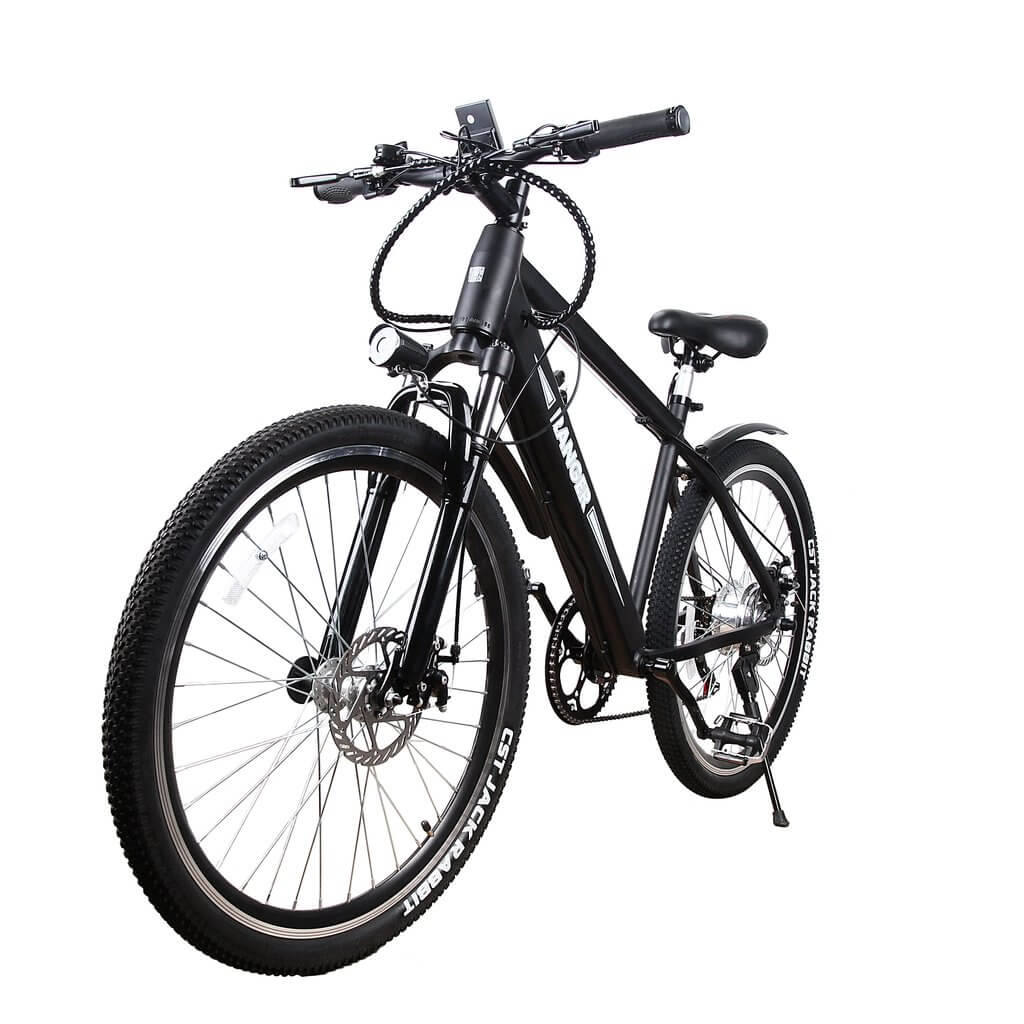

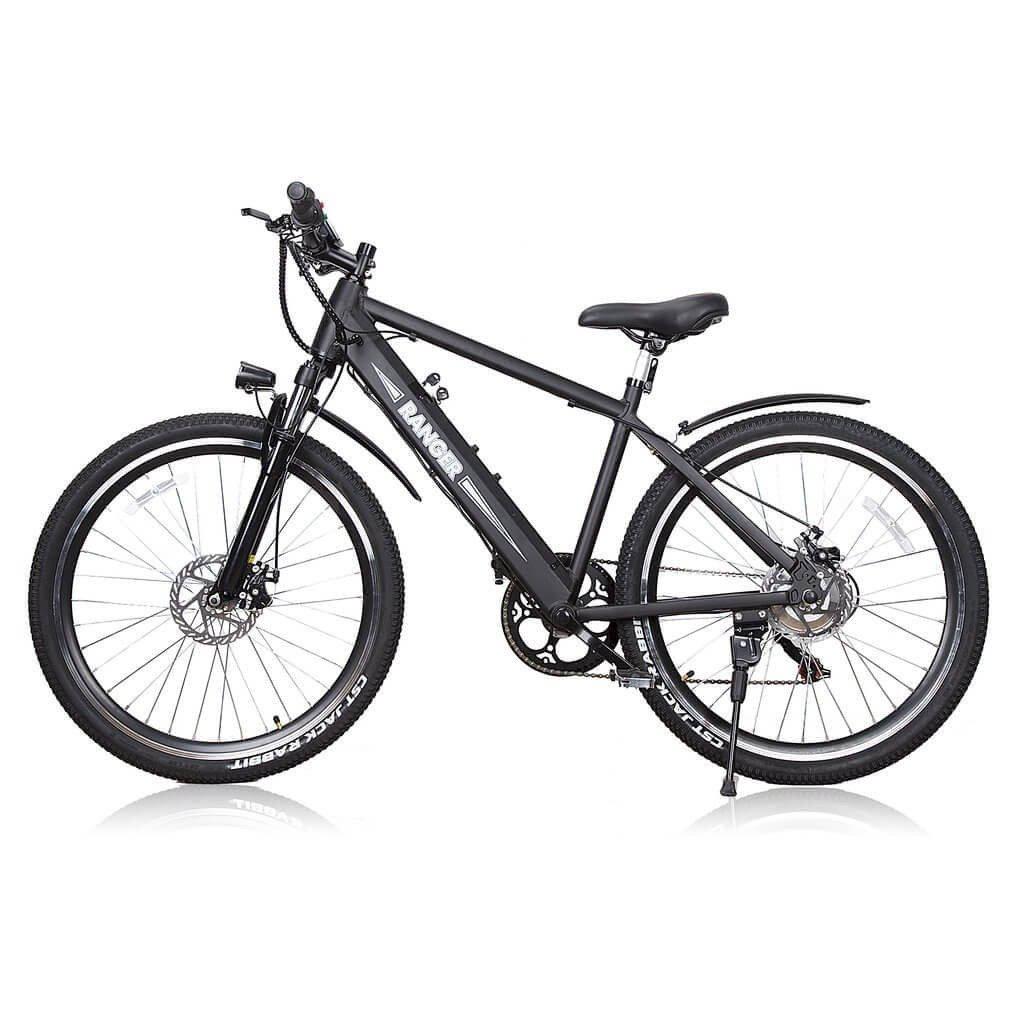

The Nakto Ranger is an affordable electric mountain bike, which also works great for city riding. It features a classic diamond frame with a sloped top tube, a front suspension fork, 26" x 1.75" tires, and straight handlebars for a slightly aggressive riding style.

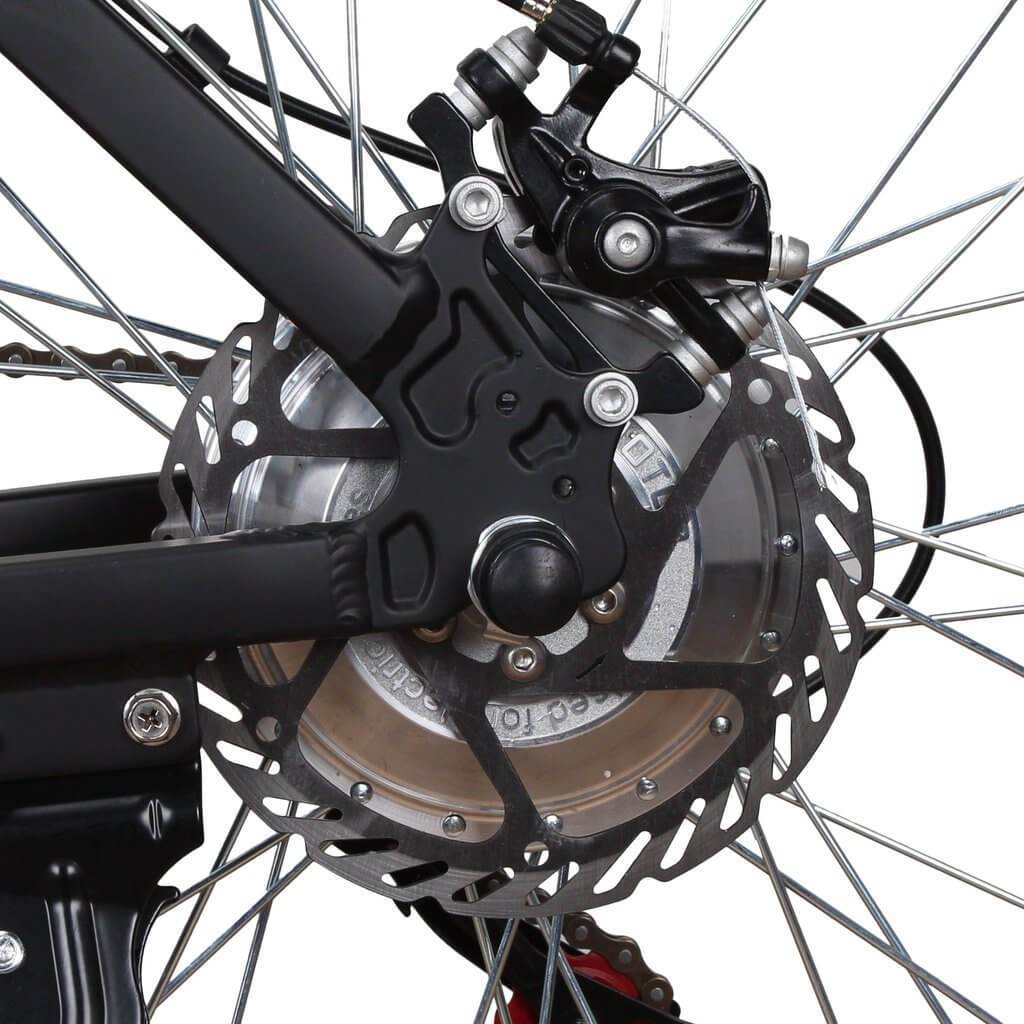

The Ranger is outfitted with a robust 350W (nominal) rear hub motor, which can output up to 50 Newton Meters (Nm) of torque. It's an excellent hill climber and will get you where you're going without breaking a sweat.

The 350W motor is powered by a 36V/10Ah battery, which is integrated into the downtube for greater aerodynamics. The battery has a range of about 20 miles or more per charge. It is easily removed for remote charging.


girl outside with nakto ranger ebike

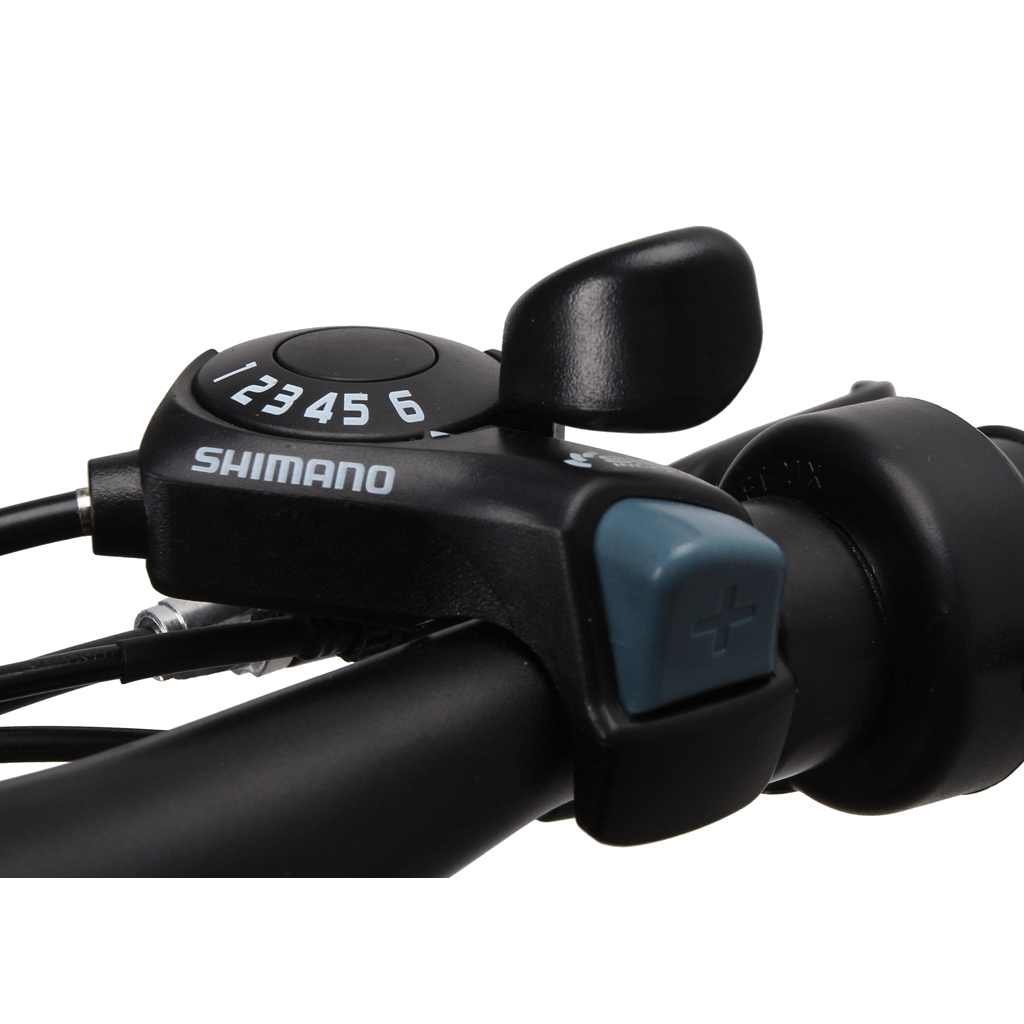

The Ranger Electric Mountain Bike can be ridden like a conventional bike, using the 6-speed Shimano derailleur. The trigger shifter clicks through the gears with ease, and the chain smoothly transitions from one cog to the next.

When you're ready for a boost, get ready, because the Ranger has a very powerful motor. You can turn on the motor and use the 5-level Pedal Assist System (PAS) to help you while pedaling, while at the same time shifting gears to find the sweet spot for every riding condition. And if you want to ride without pedaling, just give the throttle a push, and off you go!

Nakto Ranger Specifications

  • Frame: Nakto Aluminum Alloy Frame
  • Drivetrain: 6-Speed MF-TZ500-6 Shimano Derailleur
  • Tires: CST Jackrabbit 26” x 1.75” Tires Mounted on Carbon Steel Spoked Rims

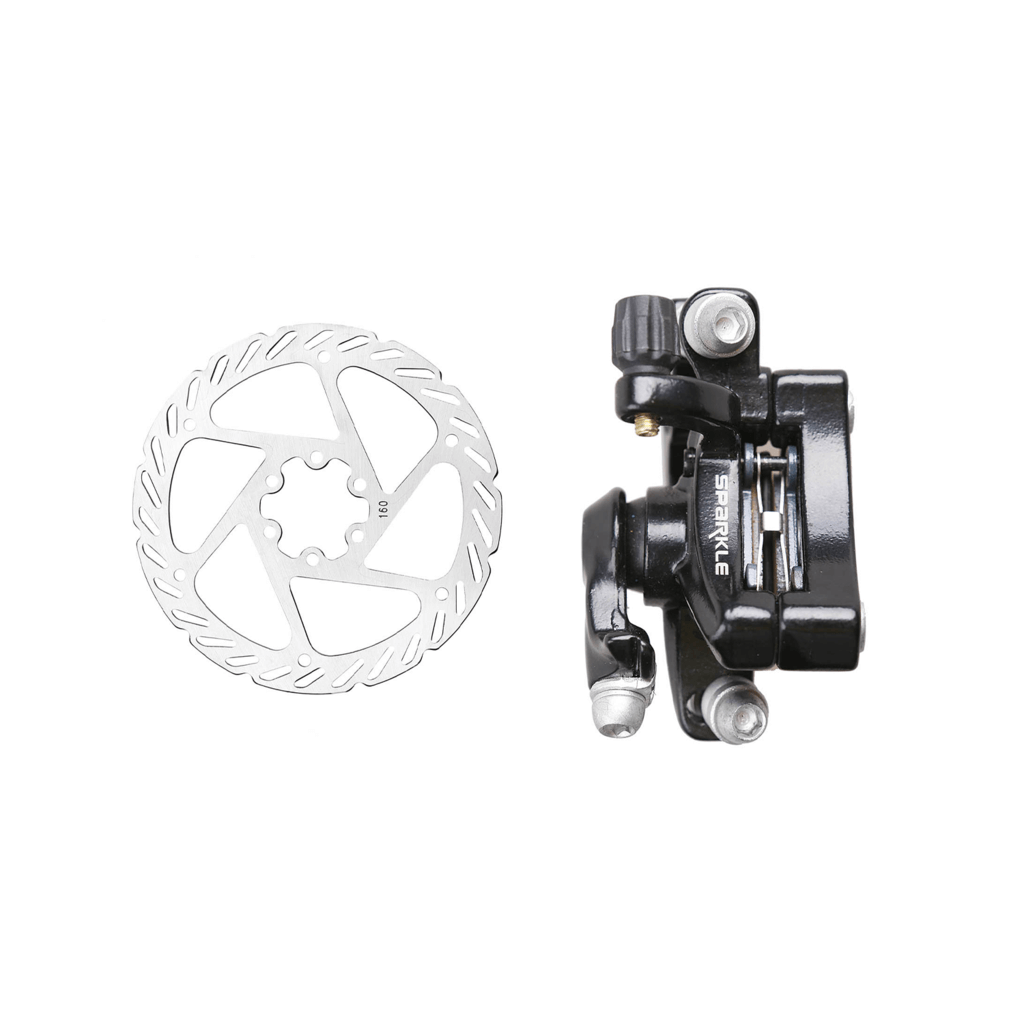

  • Brakes: Front and Rear Shimano Mechanical Disc Brakes
  • Motor: 350W Rear Hub Motor Brushless Motor w/ 50Nm of Torque
  • Battery: 36V/10Ah Seat-Tube Mounted Removable Battery w/ Lithium-Ion Tianneng Cells
  • Charge Time: 4-6 Hours

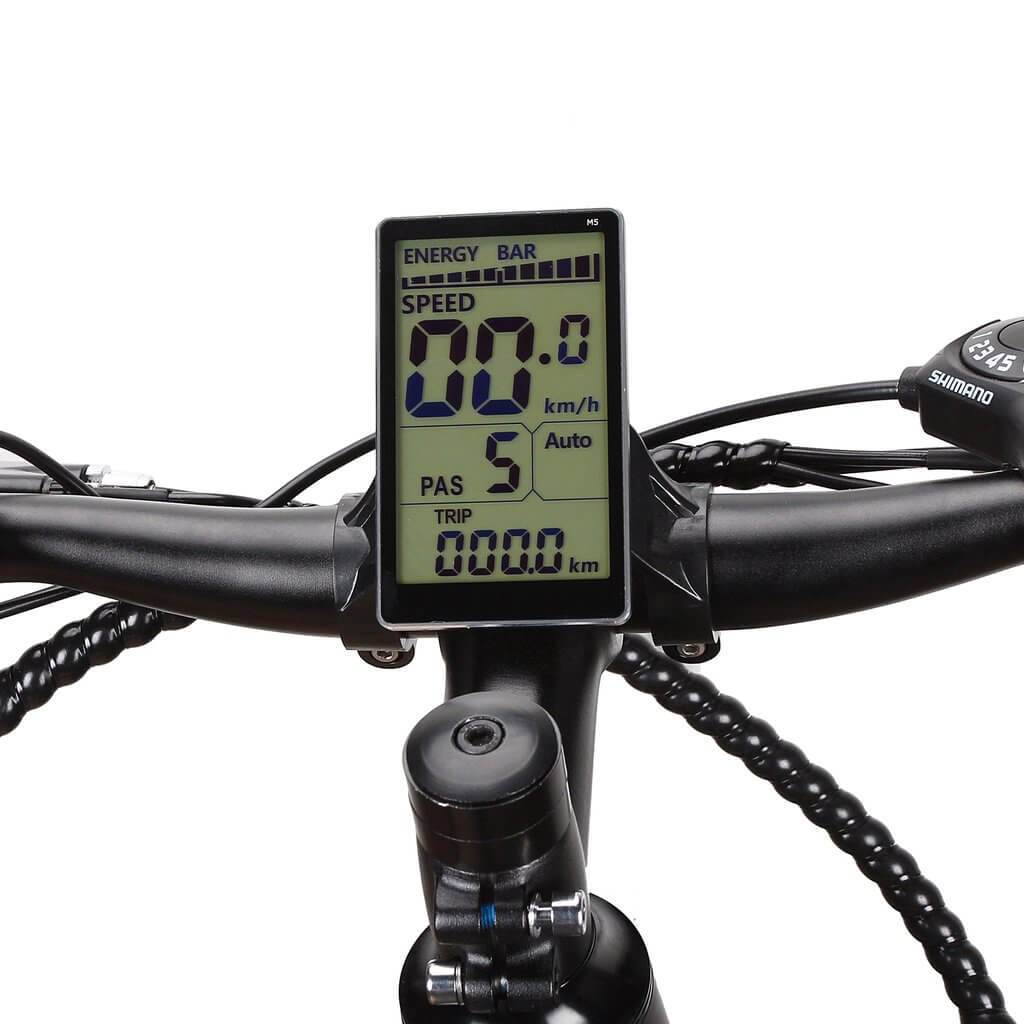

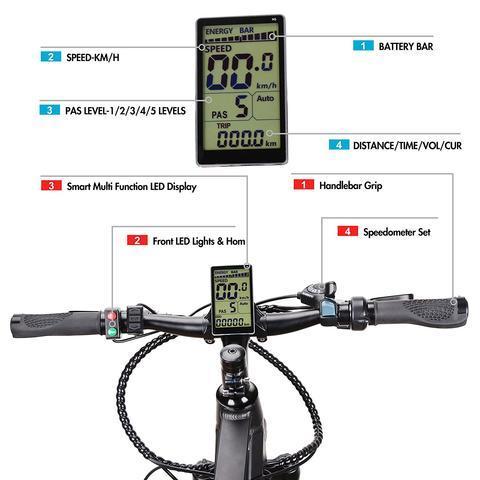

  • LCD Display: M5 LCD Display w/ Speed, Max. Speed, Average Speed, Odometer, Trip Meter, Range, Clock, Mode, Watts, Amps, Battery % and Assist Level Readouts

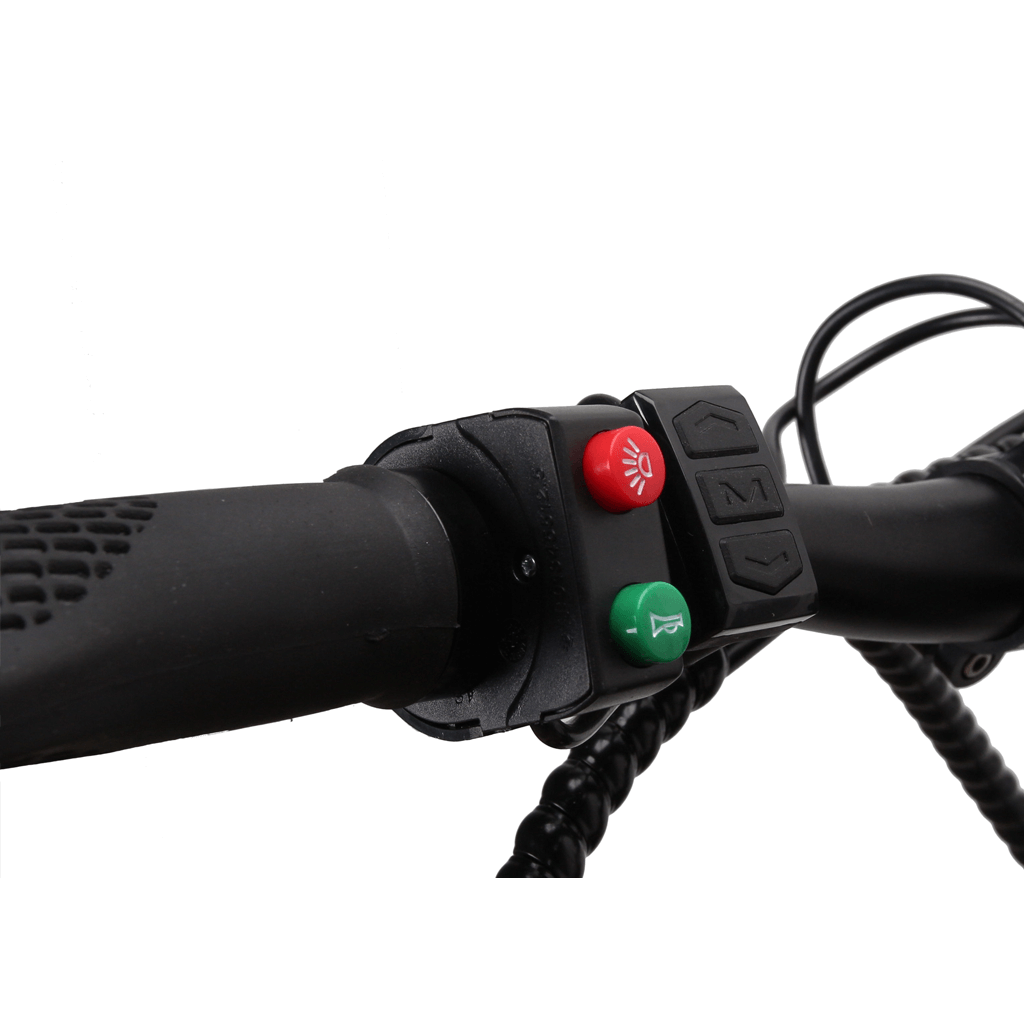

  • Drive Mode: 5-Level Pedal Assist System & Thumb Throttle
  • Suspension: Trama 82B Sprung Suspension Fork w/ 60mm of Travel
  • Safety Equipment: LED Front Light, Reflector

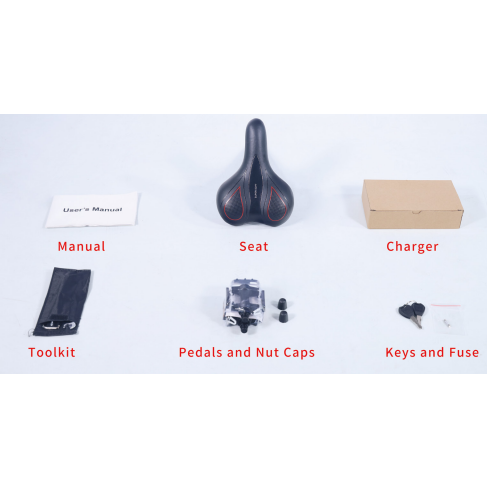

  • Accessories: Battery Charger, Tool Kit, Owner’s Manual

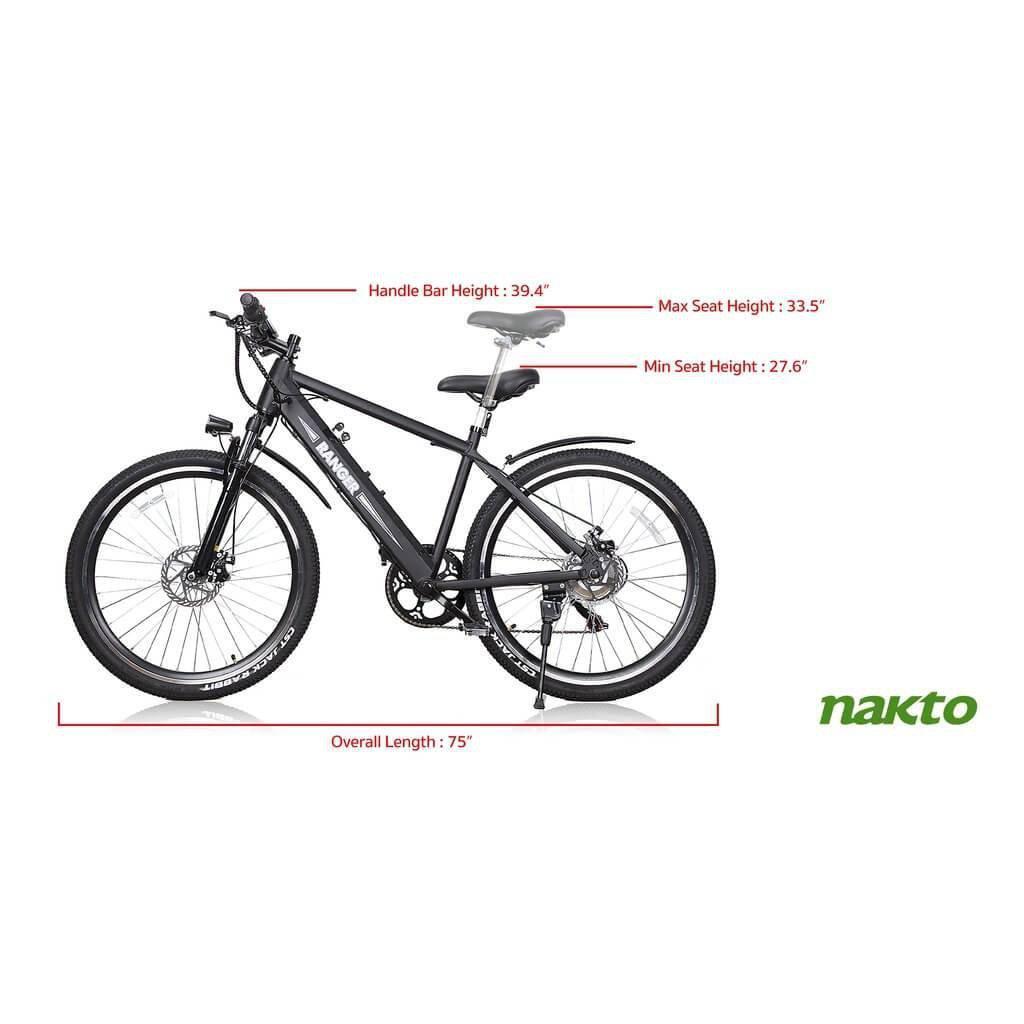

  • Rider Height: 5'-3" - 6'-6"
  • Bike Dimensions: 68” x 43”
  • Wheelbase: 45.6”
  • Seat Height: 33” - 38”
  • Handlebar Height: 39.4”
  • Bike Weight: 62 Lbs.
  • Weight Capacity: 242.5 Lbs.
  • Box Dimensions & Weight: 53.9" x 11" x 28.9" (68 Lbs.)
  • Assembly: The Ranger comes mostly assembled. Final assembly includes attachment of the front wheel, handlebars, axle caps, fender, seat and pedals. Please see assembly video and PDF instructions below.
  • Tools Required: Phillips/Slotted 2 in 1 Screwdriver, 13mm/15mm Double Open-end Wrench, 3mm, 4mm & 5mm Allen Wrench (Included). Scissors & Bike Pump (NOT Included)
  • Shipping: Free shipping to the lower 48. Shipping this brand to Alaska, Hawaii or Canada is $200/bike.

Nakto Ranger Video Assembly Instructions

This video produced by Nakto provides a step-by-step guide for assembling your new Nakto Ranger electric bike.

Nakto Ranger PDF Assembly Instructions

Nakto Ebike User Manual (All Models)

Download the Nakto Ebike User Manual to learn how to set up, operate and troubleshoot your new Nakto ebike.

Nakto LCD Display Manuals

LCD Display Manual for Nakto Cruiser | Santa Monica | Steady OX

LCD Display Manual for Nakto Super Cruiser | Ranger | Discovery

LCD Display Manual for Nakto Elegance
