Snapcycle R1 Pro 750W Fat Tire Electric Bike

4 reviews

FREE Shipping to US Lower 48
DAILY Inventory Updates
NEED HELP? Call 888-883-3350

CHOOSE YOUR BIKE COLOR

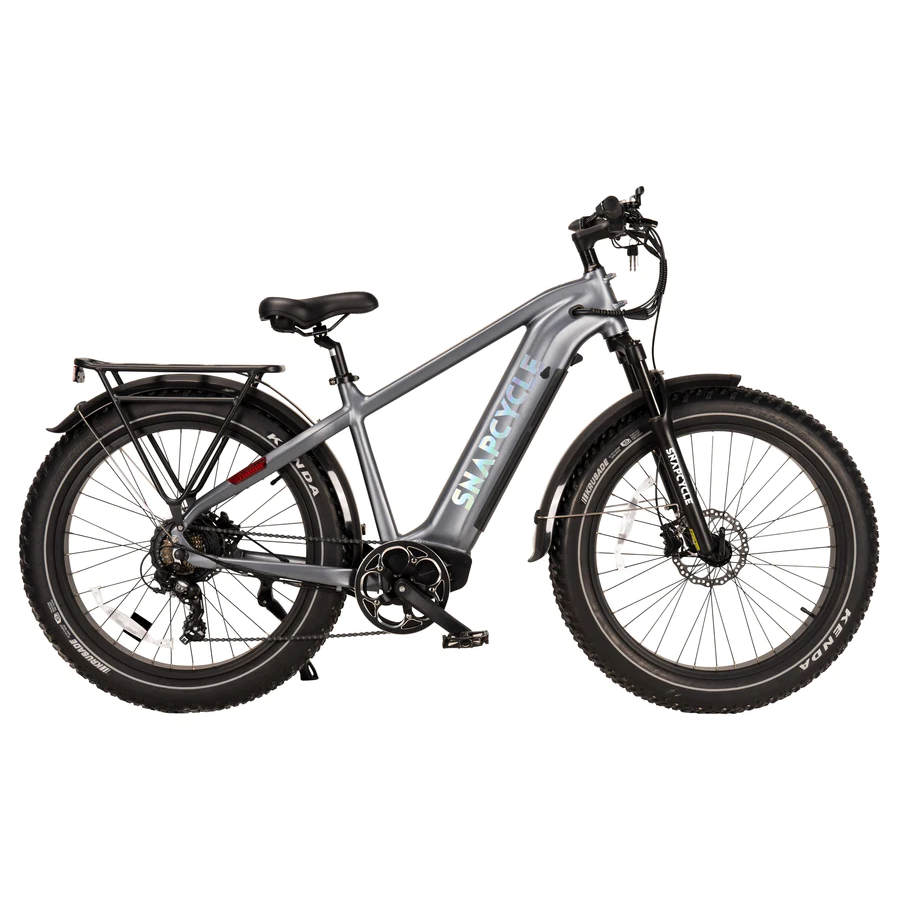

Gray

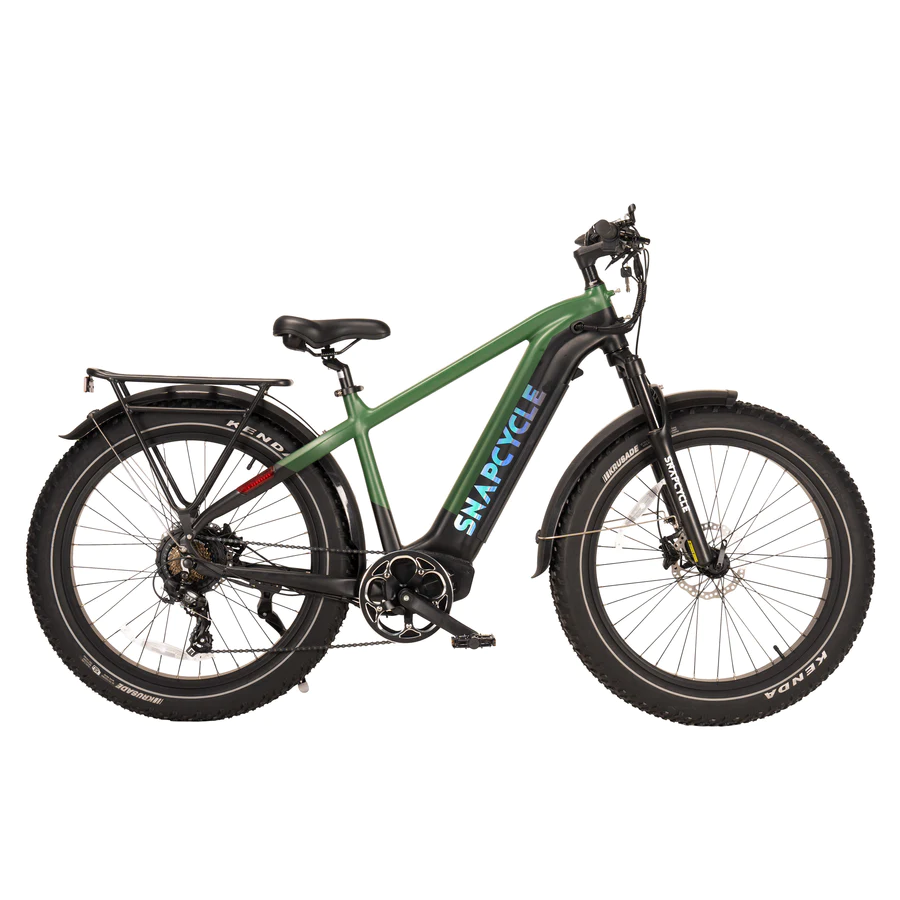

Green Black

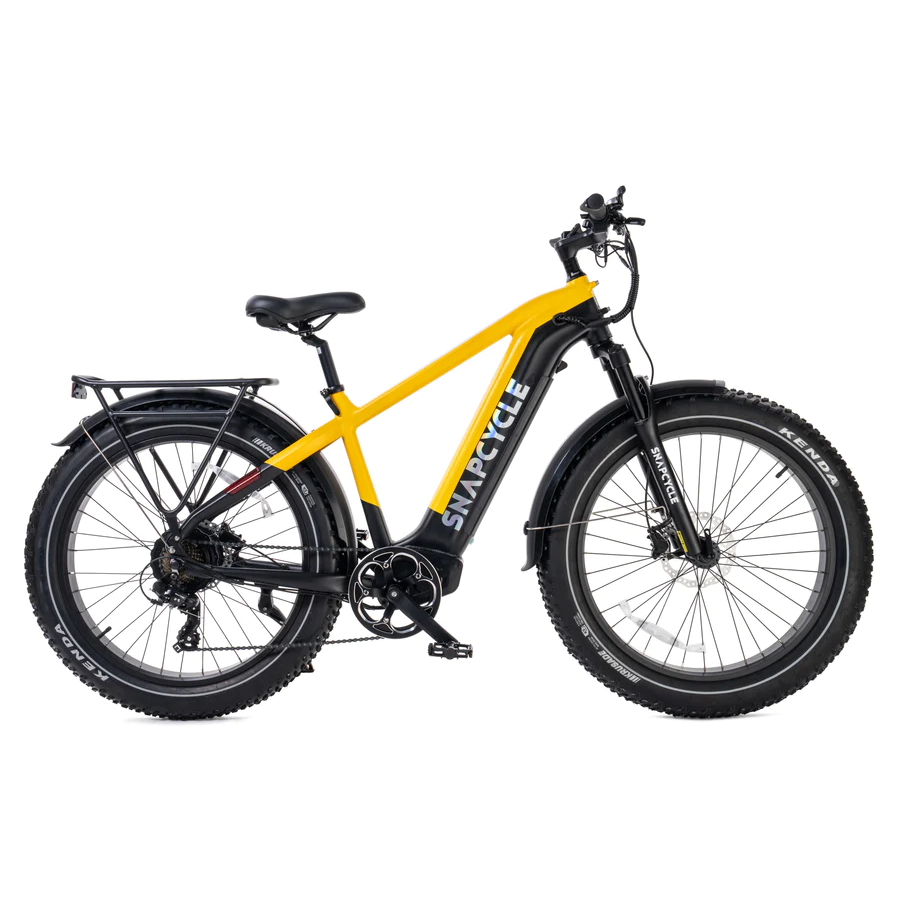

Yellow Black

750W Snapcycle Brushless Motor, 1200W Peak

48V/20Ah Samsung Lithium-ion Battery

26" x 4" Kanda K1188 Fat Tires


snapcycle dealer logo for really good ebikes


Snapcycle R1 Pro Fat Tire Ebike Description

This R1 Pro from Snapcycle can definitely handle its own. It's stylish, durable and is built with top-of-the-line parts. The R1 Pro comes in this mountain bike frame as well as a step-thru.

Automatic Start

The automatic start of your bicycle, when you step on the pedals, is due to the specific calibration of the torque sensor. The sensor is designed to have a very sensitive start-up reaction, meaning it doesn't require a full pedal rotation before the motor kicks in. The R1 Pro, in particular, supports uphill starts with motor power syncing perfectly with pedal force, and there is no delay.

The unique feature of the torque sensor is that the motor output is directly related to the pedal force. When you pedal harder, the motor outputs more power, and when you pedal lightly, it gives less power.

Effortless Climbs

The torque sensor with high sensitivity emphasizes the instant start-up feature, allowing for a quick start in uphill scenarios by simply releasing the brake, offering a smooth and responsive control feel for riding.

750W Brushless Geared Hub Motor

With 750W sustained, 1200W peak power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.



48V 20Ah Samsung Lithium-Ion Battery

Our batteries are rated 48V-20Ah and are made of premium Samsung or LG cells, which are renowned for their long lifespans and excellent performance. With each charge, you'll get to enjoy up to 60 miles of range on pedal-assist mode, and around 30 miles on pure electric power mode.

Hydraulic 160mm Disc Brake

The sensitive dual-piston hydraulic brake system comes with metal-ceramic brake pads, and 160mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.



Thumb Throttle

Experience seamless and accurate power management for your electric bike with our thumb throttle. Easily achieve and sustain your preferred velocity with a gentle press of your thumb.

Adaptive Lighting System

An adaptive lighting system and integrated handlebar lights adds a layer of safety and convenience to the riding experience.




Solid Rear Rack

The sturdy rear rack with a vertical pillar is capable of carrying loads up to 110 lbs. You could bring a child or a pet along for a ride in the morning.





Snapcycle R1 Pro Fat Tire Ebike Specifications

  • Motor: 750W Snapcycle Brushless Motor, 1200W Peak
  • Battery: 48V/20Ah Samsung Lithium-ion Battery
  • Frame: 6061 Aluminum Alloy Frame
  • Gears: 7-Speed Shimano Tourney Derailleur & 5-Level Pedal Assist System (Configurable to 9-level) w/ Right Side Thumb Throttle
  • Shifter: Shimano SL-TX50-7R
  • Charger: US Standard 3.0 A Smart Charger, UL Certified
  • Charge Time: 6-7 Hours
  • Controller: 48V/25A 12-Tube
  • Display: Integrated Color LCD Display
  • Tires: 26" x 4" KANDA K1188 Fat Tires on Aluminum Alloy 26" Rims
  • Spokes: Stainless Steel, 13 Gauge, Black w/ Silver Nipples
  • Brake Calipers: ZONGLUN HD-E500
  • Brake Levers: Aluminium Alloy Comfort Grip Levers w/ Motor Cutoff Switch
  • Brake Rotors: ZONGLUN 160mm Front & Rear
  • Crank Set: 48T, 170mm Aluminum Alloy, Double-Sided Plastic Guard
  • Pedals: Aluminum Alloy Platform w/ Reflector
  • Saddle: Soft Foam Saddle
  • Grips: Ergonomic, Rubber
  • Handlebar: Aluminum Alloy, 680mm Width, 31.8mm Bore
  • Seatpost: Aluminum Alloy, 350mm x 30.4mm Dia
  • Seatpost Clamp: Quick-Release Type
  • Fork: GTMRK Spring Suspension Fork, 175mm Travel, Lockout and Preload Adjustment
  • Pedal: Aluminum Alloy Platform w/ Reflector
  • Electric Bike Class: Class 2 (configurable to class 3)
  • Range: 30-60 Miles
  • Freewheel: Shimano AMFTZ217428T Freewheel
  • Chain: KMC Chain w/ 126 Chainlinks
  • Rear Axle: 230mm x 18mm
  • Kickstand: Heavy-Duty Aluminum Stand
  • Accessories: Headlight, Fenders, Rear Rack, Kickstand, Toolkit
  • Recommended Rider Height: 5'-6" to 6'-7"
  • Bike Weight: 80.7 Lbs.
  • Max Load Capacity: 330 Lbs.
  • Box Dimensions & Weight: 62" x 12" x 32" (99 Lbs.)
  • Speed: Speed is limited to 20 mph/h. Current US Laws define the Class 2 maximum speed at 20 mph using throttle only, and Class 3 maximum speed at 28 mph using pedal assist (not throttle only)
  • Assembly: The R1 Pro comes mostly assembled. Final assembly includes attachment of the front wheel, handlebar, seat, rear rack and pedals. Please see the assembly video below.
  • Tools Required:Open-end Wrenches, Hex (Allen) Keys (Included), Phillips & Flat-blade Screwdrivers, Adjustable Wrench 9/16", Slip-Joint Pliers (NOT Included)
  • Shipping: Free shipping to the lower 48. Shipping to Hawaii is $300/bike. We are unable to ship this brand to Alaska or Canada at this time.


Snapcycle R1 Owner Manual

Snapcycle R1 Pro Assembly Video



Orders for in-stock items take 24-48 hours to process, then about 5-7 days in transit. Delays due to Covid have occurred. If an item is on backorder, the estimated ship date will be shown below the Pre-Order Button.

All products are shipped free within the Contiguous US via UPS, FedEx or similar carrier. Shipping to AK, HI and PR may incur additional charges.

If your package appears damaged from shipping, please do not accept it. Tell the driver to keep the package and contact us immediately at 888-883-3350. We offerGuide Package Protectionto ensure against lost, stolen or damaged goods. Click here to learn more about Guide.

Returns for buyer’s remorse are typically not accepted by our suppliers, and if accepted, the customer may incur shipping and restocking fees.

Please click here to read our entire Shipping & Returns Policy.

QUESTIONS & ANSWERS

Ask a Question
  • Can you add a seat for back rack and pegs?

    You could defintely add a cushion to the rear rack. There are several univeral buddy seats on Amazon that would fit. Not sure about pegs however, since you might need to get an extended rear axle to accommodate the pegs. Hope this helps.
