⚡7-Speed Shimano Derailleur w/ 5-Level Pedal Assist System (PAS) & Left Side Thumb Throttle

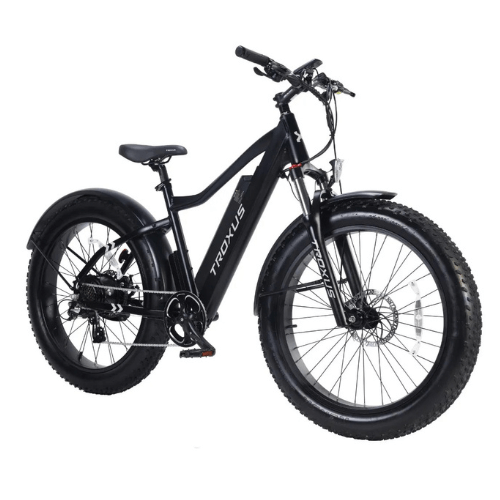

Troxus Vulcanus Description
The Vulcanus is a high-performance electric bike designed with an aircraft-grade aluminum alloy frame, a powerful rear 750W motor and a fully adjustable suspension fork. You have unlimited options with the Vulcanus, discover your world in a new dimension.
750W Powerful Rear Hub Motor
This internally geared brushless hub motor is capable of putting out up to 80Nm of peak torque power for on-road and off-road performance in a wide range of terrain conditions.
Samsung 48V/16Ah Battery
This Samsung battery is removable and can be easily charged at home or work with any standard outlet. Strict testing results prove that the charging and discharging of these batteries do not affect stability even in extreme environments.
LCD Display With A View Setting
The display is clearly visible and effectively avoids visual fatigue. A real-time view of change between pedal assist modes and your current speed, remaining battery range, and much more.
Pedal Assist And Thumb Throttle
Each bike comes in the class-2 mode, which allows for throttle operation up to 20mph and pedal-assist riding can be adjusted up to 28mph.
An aircraft-grade aluminum alloy frame with a 300,000 fatigue test ensures the frame can handle more weight and pressure.
Shimano 7-Speed Shifting
This classic Shimano 7-speed shift system offers more freedom under the suitable freewheel under different riding conditions, it will improve riding efficiency.
Tektro Mechanical Disc Brake
This ebike has a smooth braking system with quick response and rapid heat dissipation.
The alloy front suspension fork has 80mm of travel, preload adjustment, and lockout.
Kenda Fat Tires
Anti-puncture all-terrain tire improves traction, reduces road noise, and increases stability for both on-road and light-duty off-road riding.
Integrated bright lights make it safer to travel at night and help you to see where you are going during bad weather and low visibility.
Adjustable Seat Tube
Very friendly to riders of different heights.
Troxus ebike saddle provides excellent support on your sit bones with less pressure.
Sturdy and huge fenders effectively reduce sand and mud splashing and soiling the bike and the rider's clothing.
Support height adjustment, and adapt to the support requirements of different terrain conditions.
Aluminum crankset guards provide further protection to the chain.
Waterproof Wiring Harness
The wiring harness of the whole vehicle is waterproof, which improves the performance requirements of the whole bike.
Spokes: Front Wheel - Black Stainless 13 Gauge, Rear Wheel - Black Stainless 12 Gauge
Tubes: Butyl Rubber
Hubs: 36H Disc Thru-Axle Fronts, Nutted Rear
HandleBar: Aluminum 31.8mm, 680mm
Headset: Gineyea Sealed Bearing Headset
Grips: Ergonomic Comfort
Saddle: Troxus Brand Saddle
Pedals: 9/16" Alloy Platform Pedals
Sensor: Speed Sensor
Seat Post: Forged Alloy, 30.4mm x 300mm
Seat Clamp: Quick Release
Stem: Threadless, 31.8mm
Bottom Bracket: Square Taper, Sealed
Crankset: 170mm w/44T
Cassette: 14-28T 7-Speed Cassette
Rear Derailleur: Shimano 7-Speed
Chain: KMC Z7
Recommended Rider Height: 5'-2" - 6'-4"
Max Assisted Speed: 28 mph w/ PAS (20 mph on throttle only)
Weight: 71.5 Lbs
Max Load Capacity: 275 Lbs
Box Dimensions & Weight: 61.81" x 13.38" x 36.22" (91.49 Lbs)
Assembly: The Vulcanus comes mostly assembled. Final assembly includes attachment of the pedals, handlebar, front wheel and light. Please see the assembly video below.
Warranty: 2 Years Warranty
Shipping:Free shipping to the lower 48. For shipments to Alaska, Hawaii and Canada,please send usyour shipping address and the products you want, and we will find the best rate available.
Size & Fit
Top Tube Length: 23.7''
Head Tube Length: 6.3''
Standover Height: 26''
Min. Saddle Height: 35.8''
Max. Saddle Height: 41.3''
Troxus Vulcanus Assembly Video
Here we have an assembly video for the Truxus Vulcanus. It provides a step-by-step run-through of how to complete the assembly of your new bike.
