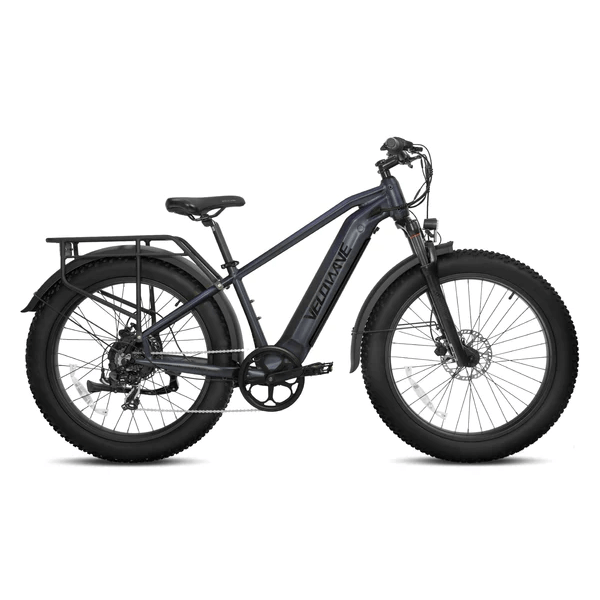

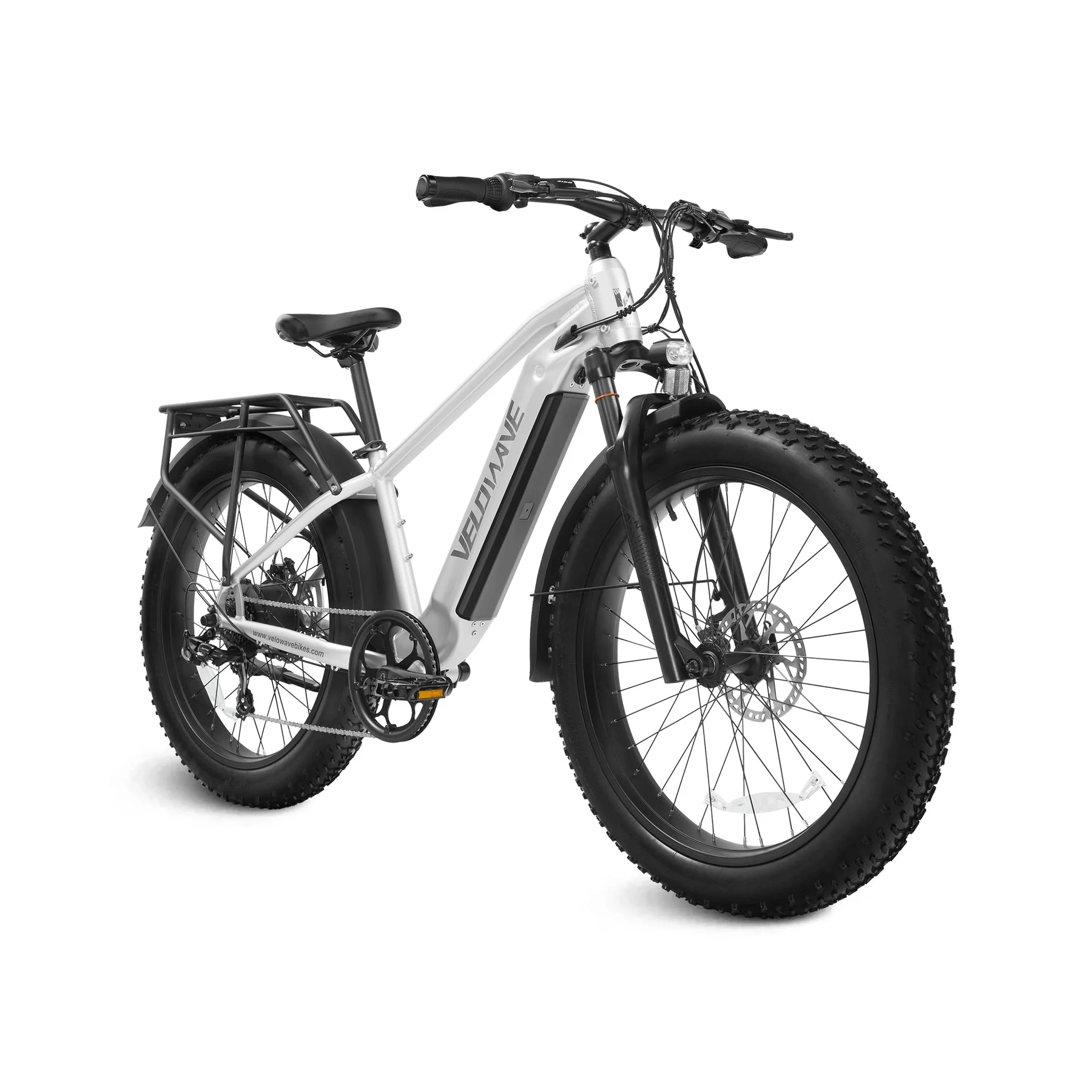

Velowave Ranger 2.0 750W Fat Tire Electric Bike w/ Thumb Throttle
Velowave Ranger 2.0 750W Fat Tire Electric Bike w/ Thumb Throttle
Velowave-Ranger-750W-Fat-Tire-Electric-Bike-w-Thumb-Throttle-fat-Velowave-Ebike-5-Tools-View
Silver
Silver
Dark Gray
Dark Gray
Dark Gray
Silver
Silver
Dark Gray
Dark Gray
Dark Gray
Dark Gray
Velowave Ranger 2.0 750W Fat Tire Electric Bike w/ Thumb Throttle
Velowave Ranger 2.0 750W Fat Tire Electric Bike w/ Thumb Throttle
Velowave-Ranger-750W-Fat-Tire-Electric-Bike-w-Thumb-Throttle-fat-Velowave-Ebike-5-Tools-View
1 review

Velowave Ranger 2.0 750W Fat Tire Electric Bike w/ Thumb Throttle

You Save % ()
CHOOSE YOUR BIKE COLOR
Dark Gray
Silver
ADD ACCESSORIES

Free Shipping to US Lower 48

Daily Inventory Updates

Need Help? Call 888-883-3350

Product Overview

Mighty 750W Bafang Geared Rear Hub Motor w/ 80Nm of Torque

Long-Range 48V/15Ah Downtube Integrated Battery w/ LG Cells

7-Speed Shimano Drivetrain w/ 5-Level Pedal Assist System & Left Side Thumb Throttle



velowave authorized dealer logo for really good ebikes


Velowave Ranger 2.0 FMTB3 Description

Are you looking for a powerful fat tire electric bike for your next off-road adventure? Do you want high-end components at a reasonable price?

Well, let me introduce you to the Velowave Ranger 2.0 (aka FMTB3) electric mountain bike. The Ranger 2.0 is one of the best, most affordable fat tire electric mountain bikes on the market today.

Downtube-Integrated Lithium Battery w/ LG Cells

The Ranger 2.0 comes with a premium long-range 48V/15Ah lithium-ion battery with LG cells. It provides an aerodynamic profile and can be removed for remote charging. Support fast charging, charge to about 80% in 4 hours, and fully charge in 8 hours. It is capable of covering a range of 30-45 miles on a full charge. For a more precise estimate of the potential range, check out our ebike range calculator.


velowave ranger 2.0 battery


Powerful 750W (Nominal Output) Rear Hub Motor

The Ranger's 750W Bafang rear hub motor provides strong electric power when you need a boost. Using the 5-level pedal assist system (PAS), this reliable motor will propel you up to 28 mph. If you get tired pedaling, activate the motor using the left-side thumb throttle, and you can cruise along without having to pedal.


velowave ranger 2.0 motor


Smart Display

Enjoy instant power with the thumb throttle. Switch between pedal and throttle modes for accelerated rides. Its advanced display offers real-time metrics.


velowave ranger 2.0 display



All-Terrain Fat Tires

The 26" x 4.0" fat tires have anti-skidding and wear-resistant characteristics. They will adapt to snow, sand, and various other terrains. The fat tire enables smooth riding on rugged terrains means you can get a better cycling experience.


velowave ranger 2.0 fat tire


Responsive Braking

Seamless control with multiple riding modes. Hydraulic disc brake ensures reliable, sensitive braking.


velowave ranger 2.0 braking system


Shimano Derailleur

Unparalleled riding with the Shimano 7-speed derailleur. Conquer hills and cruise effortlessly.



velowave ranger 2.0 Derailleur



Sturdy Build

Crafted with a reliable 6061 aluminum frame, provides easy access for all riders. Supports up to 350 lbs with a reinforced rear triangle.


velowave ranger 2.0 frame


Upgraded Design

Enhance your ride with a rear rack and upgraded fender package. Carry cargo effortlessly and stay stylishly clean.



velowave ranger upgraded design



Ergonomic Design

Enjoy a comfortable ride with ergonomic lock-on grips. Designed for personalized comfort.



velowave ranger 2.0 ergonomic grip design



Velowave Ranger 2.0 Specifications

  • Motor: 750W Bafang Geared Rear Hub Motor w/ 80Nm of Torque (Rated 1000W, Peak)
  • Battery: 48V/15Ah Downtube Integrated Removable Lithium-Ion Battery w/ 720Wh LG Cells
  • Charger: 48V 2Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
  • Controller: 48V 25A Peak
  • Charge Time: 4-8 Hours
  • Drive Modes: 7-Speed Shimano RevoShift Drivetrain w/ 5-Level Pedal Assist System (PAS) & Left Side Thumb Throttle
  • Display: Multifunctional Color Screen Display
  • Frame:  6061 Aluminium, Removable Battery, Internal Routing
  • Sensor: Cadence Sensor
  • Derailleur: Shimano ARDTY500D 7-Speed, Long Cage
  • Freewheel: Shimano 14-28T, 7-Speed freewheel
  • Crank & Chainring: 52T, 170mm Alloy Crank
  • Tire: 26" x 4.0" Kenda Fat Tires w/ Quick Release Front Tire
  • Rim Material: Aluminum
  • Rim Size: 26" 36H Front & Rear
  • Front Wheel Spokes: 13G x 244/246mm, Black Stainless
  • Rear Wheel Spokes: 12G x 217/219mm, Black Stainless
  • Tubes: Butyl Rubber, Schrader Valve
  • Hubs: Disc Nutted Front /Rear Axles
  • Chain: KMC 124 Link, 7-Speed
  • Brake: Front & Rear Hydraulic Disc Brakes w/ 180mm Discs & Auto Motor Cutoff Sensor
  • Brake Rotor: 180mm, 1.9mm Thick
  • Light: 48V 10W LED Headlight, 30 LUX
  • Suspension: Hydraulic Suspension Fork w/ 60mm of Travel & Lockout
  • Saddle: Comfortable Wide Saddle
  • Seatpost: Forged Alloy, Ø30.4*350mm
  • Seat Clamp: Ø35mm Quick Release
  • Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
  • Handlebar: Aluminum Ø31.8mm, Width 740mm
  • Headset: Sealed Bearing Headset
  • Grips: Nylon Lock-on, Ergonomic Comfort
  • Pedals: Platform Pedals
  • Accessories: Headlight, Kickstand, Optional Rear Rack and Fenders
  • Max Assisted Speed: 28+ mph.
  • Range: Up to 90 Miles by Pedal; 30+ Miles by Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
  • Standover Height: 30.2"
  • Recommended Rider Height: 5'-6" - 6'-2"
  • Min. Seat Height: 33.67"
  • Box Dimensions & Weight: 61.8" x 13.8" x 32.1" (96.6 lbs.)
  • Weight: 72.9 Lbs.
  • Max Load Capacity: 300 Lbs.
  • Assembly: This Ranger 2.0 comes mostly assembled. Final assembly includes attachment of the pedals, handlebar, headlight, and front wheel. Please see the video assembly instructions below
  • Tools: Included
  • Warranty: 1 Year
  • Shipping: Free shipping to the lower 48. We are unable to ship this brand to Alaska, Hawaii or Canada at this time.

Velowave User Manual

Here is the link to download the Velowave User Manual.


Velowave Ranger 2.0 Size & Parameter

  • Total Length: 1914mm (75.3")
  • Head Tube Length: 140mm (5.5")
  • Head Tube Angle: 70°
  • Seat Tube: 425mm (16.7")
  • Seat Tube Angle: 70.3°
  • Handlebar Height: 1109mm (43.6")
  • Bottom Bracket Height: 361mm (14.2")
  • Chainstay Length: 496mm (19.5")
  • Front-Center: 669mm (26.3")
  • Wheelbase: 1170mm (46")
  • Standover Height: 704mm (27.7")
  • Reach: 404mm (15.9")
  • Seat Height Min/Max: 823mm/1012mm (32.4"/39.8")



Velowave Ranger 2.0 Assembly Instructions

In this video, Velowave provides step-by-step instructions on how to assemble your new Ranger ebike.

Velowave Ranger 2.0 Electric Bike Review

Here we have a video from Transport Evolved, a YouTuber channel known for their reviews on cleaner, greener, safer, and smarter forms of transport.

In this video review, they take you off-road as they go through each specification and feature of the Velowave Ranger and demonstrate how it performs.

Velowave Ranger 2.0 Review by The Inja

The Inja is a well-known YouTuber, offering his honest and helpful takes on electric bikes. In this review, The Inja says "the Velowave Ranger is a good electric bike but obviously, comparing it to other e-bikes I have or have ridden in the past. Obviously, there's trade-offs either way so, I would prefer it goes a few miles per hour faster, but you are getting longer range distance if you are locked in at a slightly lower speed than what it could do so, there's just trade-offs either way."
