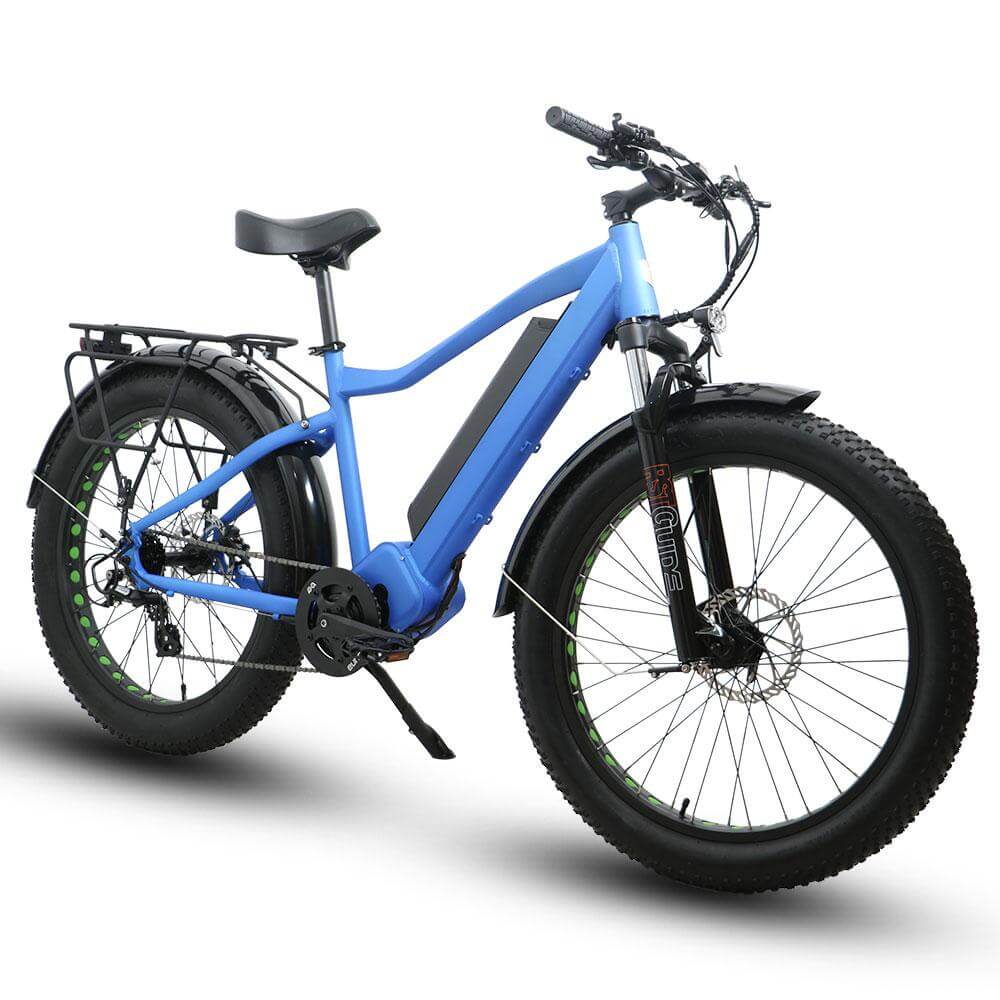

Eunorau Fat-HD Fat Tire Electric Mountain Bike

Bafang BBSHD 1000W Mid-Drive - 48V/15.6Ah Downtube-Integrated Battery - Hydraulic Disc Brakes - Shimano 7-Speed Gears - Much More...

The Fat-HD sports a 1000W BBSHD mid-drive motor by Bafang, one of the most powerful and yet quiet ebike motors on the market today. The motor is paired with a downtube-integrated 48V/15.6Ah long-range battery, which is aerodynamic and easily removed for remote charging.

The Fat-HD has several drive modes, including a conventional 7-speed transmission system by Shimano, a 5-speed Pedal Assist System which uses a 12-magnet cadence sensor, and a left-side throttle. Together, these drive modes will allow you to find the sweet spot for every riding situation.

Eunorau Fat-HD Electric Mountain Bike Specifications

• MOTOR: 1000W Bafang BBSHD (M620) Mid-Mounted Geared Motor w/ 160Nm Torque and Super Quiet Operation
• BATTERY: 48V/15.6Ah Long-Range Downtube-Integrated Battery by Yiklik (w/ Extra 48V/16Ah and 48V/21Ah Options)
• CHARGE TIME: 6-8 hours
• ESTIMATED RANGE: Up to 45 Miles Per Charge (72 km)
• DISPLAY TYPE: APT 500c, Fixed, Adjustable-Angle, Backlit, Full Color LCD, Vibration Feedback (See Display Manual)
• READOUTS: Battery Level (10 Bars), Speed, Assist Mode (0-5), Trip Distance, Total Distance, Average Speed, Max Speed, (Includes 5 Brightness Settings, Walk Mode, Time-Out Adjustment, Battery Read-out Preference)
• DISPLAY ACCESSORIES: Integrated Button Pad Near Left Grip, Buttons: +, -, Menu, On/Off, (Hold - for Walk Mode, Hold + for Lights, Hold M for Settings Menu)- Fat-HD Display Manual
• DRIVE MODE: Cadence Sensing Pedal Assist, Left Side Thumb Throttle (12-Magnet Cadence Sensor)
• BODY POSITION: Forward, Upright

• SUGGESTED USE: Neighborhood, Sand and Snow, Trail
• WARRANTY: 2 Year
• TOTAL WEIGHT: 62 lbs (28.12 kg)
• BATTERY WEIGHT: 10.0 lbs (4.53 kg)
• MOTOR WEIGHT: 12.3 lbs (5.57 kg)
• FRAME MATERIAL: 6061 Aluminum Alloy
• FRAME SIZE: 19 in (48.26 cm)
• GEOMETRY MEASUREMENTS: 19" Seat Tube, 30" Stand Over Height, 27" Reach, 34.5" Minimum Saddle Height, 26" Width, 76" Length
• FRAME FORK DETAILS: RST Spring Suspension, 100mm Travel, Compression Adjust with Lockout, Preload Adjust, 32mm Stanchions, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer
• FRAME REAR DETAILS: 190mm Hub Spacing, 12mm Threaded Axle with Quick Release
• ATTACHMENT POINTS: Front and Rear Fender Bosses, Rear Rack Bosses
• GEARING DETAILS: 7-Speed 1x7 Shimano Acera Derailleur, DNP Nickel Plated 11-34 Tooth Freewheel
• SHIFTER DETAILS: 7-Speed Shimano Altus w/ Thumb Shifter on Right
• CRANKS: Aluminum Alloy, 170mm Length, 46 Tooth Chainring
• PEDALS: Wellgo Aluminum Alloy Platform with Reflectors, CrMo Axle, Black
• HEADSET: Neco H156ME, Semi-Integrated, Sealed Cartridge, 1-1/8"
• STEM: Aluminum Alloy, Promax MA-400, 90mm Length, 8º Angle, 15mm Rise, Three 10mm Spacers, 28.6mm Clamp
• HANDLEBAR: Mid-Rise, Aluminum Alloy, 650mm Length, 20mm Rise
• BRAKE DETAILS: Promax Hydraulic Disc Brakes Front 160mm and Promax Hydraulic Rear Disc Brake 160mm with Motor Cut-Off Sensor in Brake Handles
• GRIPS: Rubberized Slant waffle pattern, friction mounted
• SADDLE: Velo Plush
• SEAT POST: Promax, Aluminum Alloy
• SEAT POST LENGTH: 320 mm
• SEAT POST DIAMETER: 28.6 mm
• RIMS: Aluminum Alloy, Double Wall, 70mm Width, 36 Hole
• SPOKES: Stainless Steel, 13 Gauge, Black with Nipples
• TIRE BRAND: Kenda Juggernaut, 26" x 4" (98-559)
• WHEEL SIZES: 26 in (66.04cm)
• TIRE DETAILS: 5 to 30 PSI, 0.4 to 2.1 BAR, 30 TPI
• TUBE DETAILS: Schrader Valve
• ACCESSORIES: Mid-Mount Adjustable Kickstand, Integrated Blaze-lite 6 Lux LED Headlight, Seat-Post Mounted Blaze-lite 6 Lux LED Backlight (Solid, Flashing), Bolt-On Rear Rack with pannier rails, Metal Fenders in Gloss Black Optional accessories include: Upgraded Display, Upgraded Brake Set, 152 or 175mm Crank, 42 tooth Skinny/Fat Chain ring, Spider Chain Ring, Upgraded Integrated Front Light
• OTHER: Locking Removable Downtube-Mounted Battery Pack, 2lb 3Amp Charger, Integrated Motor Controller, Encased Motor
• WARRANTY: 2 Years Motor & Battery; 1 Year Other Electronics

🔥 CALL for Local Professional Assembly Options

Ebike Assembly Video

This video shows the assembly process for the Fat-AWD, and is essentially the same procedure for the Fat-HD ebike.

Brent McCluskey - Electrified Reviews - New Fat-HD Video Review

We love it when independent reviewers test ride ebikes we carry, and report their findings online. One of the best is Brent McCluskey from Electrified Reviews. Not only are his test rides and reviews tons of fun to watch, but he really gets into the weeds and gives his honest opinion. Check out Brent's video review of the Eunorau Fat-HD below.

Electric Bike Review (EBR) Coverage of the Fat-HD by Eunorau

The independent 3rd-party ebike review site EBR gave a very favorable review to the Eunorau Fat-HD. You can read the full EBR report here, with highlights and the review video below.

• A massively powerful 1000w mid-drive electric fat bike with internal pedal assist, thumb on demand, available in two colors with commuting accessories included as standard
• 46 tooth front chain ring for greater torque, combined with the fat tires, pull of an immense 1000w and extra weight of the unit adds greats traction in loose terrain
• Commuting accessories come standard; metal fenders, dual pannier rail rear-rack, integrated from head light, and battery powered rear light
• Included mechanical disc brakes need regular adjustment to stay on top of the increased wear from the high speed and weight of the bicycle. I'd encourage swapping for hydraulic disc brakes for routine high-speed rides

Ebike Reviewer Compares Fat-HD to Rambo - Guess Who Wins?

The independent ebike review site Ebike Reviewer has pit the Eunorau Fat-HD against the Rambo Bikes 750W, and the results are revealing. Check out the head-to-head battle before you decide on which one is right for you.
