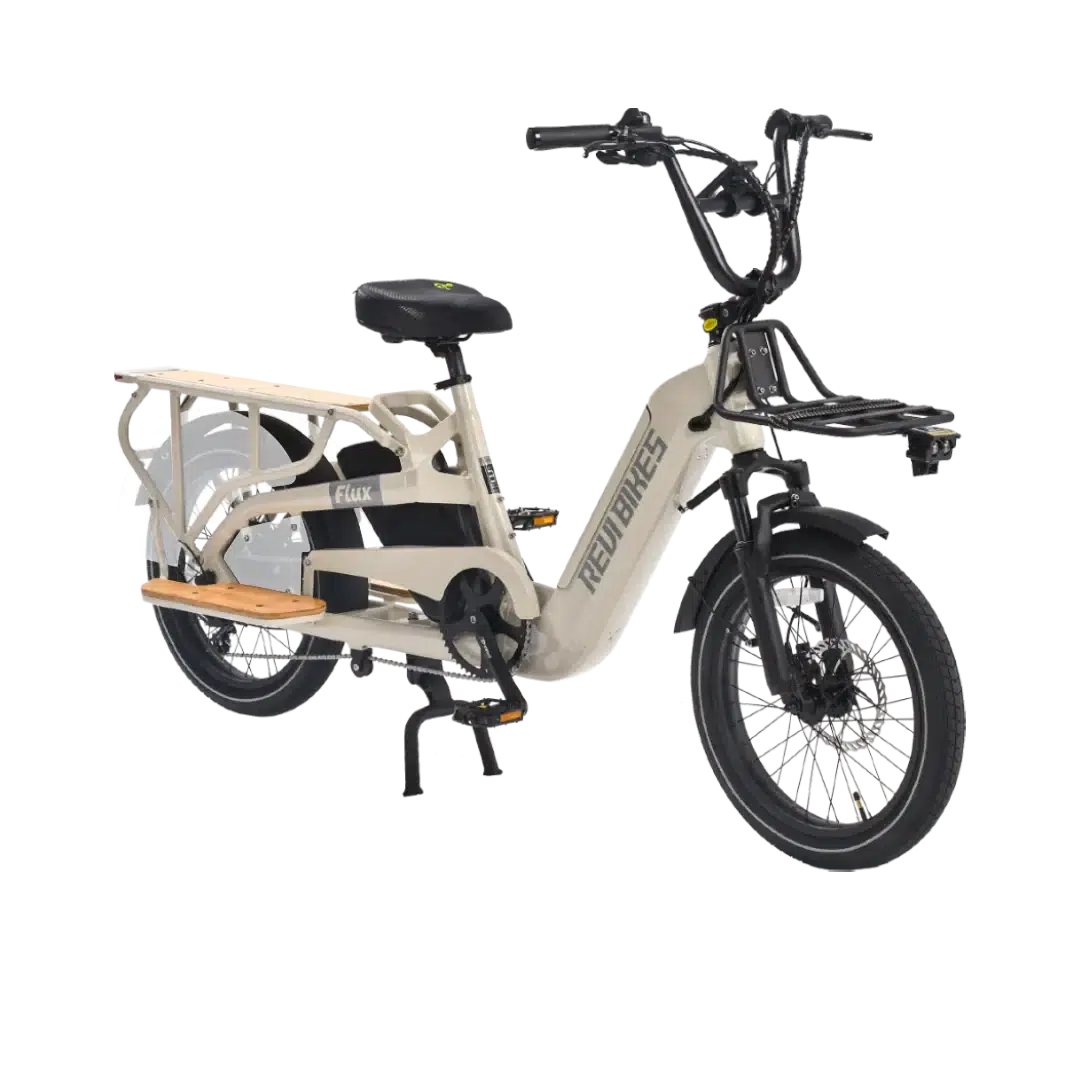

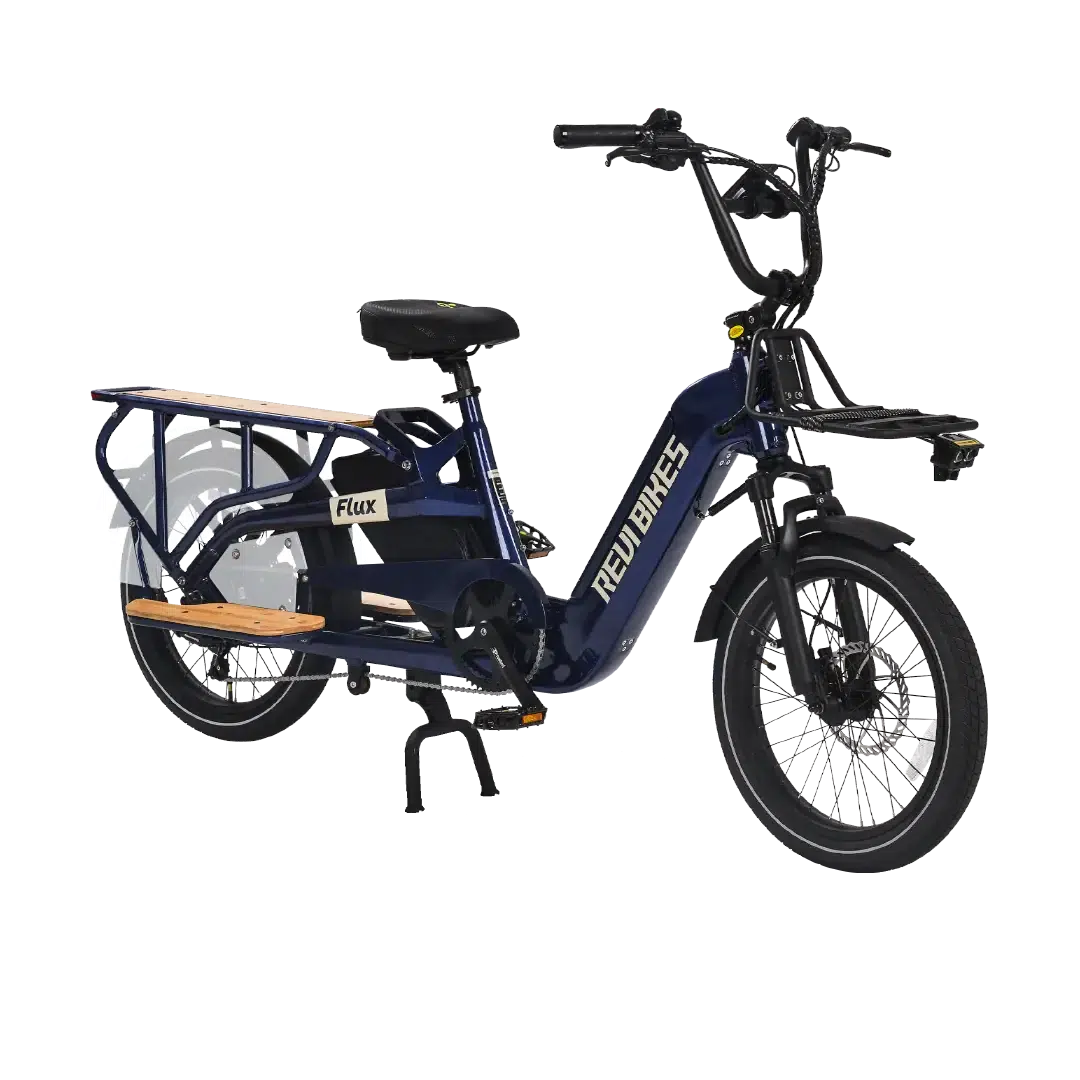

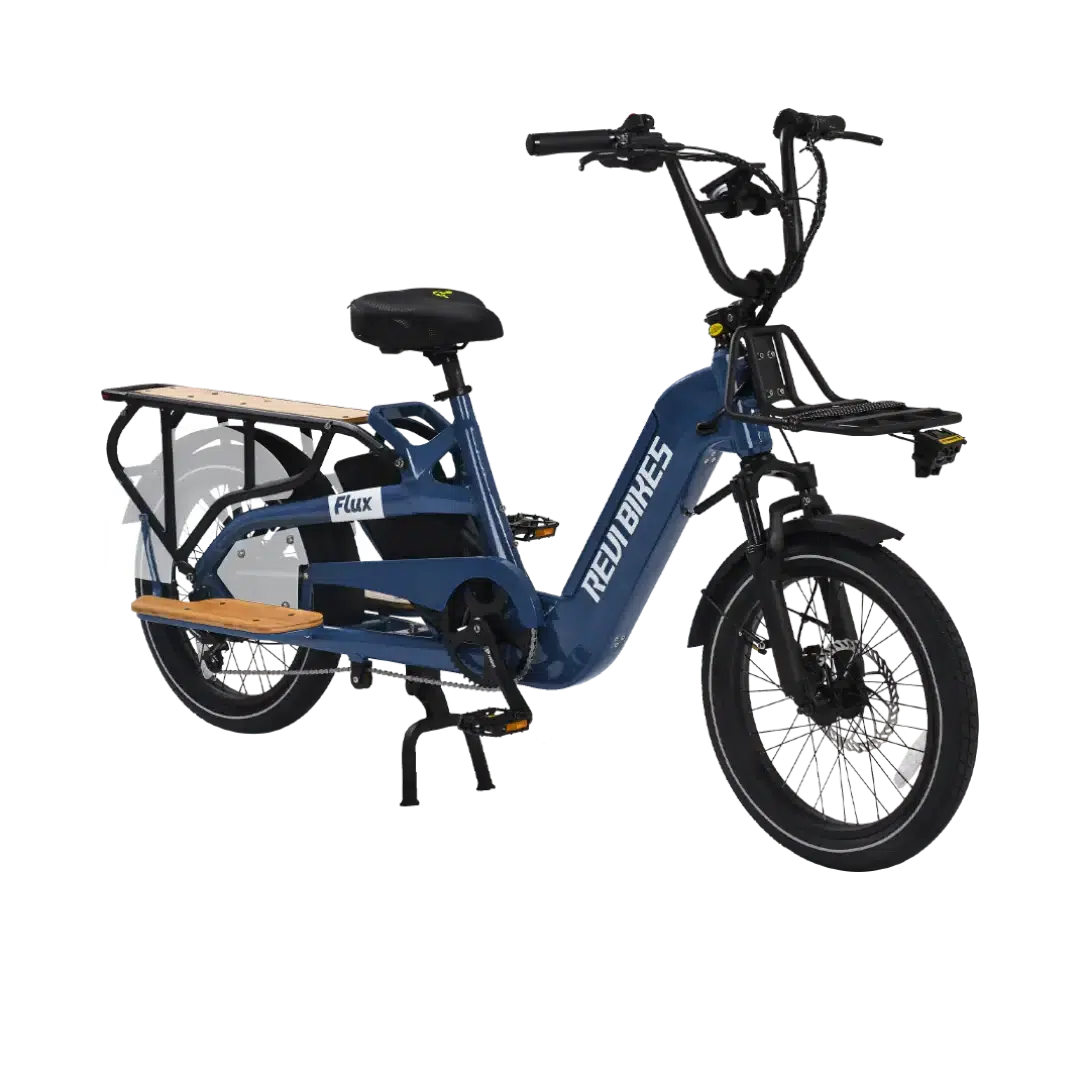

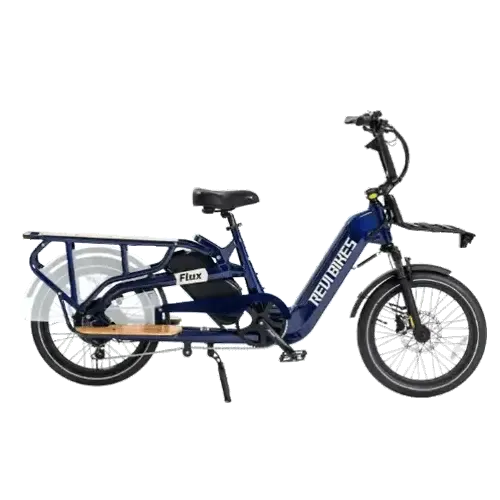

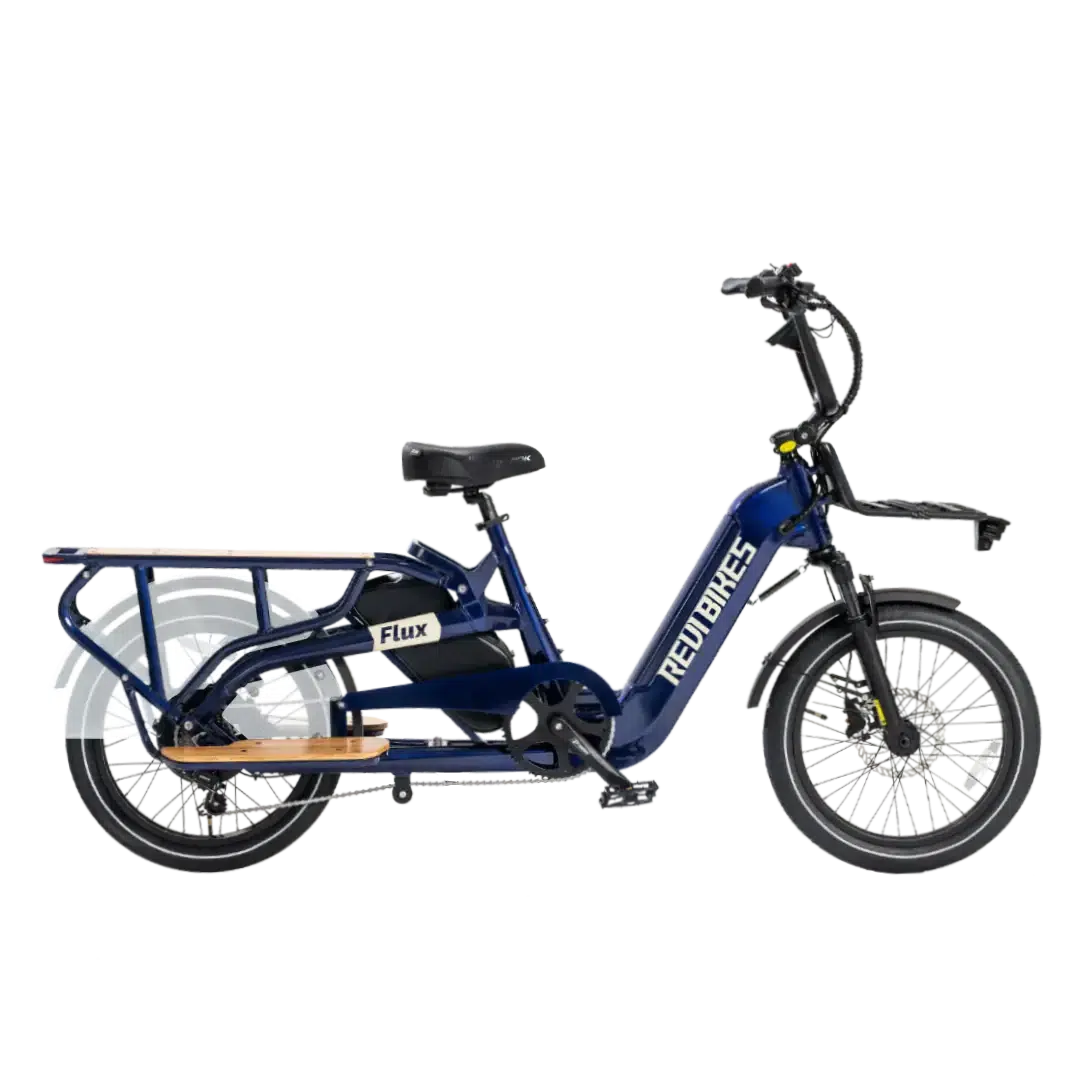

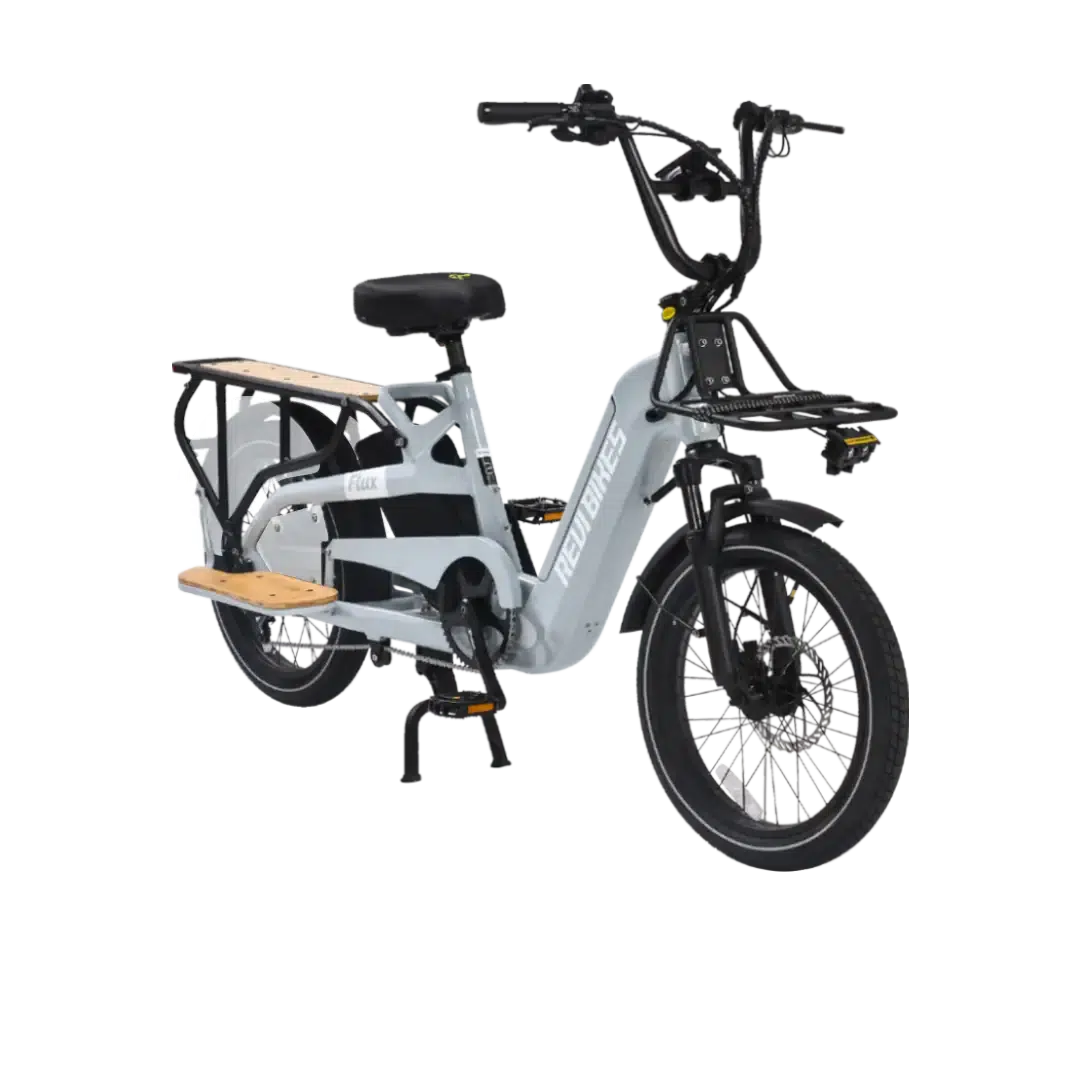

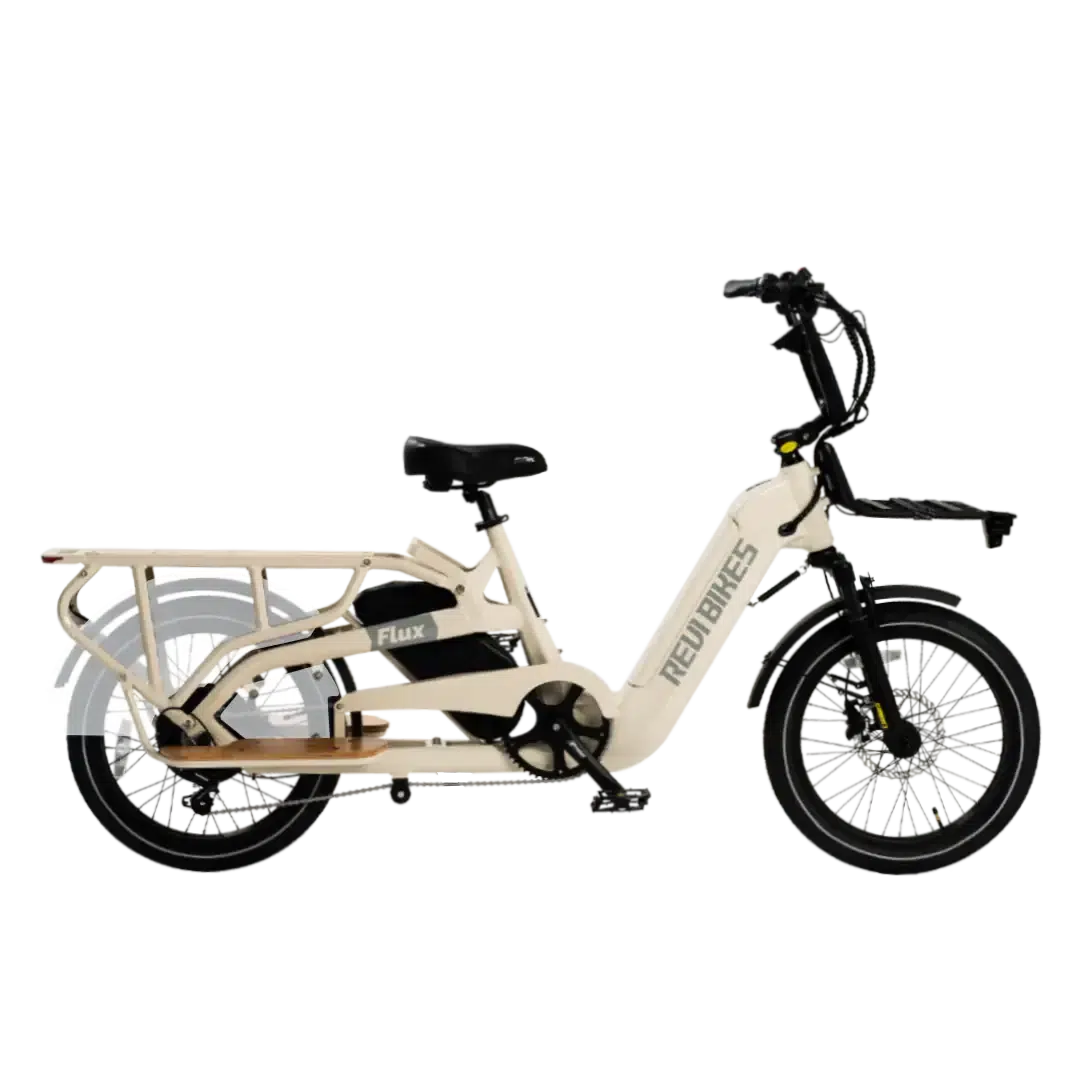

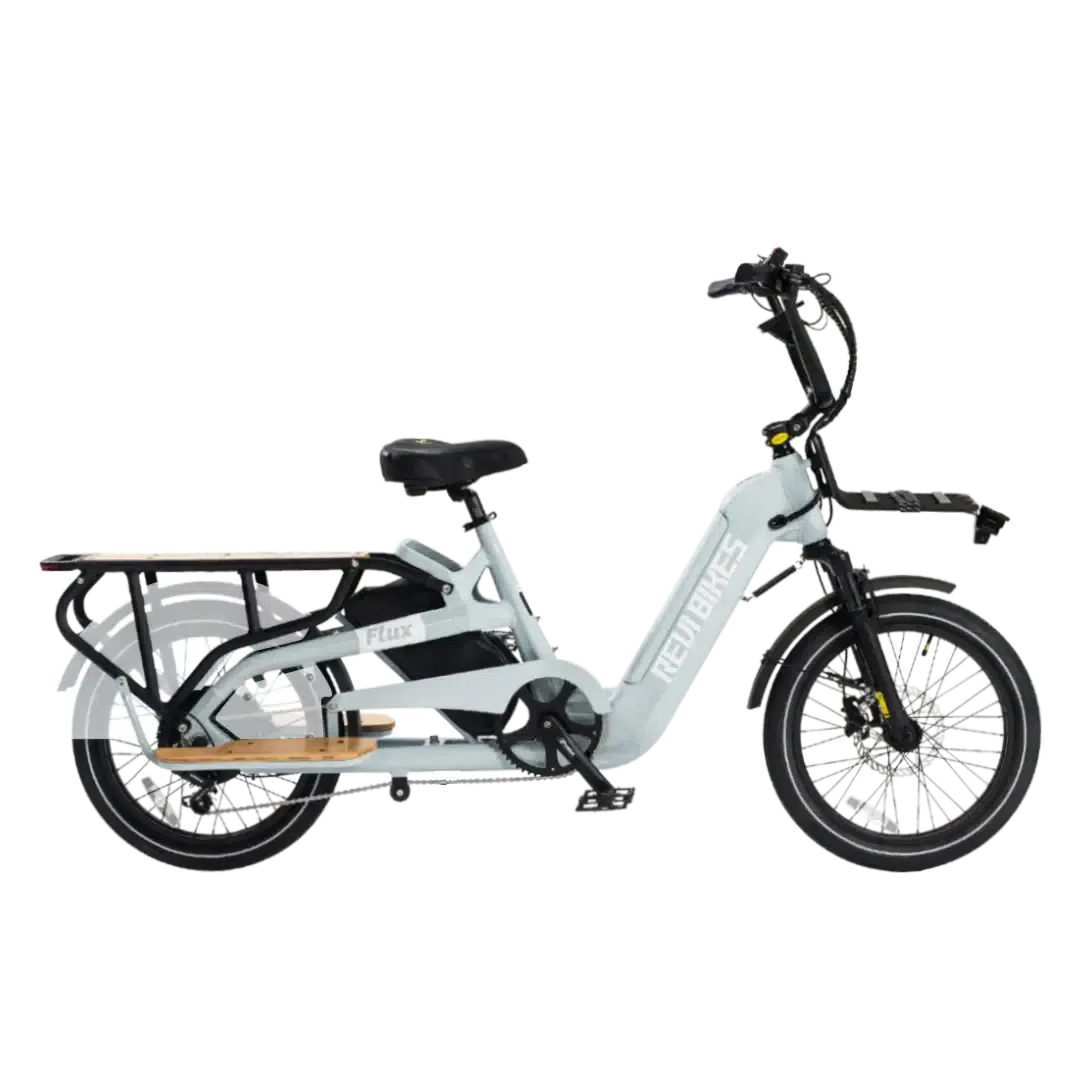

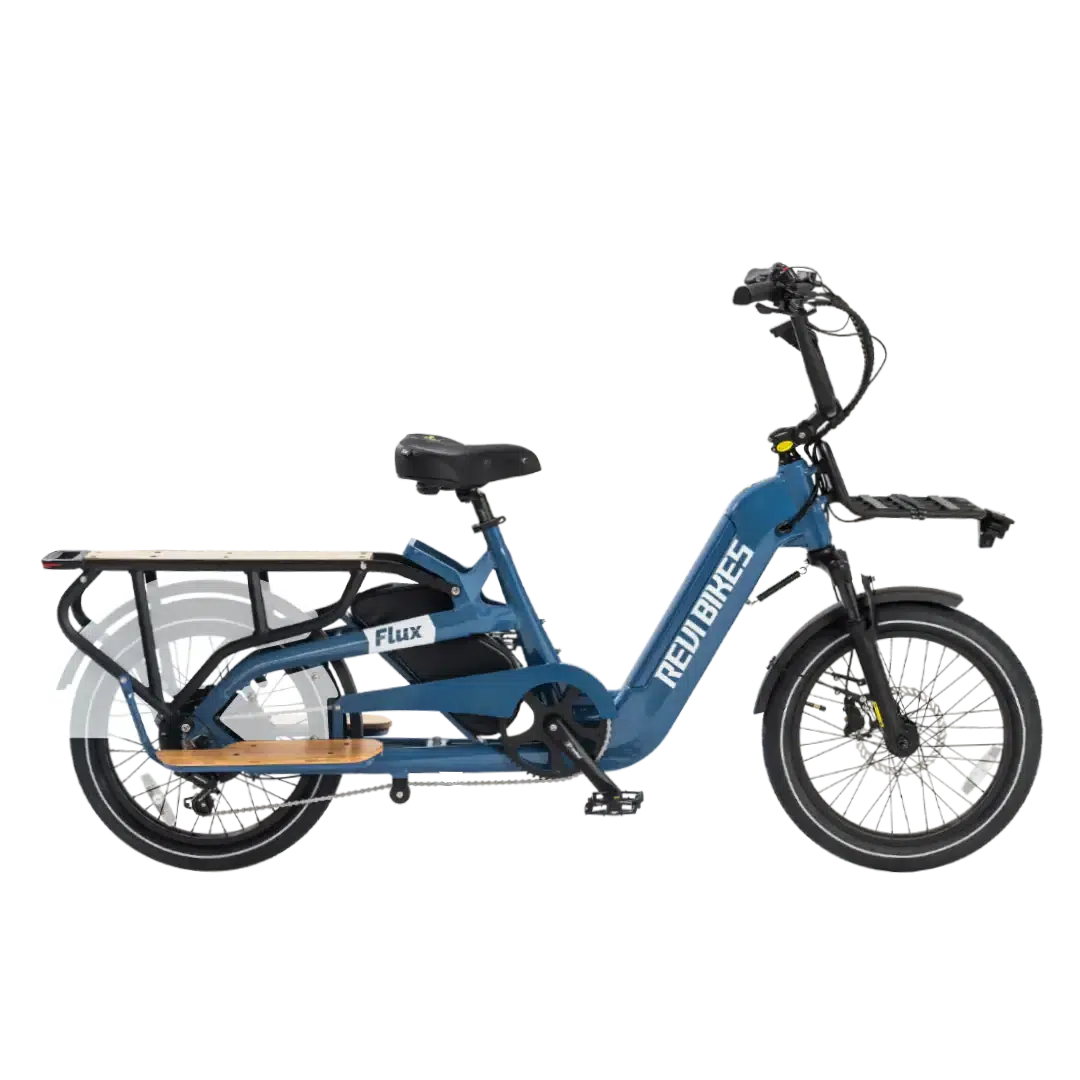

Revi Bikes Flux 750W Cargo Electric Bike

FREE Shipping to US Lower 48
DAILY Inventory Updates
NEED HELP? Call 888-883-3350

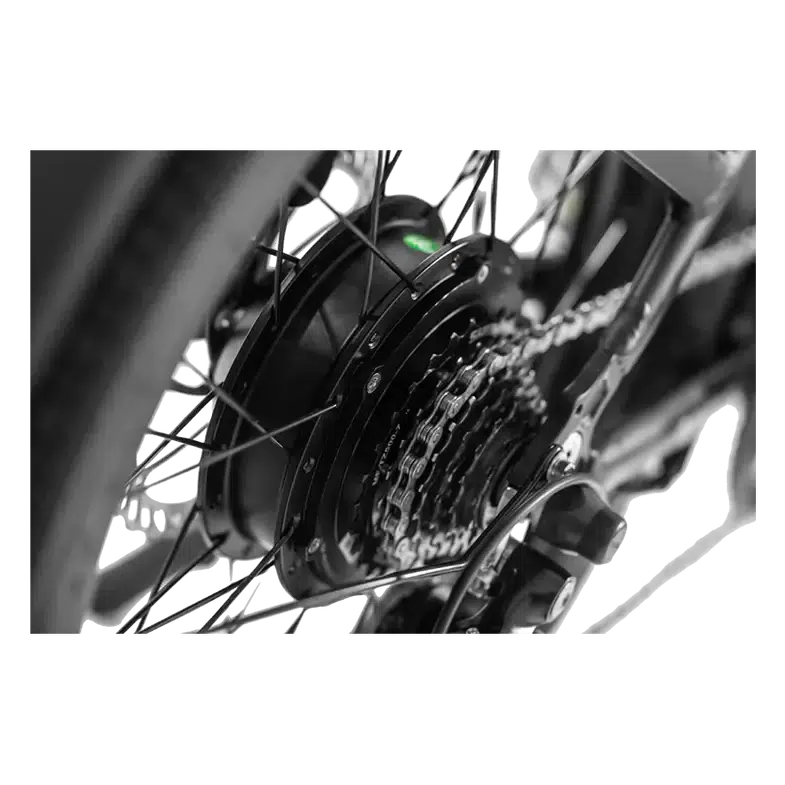

750W Powerful Rear Hub Motor (1200W Peak Output)

48V/15Ah Lithium-Ion Battery w/ Samsung Cells

5-level PAS System, 7-Speed Shimano Derailleur w/ Throttle


Flux Ebike Description

More Power For More Cargo

The 750W powerful motor can reach a peak output of 1200W and torque of 85 Nm which is perfect for boosting up steep hills and holding speed with heavy cargo loads up to 440 lbs. The powerful motor allows you to run up to 25 mph.

Dual Battery Option

It's powered by a 48V/15Ah removable Samsung lithium battery that lasts up to 55 miles. The second battery is available in 10Ah and 15Ah options, providing you with twice the range for extended rides, even when carrying heavy loads. No need for a second charger, one charger can charge two batteries at the same time.

More Cargo More Passengers

A host of accessories enables you to haul everything and everyone while running errands in the town. Whether commuting or doing after-school pick-ups, replenishing your groceries, or venturing across town, rest assured, we've got you fully covered.

Integrated lights

Integrating rear lights with turn signals and brake lights takes safety to the next level. When a rider activates the turn signal, it will blink on the appropriate side.

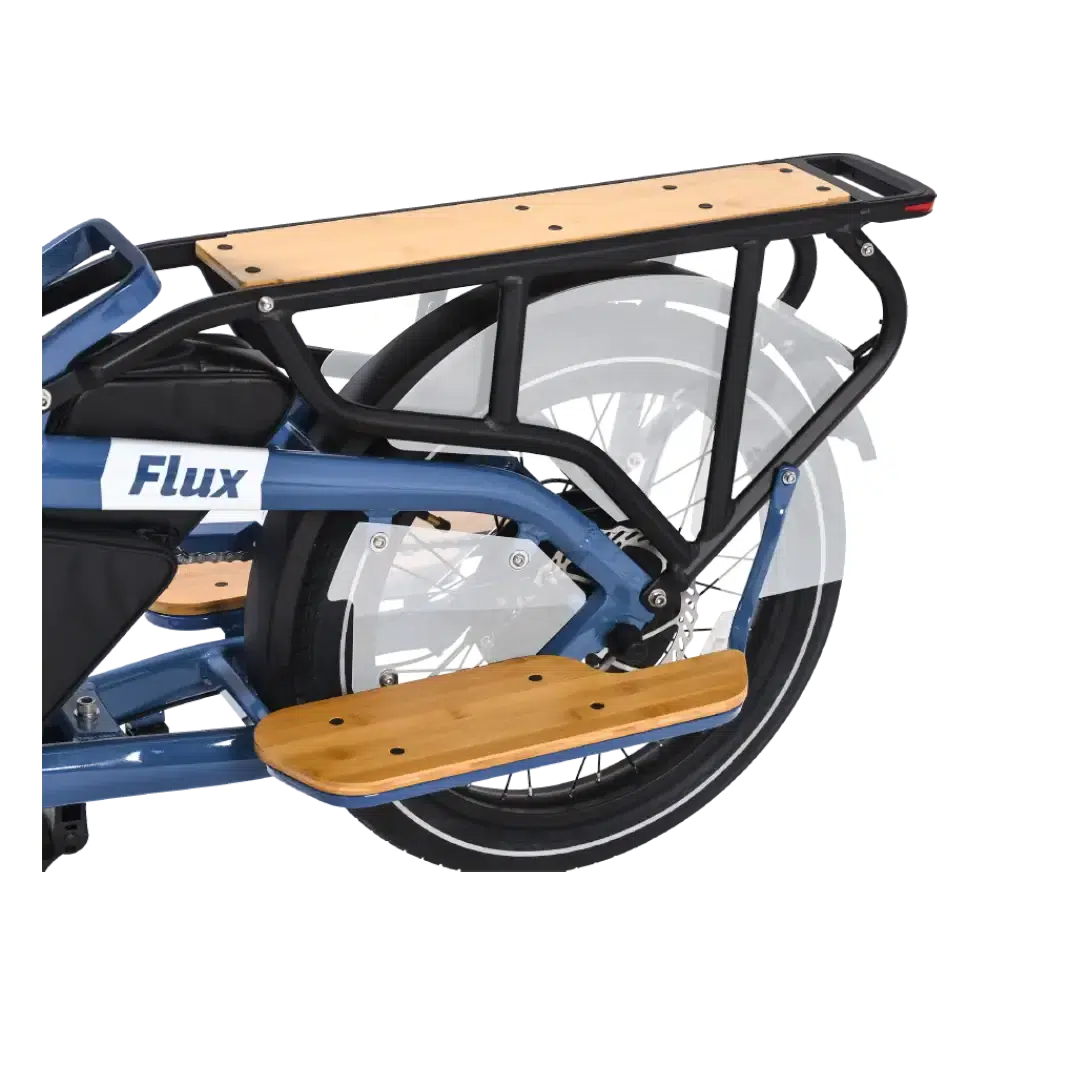

Rear Wheel Guards & Footrests

With a total payload capacity of 440 lbs, this electric bicycle can haul it all. The rear rack has a load capacity of 180 lbs. Perfect for carrying everything from adventure gear to kids. Comes equipped with rear-wheel guards and passenger footboards to enhance passenger safety.

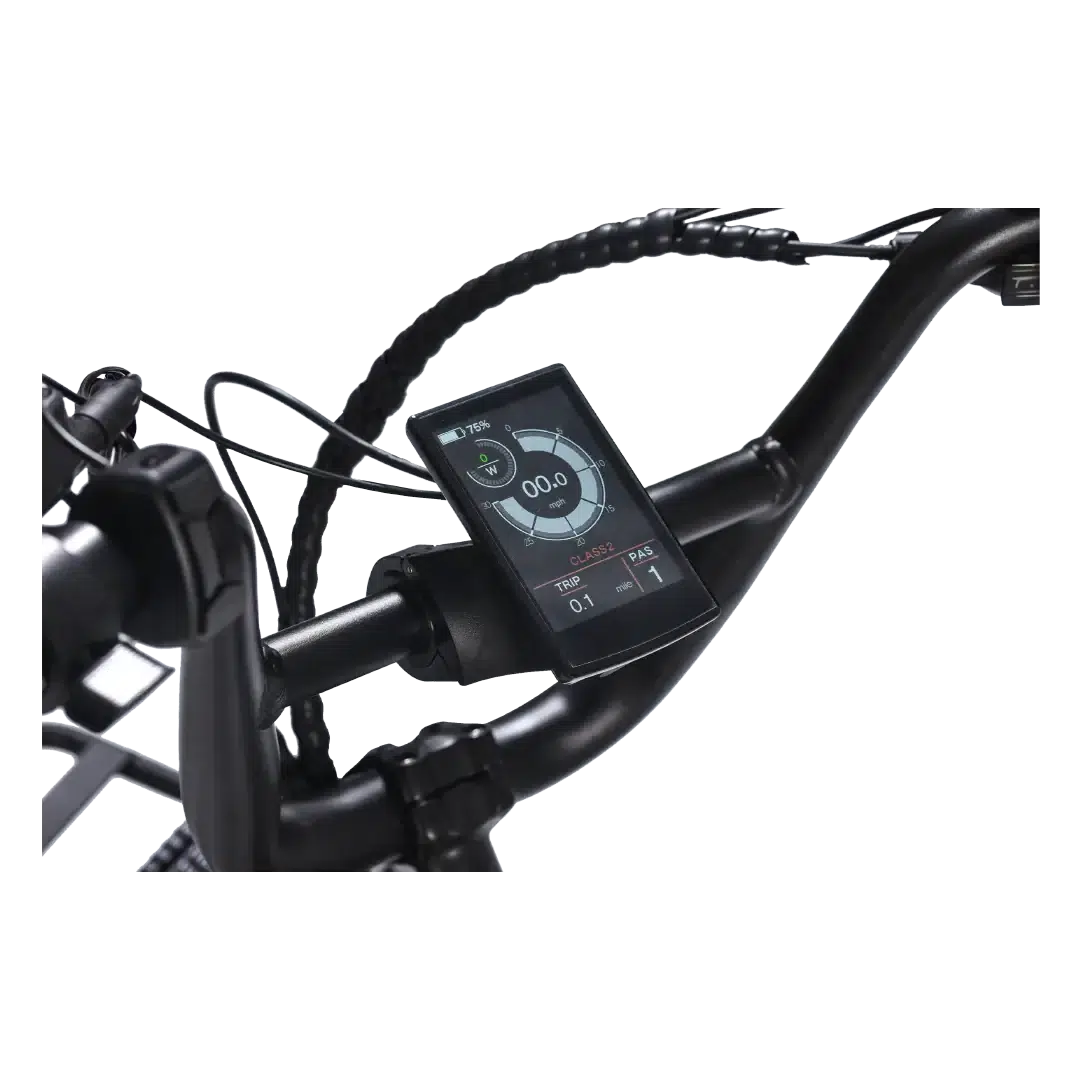

LCD Display

Switch between Class 2 (throttle activated, max 20MPH) and Class 3 (throttle deactivated, max 25MPH). Control your entire ride with the display by choosing between 1-5 levels of pedal assist power, check your battery life, operation status, speed, and trip distance.

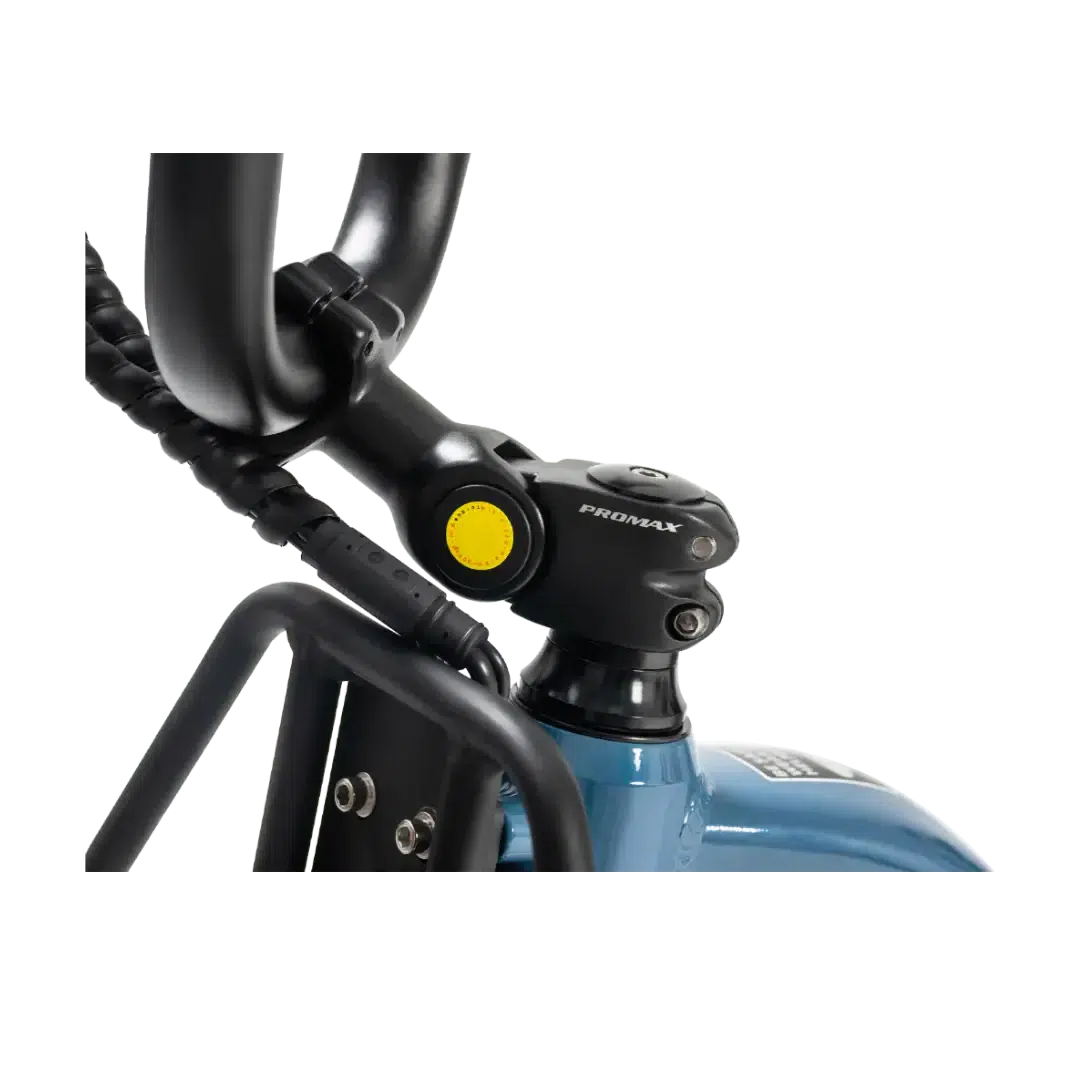

Adjustable Stem

An adjustable stem allows riders to find their optimal hand position, minimizing strain on the wrists, shoulders, and neck. The ability to adjust handlebar height and angle enhances your control and stability.

Anti-Puncture Tires w/ Reflective Strips

The puncture-resistant layer will prevent it from piercing through to the inner tube. Whether you're riding at dawn, dusk, or in inclement weather, the reflective strips play a crucial role in ensuring that you remain visible and safe on the road.

14" Step Through Standover Height

Simply thread your leg through the frame. This design makes it much more convenient for individuals who may have difficulty with balance or limited flexibility.

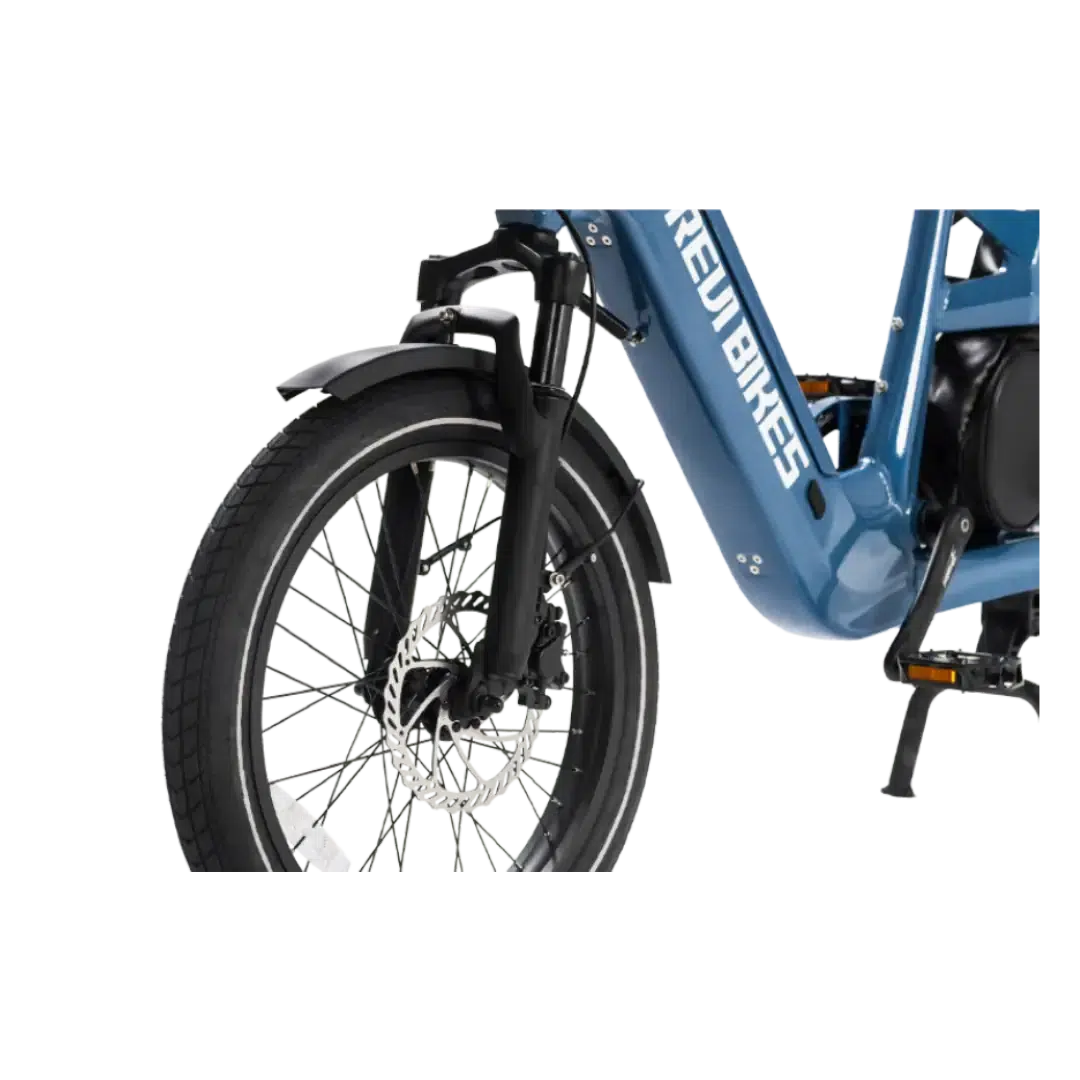

Hydraulic Disc Suspension Fork

The 180mm hydraulic disc brakes provide reliable and sensitive braking performance. The front suspension helps smooth bumps and improves off-road performance, making the ride more stable, comfortable, and controllable.

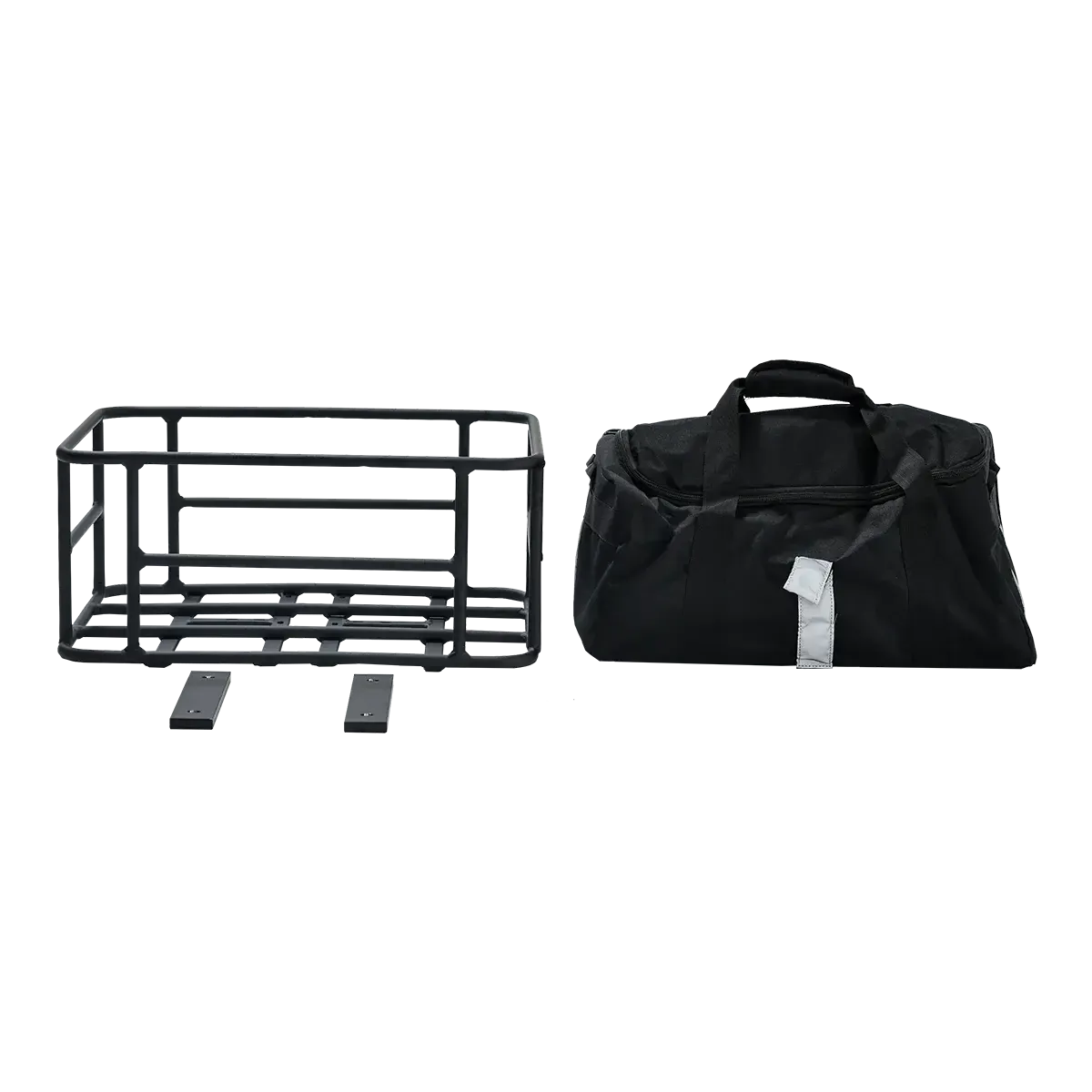

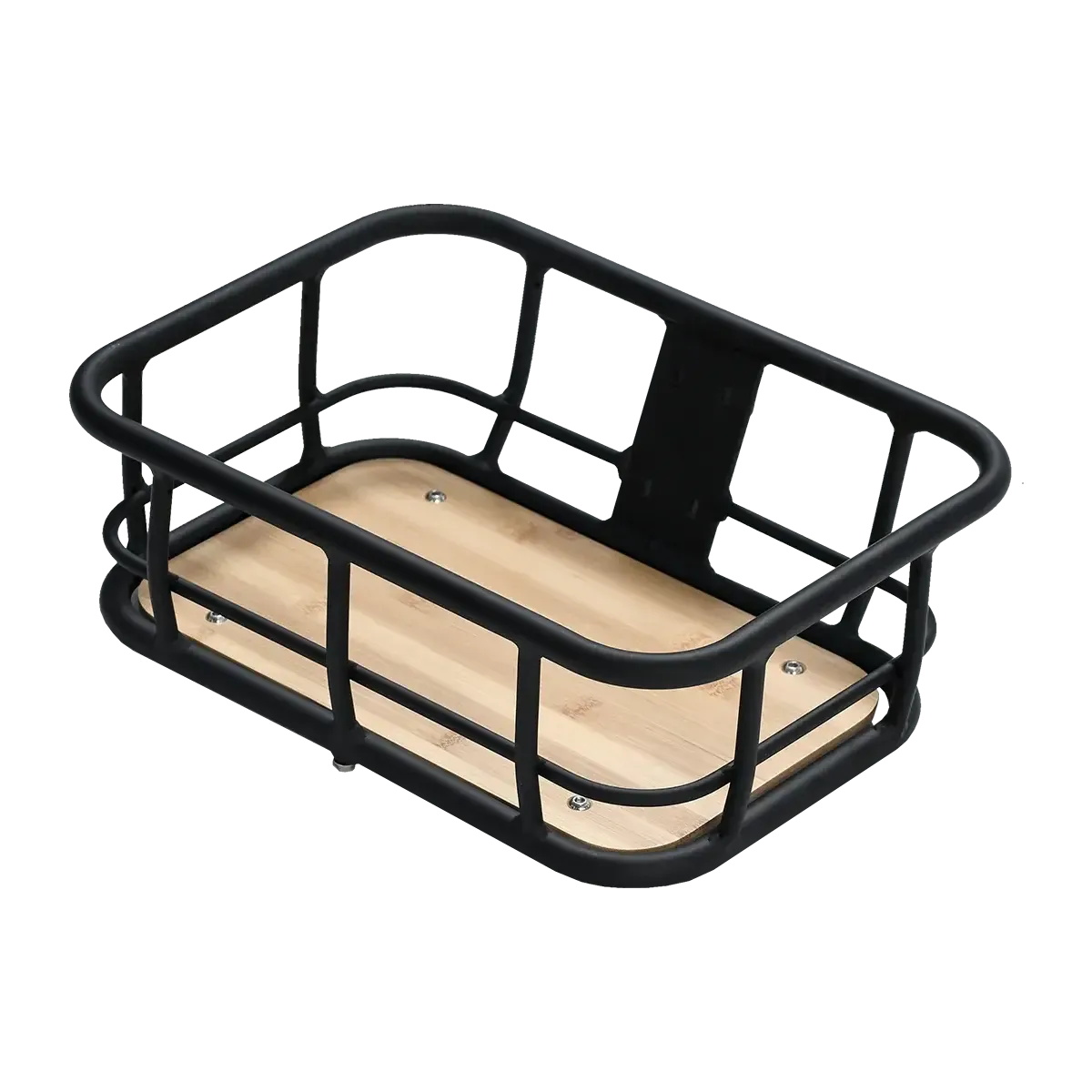

Better Weight Distribution Free Front Rack

Front racks provide additional storage space and distribute the weight more evenly between the front and rear of the bike. Also making it easier to keep an eye on your belongings and ensure they remain secure during your ride.

High-Luminance LED Headlight

Built from durable heat-dissipating CNC-machined aluminum construction and features two ultra-high-output LEDs delivering up to 550 lumens. An enhanced optical reflection lens offers optimized illumination as well as built-in side visibility.

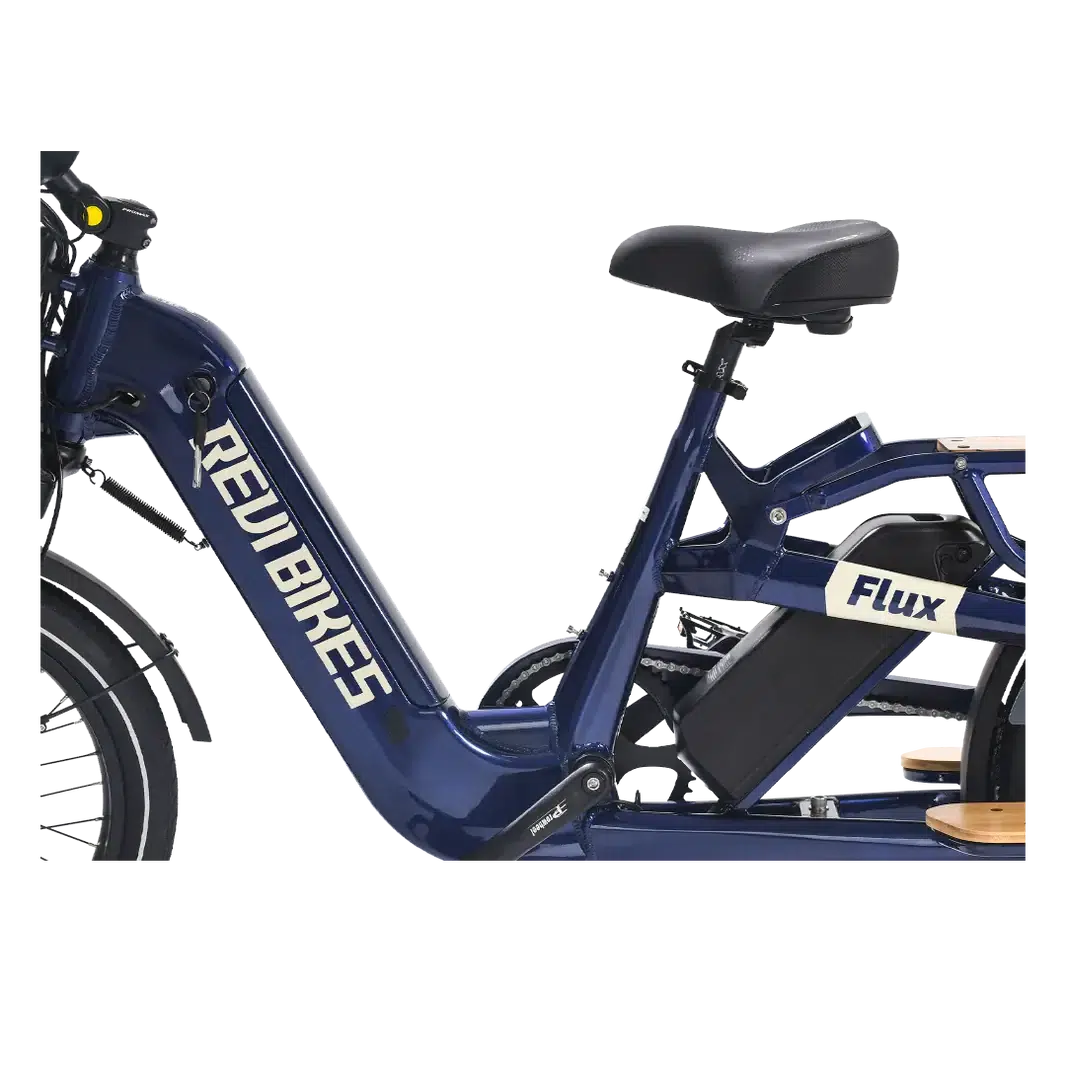

Reserve Battery Space Storage Bag

Space is reserved for a second battery, which is designed in the form of a storage bag. If you choose a single battery, the spacious compartment is perfect for stashing tools, snacks, water bottles, or any other small items you may need during your ride.

Upgrade Version Wide Saddle

Unlike the narrow option, the wide saddle provides twice as much room for your sitting bones to rest comfortably. Thick padding absorbs road vibrations and impact, preventing jolts and shocks from reaching your body.

Flux Ebike Specifications

  • Motor: 750W Powerful Rear Hub Motor w/ 85Nm of Torque (1200W Peak Output)
  • Battery: 48V/15Ah Removable Lithium-Ion Battery w/ Samsung Cells
  • Charge Time: 4-6 Hours
  • Gears: 5-level PAS System, 7-Speed Shimano Derailleur w/ Throttle
  • Frame: 6061 Aluminum Alloy Frame
  • Display: Full Color
  • Display Function: PAS Level, Current Speed, Max Speed, Odometer, Trip, Daylight and Night Model Selection, Class 2, Class 3 model selection
  • Saddle: Leather w/ Mechanical Spring
  • Wheel Size: 20" x 2.4"
  • Tires: Anti-Puncture Tires w/ Reflective Strip
  • Wheelbase: 53"
  • Crank Wheel: 52T 170mm
  • Chain: EPT Anti-Rust
  • Brake: Front & Rear Hydraulic Brakes
  • Brake Brand: Wesun
  • Fork: Suspension Fork
  • Front Light: Included
  • Saddle Bag: Included
  • Handlebar: Adjustable
  • Handlebar Height: 41.3" - 46"
  • Standover Height: 14"
  • Seat Height: 30" - 34"
  • Seat Tube: 16.5"
  • Reach: 23.6"
  • Total Length: 72"
  • Top Speed: 20-25 mph
  • Weight: 99 Lbs w/ Battery
  • Total Weight Capacity: 440 Lbs
  • Rear Cargo Capacity: 180 Lbs
  • Included in Box: Flux Model, Battery, Charger & Power Code, Head Light, Fenders, L&R Pedals, L&R Footrest, Front Rack, User Manual.
  • Assembly: The Flux comes mostly assembled. Final assembly includes attachment of the Front Rack, Footrest, Front Wheel, Handlebar, Pedals, Headlight and fenders. Please see the assembly video below.
  • Tools Required: Scissors, Knife, 4/5mm Allen Key, 13/15mm Wrench
  • Max Range: 55 Miles. 80 miles can be achieved by adding a second 10Ah battery (15Ah + 10Ah). 100 miles can be achieved by adding a second 15Ah battery (15Ah + 15Ah).
  • Shipping: Free shipping from Los Angeles area warehouse to the lower 48. We are unable to ship this brand to Alaska, Hawaii or Canada at this time.

The max range is achieved under the below conditions: rider weight 120lbs, no wind, flat paved road, pas level 1, eco mode, and the throttle is not engaged.
