Revi Bikes Cheetah Mini 500W Fat Tire Electric Bike

FREE Shipping to US Lower 48
DAILY Inventory Updates
NEED HELP? Call 888-883-3350


500W Motor (750W Peak) Rear Hub Motor

48V/15Ah Lithium-Ion Battery w/ Samsung Cells in Teardrop Tank

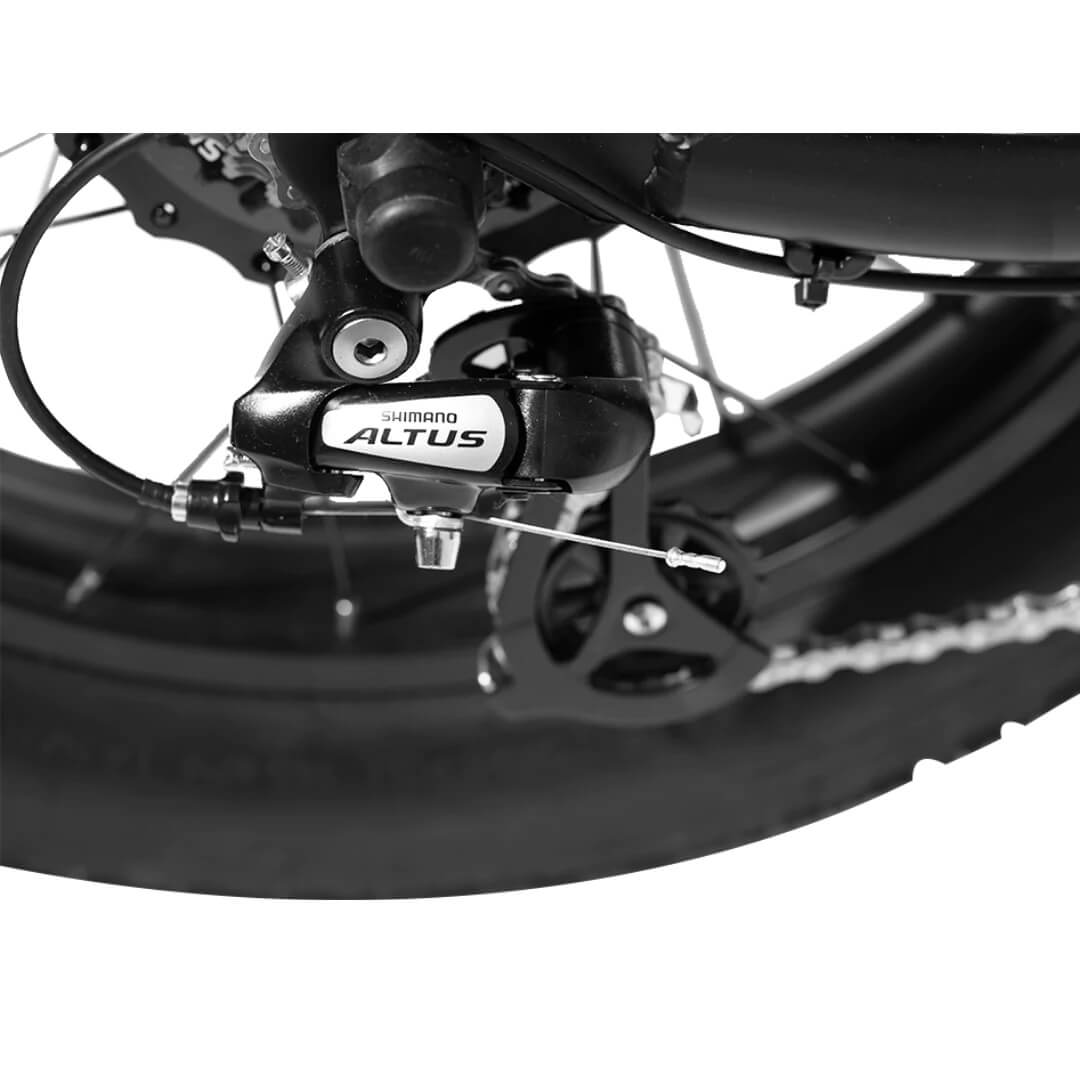

7-Speed Shimano Altus Drivetrain w/ 5-Level Pedal Assist System (PAS) & Twist Throttle


revi bikes (formerly civi bikes) authorized dealer logo for really good ebikes

Revi Cheetah Mini Description

The new Revi Cheetah Mini includes the retro cafe racer stylings that made the OG Original Cheetah electric bike so famous. But they have come up with a revolutionary new design, that has shrunk the dimensions to fit more customers. For a comparison of the different Cheetah models, check out our latest blog post.


revi cheetah mini fat tire electric bike.

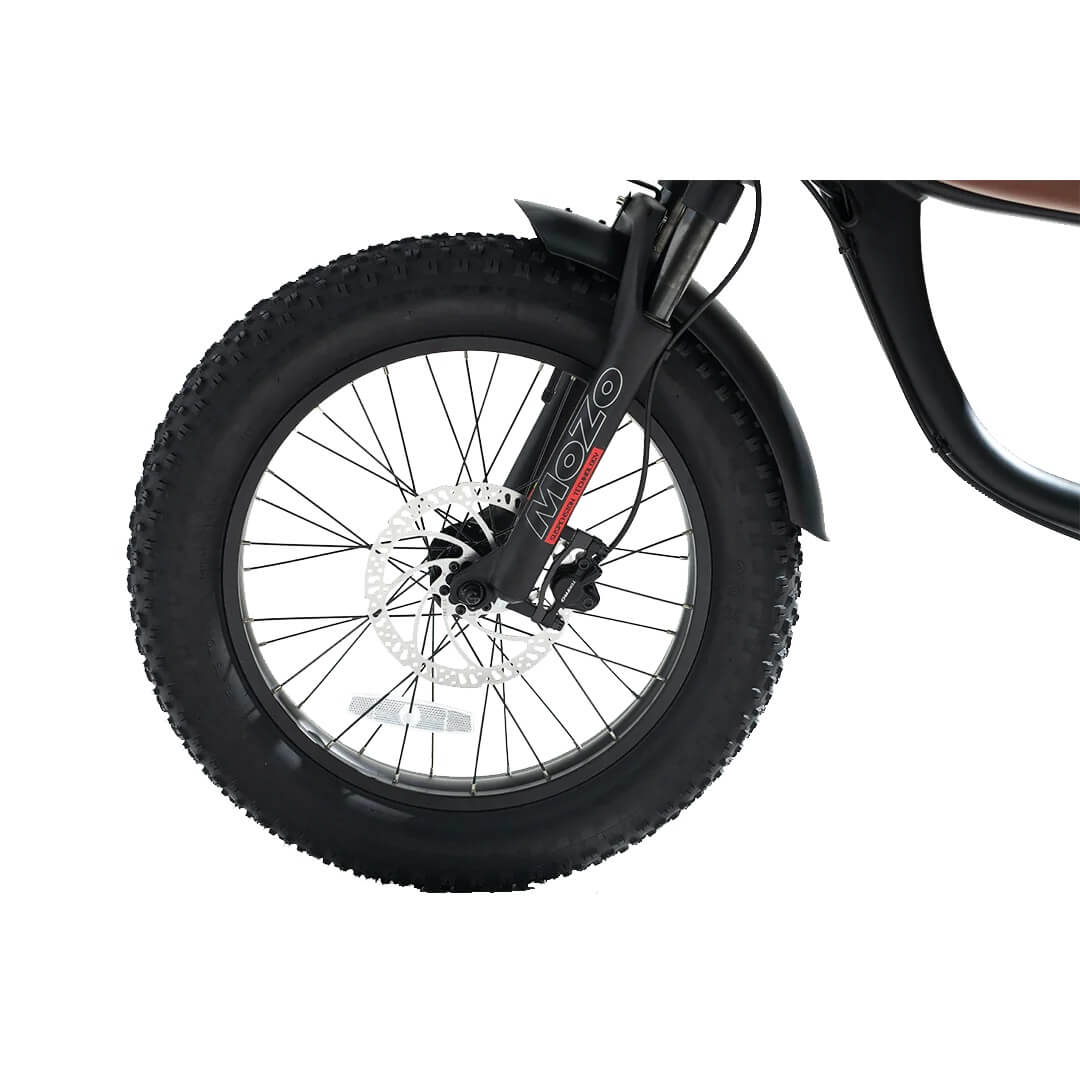

The Mini features 20" x 4" fat tires, perfect for off-road riding or cruising through the urban jungle. These heavy-duty tires combine an aggressive tread with larger, cut, center blocks for tremendous grip and change up to the block-cut edge lug for fantastic cornering traction.

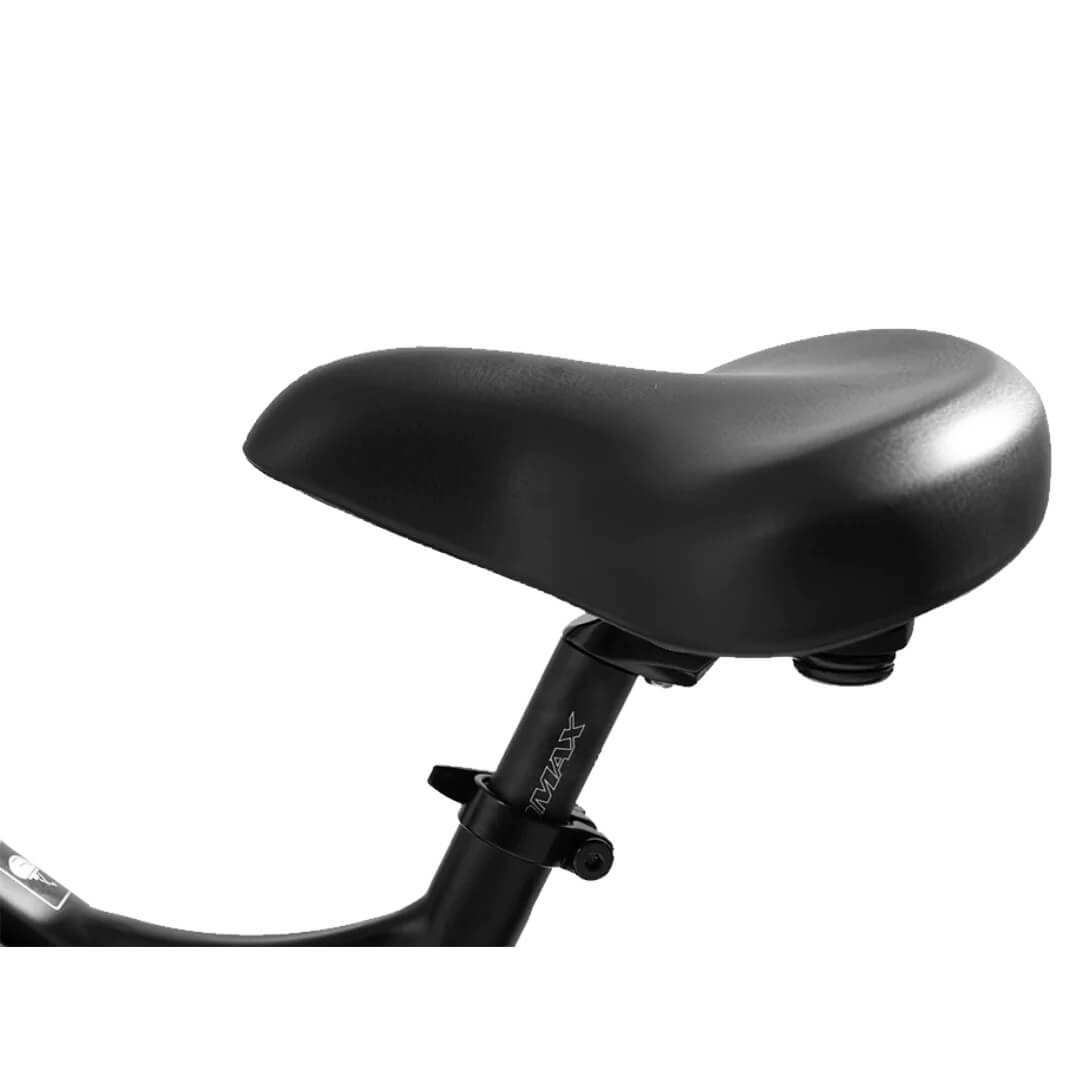

It has a cush saddle, front shocks, adjustable stem, curved handlebars, and hydraulic disc brakes, all contributing to a very comfortable ride.

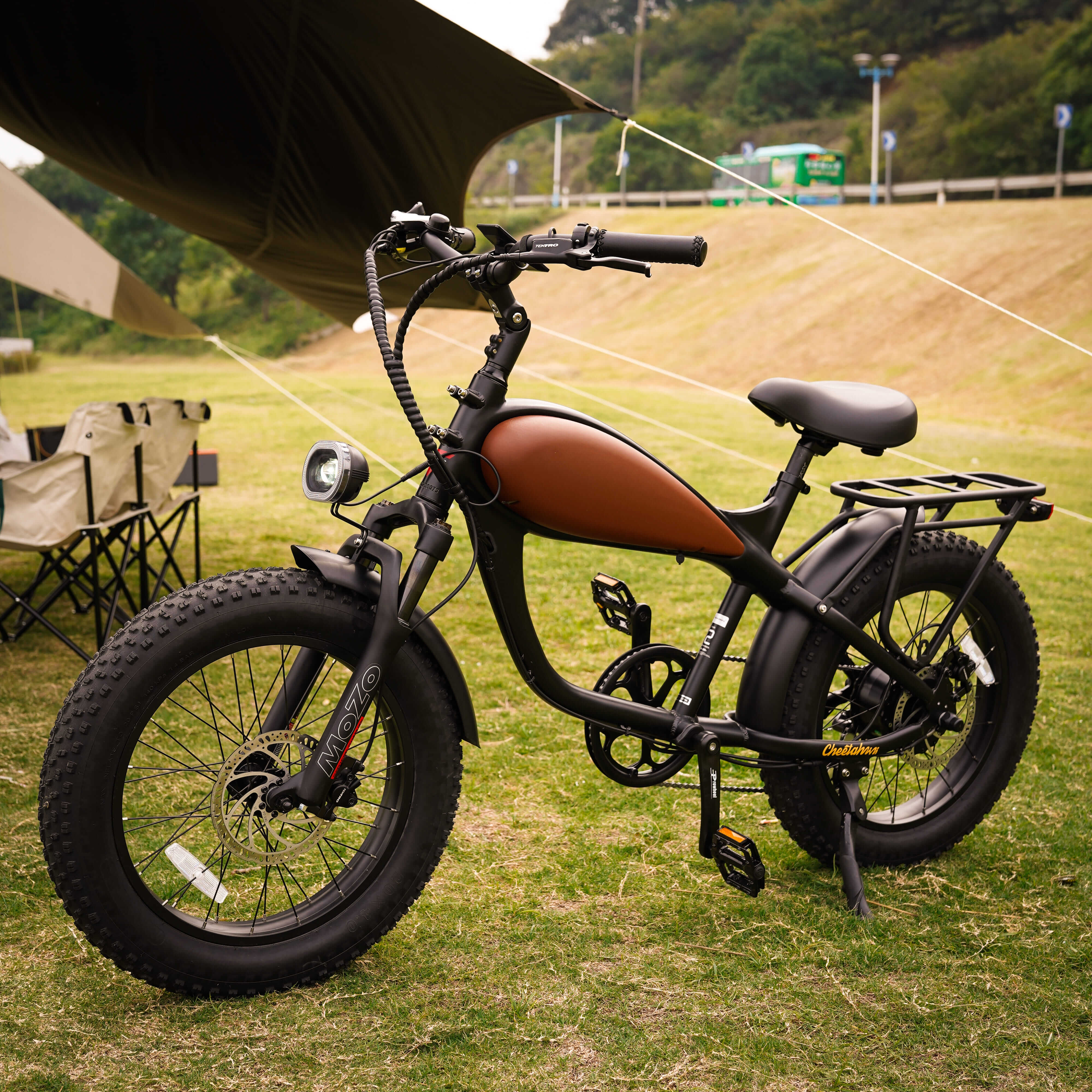

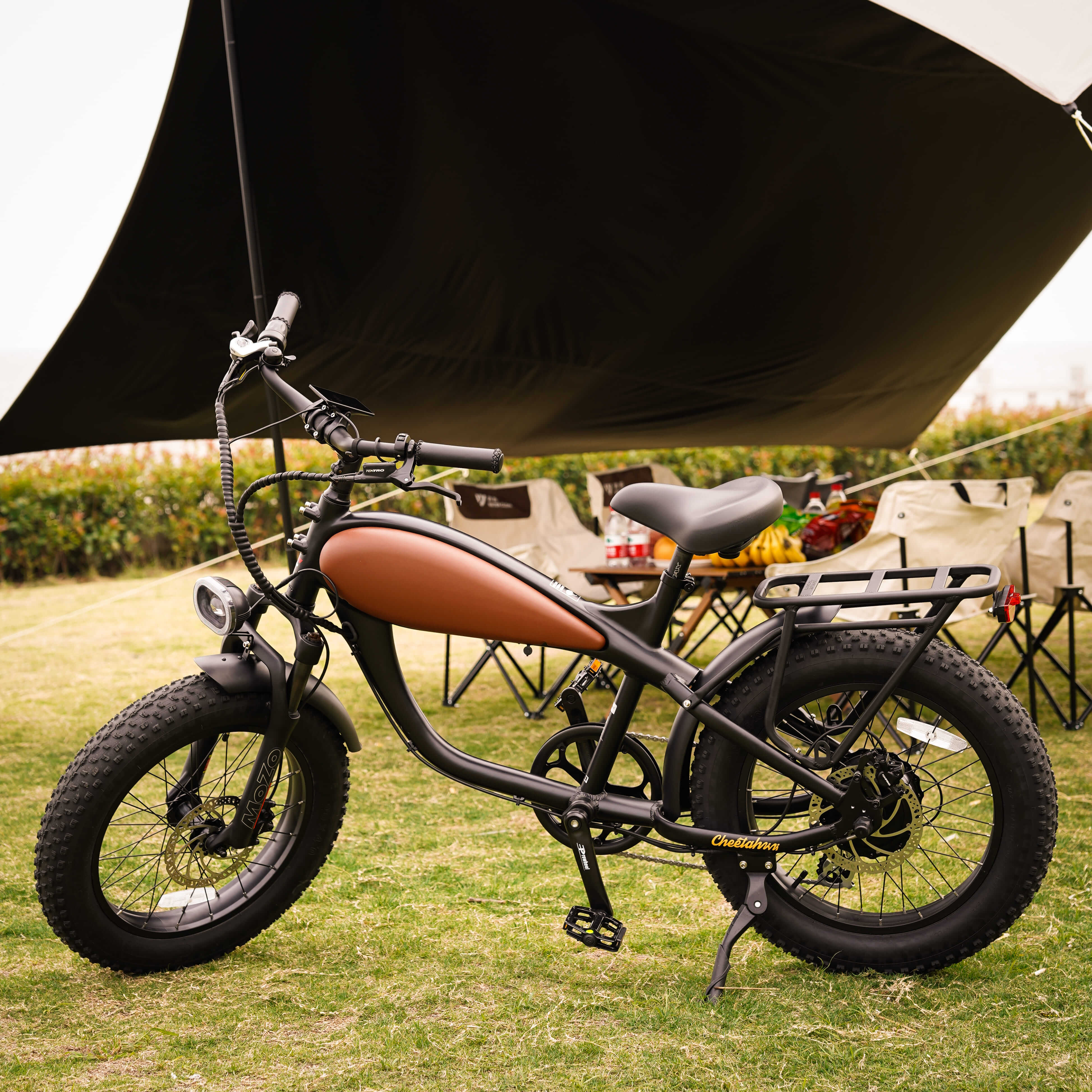

revi cheetah mini outdoors with rider.

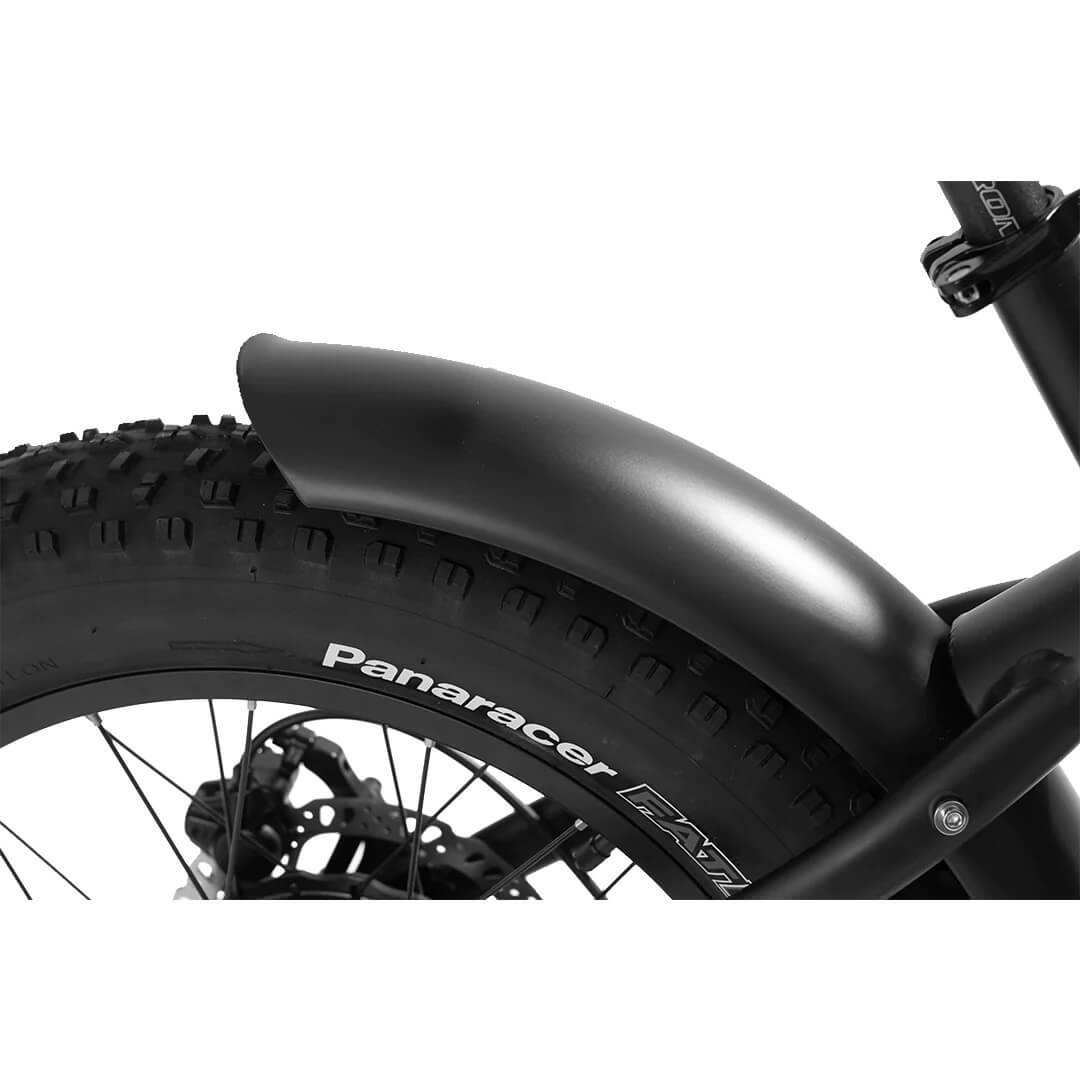

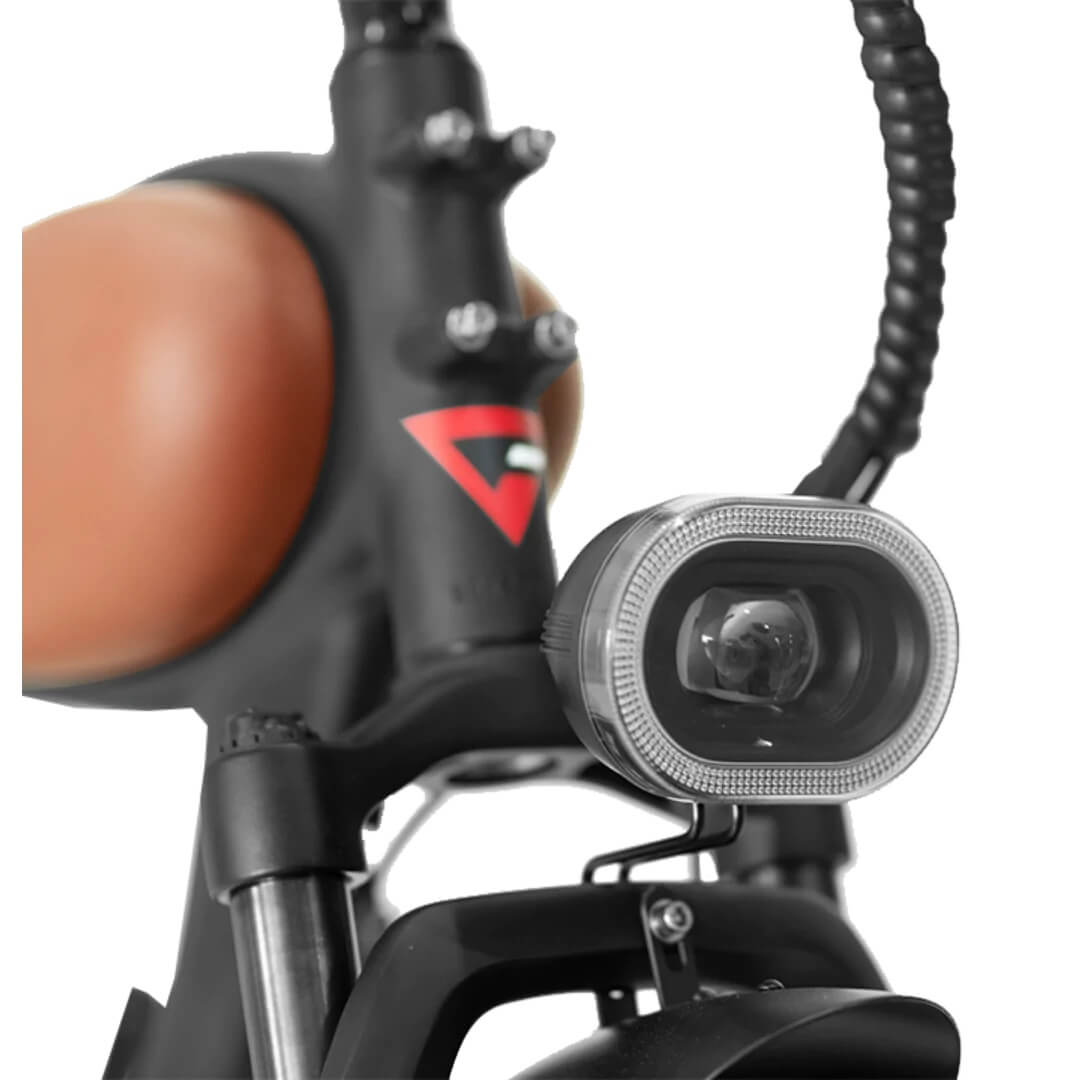

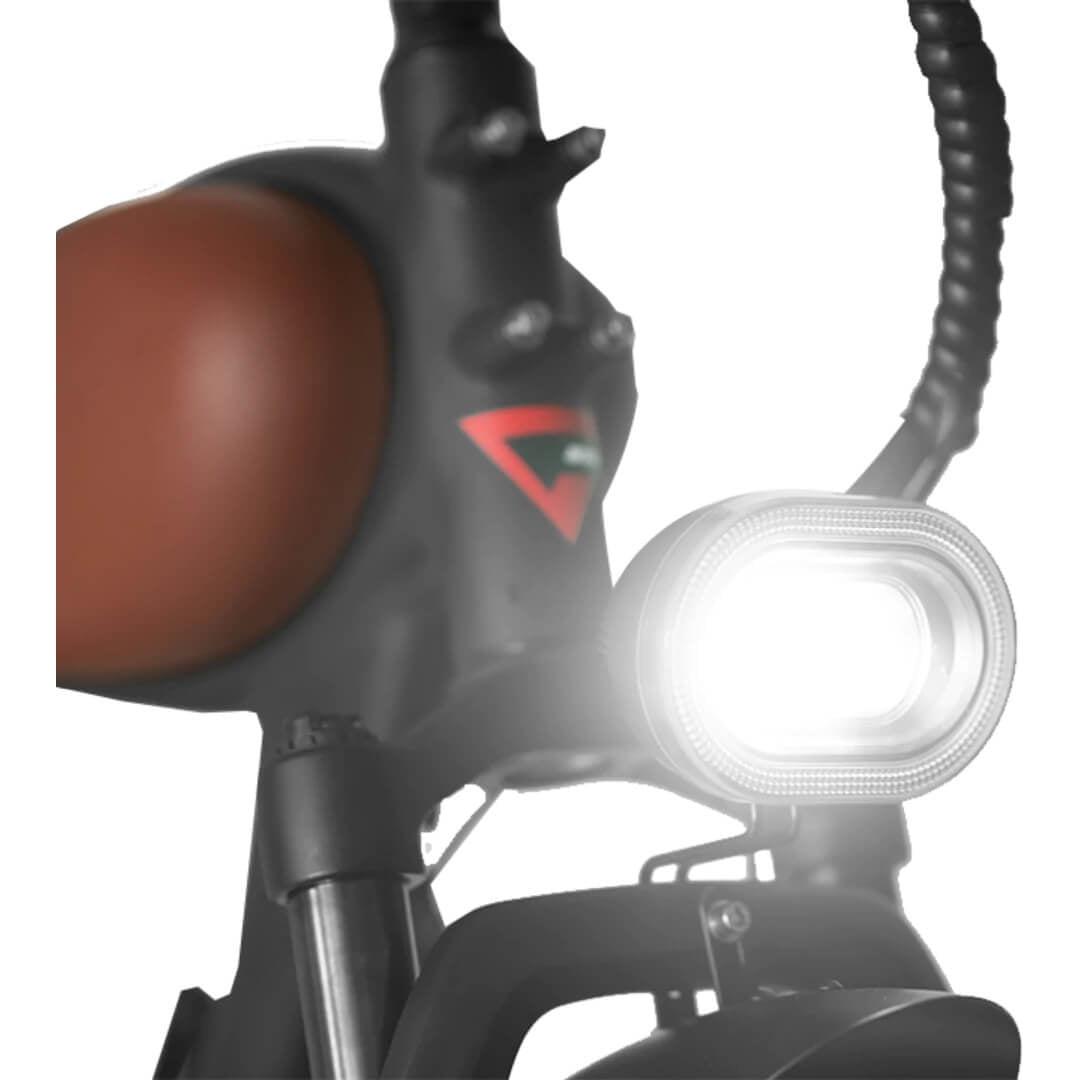

The Cheetah Mini comes equipped with a headlight, fenders, and a bell, as well as front mounts for a front rack or basket.

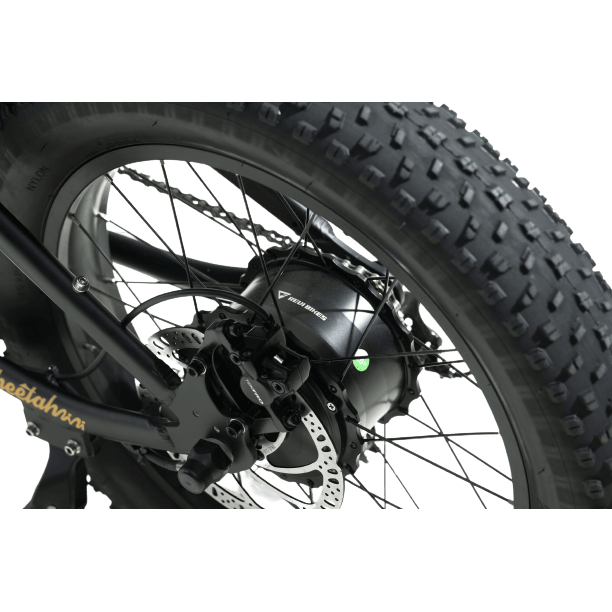

The Cheetah Mini can be ridden like a conventional bike, using only the 7-speed Shimano drivetrain to propel you forward with pedaling action. But when you need a boost, the Mini will not disappoint. It is outfitted with a very robust 500W rear hub motor, paired with a 48V/15Ah batterywith Samsung cells, which is hidden in the teardrop gas tank. You can use the 5-level pedal assist system (PAS) to help you along, or ride pedaling-free using the right-side half-grip twist throttle.

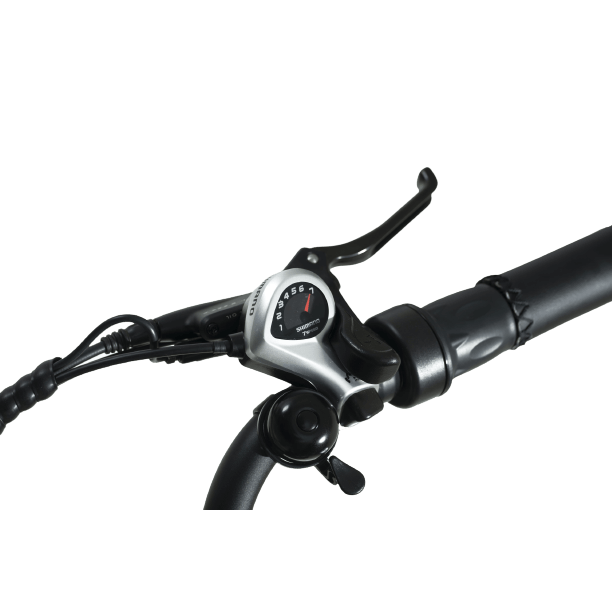

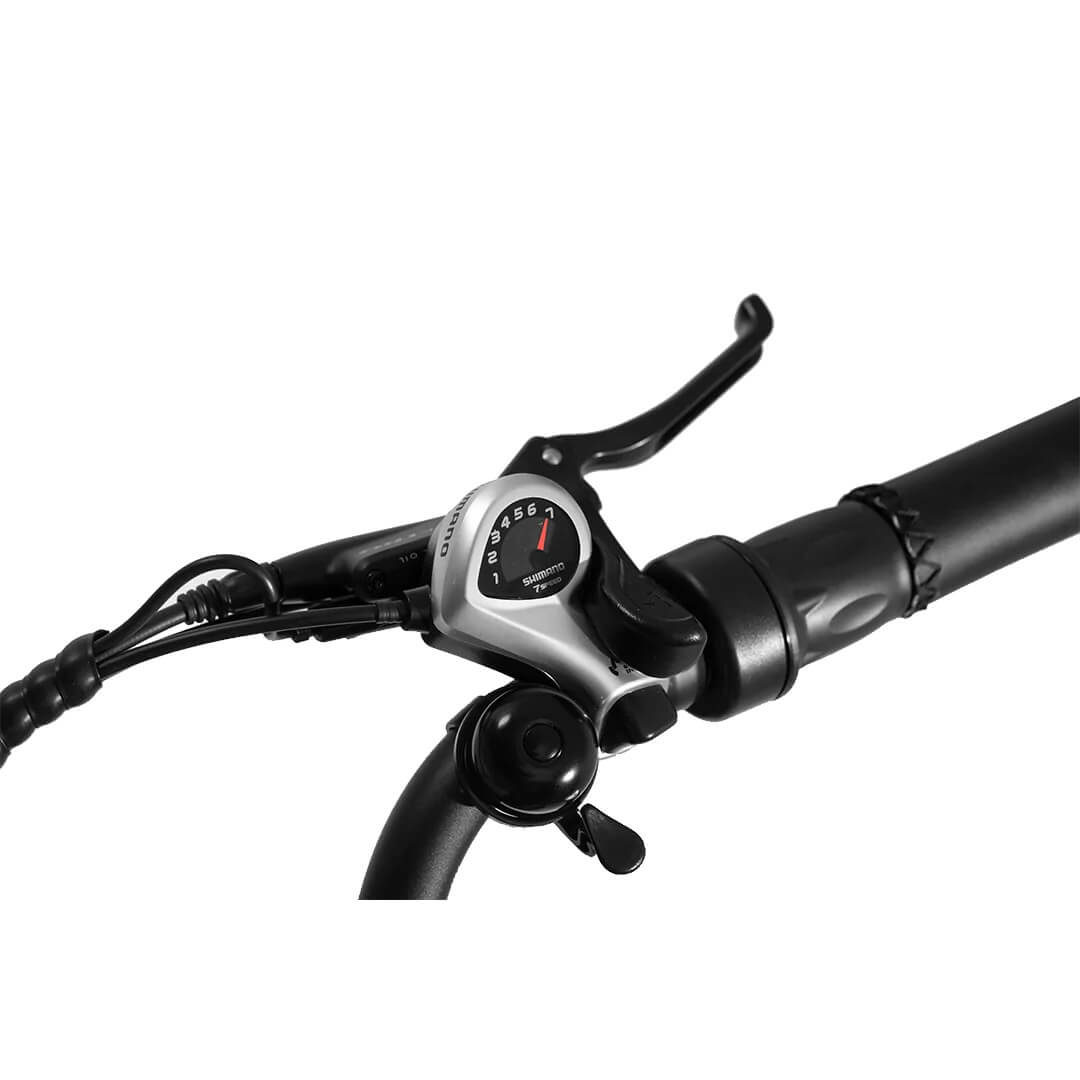

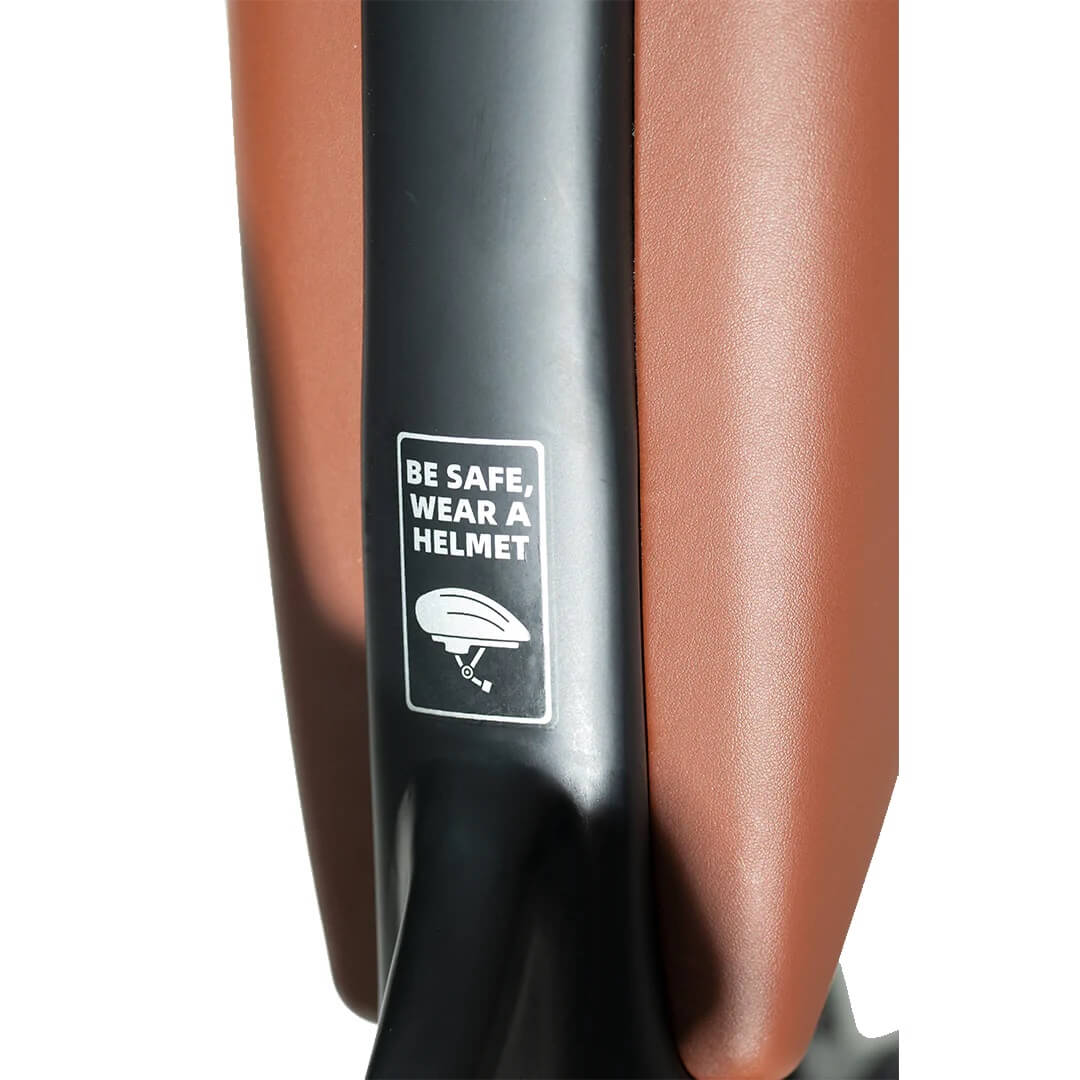

revi cheetah mini component closeups.

Revi Cheetah Mini 500W Specifications

  • Motor: 500W Motor (750W Peak) Revi Bikes™ Rear Hub Motor
  • Battery: 48V/15Ah Lithium-Ion Battery w/ Samsung Cells Hidden in Teardrop Gas Tank
  • Charge Time: 4-6 Hours
  • Drive Modes: 7-Speed Shimano Altus Drivetrain, 5-9 Levels Pedal Assist System (PAS) and Right-Side Half-Grip Twist Throttle

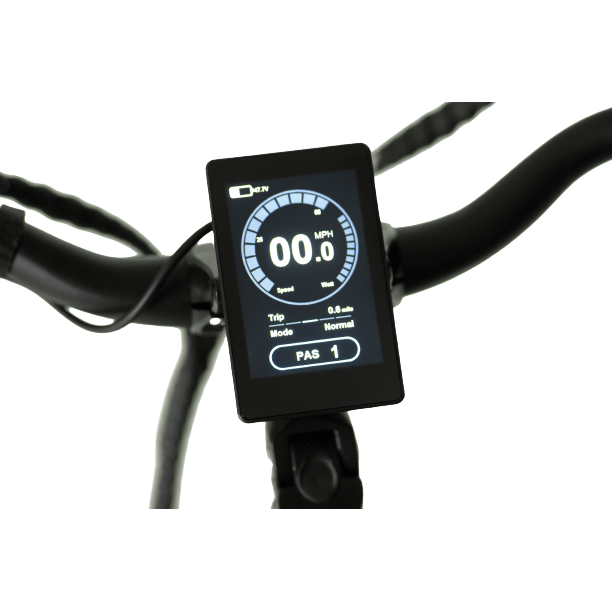

  • Display Type: Fixed, Backlit, Color LCD C900E-USB Display, See Display Manual & Video Instructions Below
  • Frame: Cafe Racer Styled 6061 Aluminum Alloy Frame

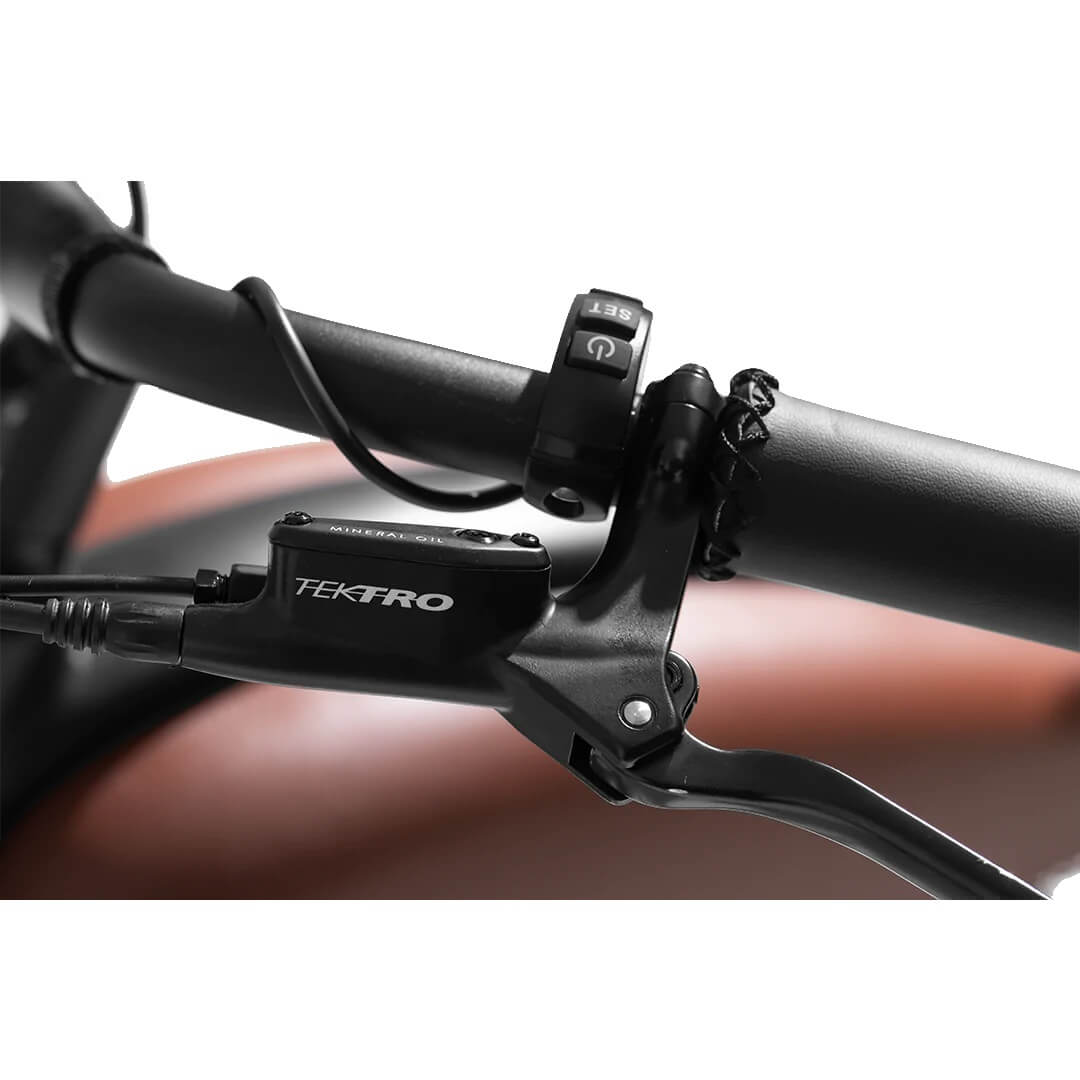

  • Brakes: Front & Rear Tektro™ E350 Hydraulic Disc Brakes w/ 160mm Rotors
  • Stem: Adjustable Stem (adjustable both vertically & horizontally)
  • Tires: 20" x 4.0" Puncture-Resistant Panaracer Fat B Nimble Tires w/ Kevlar Beads
  • Suspension: Mozo™ Suspension Fork
  • Recommended Rider Height: 4'-11" - 5'-9"
  • Max Assisted Speed: 20 mph on Throttle, 28 mph on Pedal Assist
  • Weight: 62 Lbs. w/ Battery
  • Max Load Capacity: 300 Lbs
  • Wheelbase: 45"
  • Seat Tube: 16"
  • Standover Height: 22.5"
  • Handlebar Height: 37" - 39.5"
  • Total Length: 68"
  • Reach: 21" - 22.5"
  • Seat Height: 31" - 36"
  • Accessories: Fenders, Front Light, Bell, Kickstand

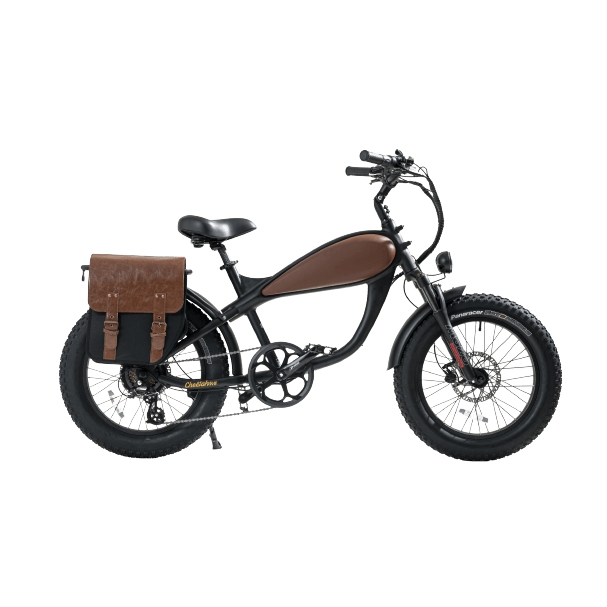

  • Bag: PU Leather Saddle Bag Sold Separately. Capacity 25kg/55.11 Lbs
  • AssemblyThe Cheetah Mini comes mostly assembled. Final assembly includes attachment of the front wheel, front fender, lights, pedals and handlebar. Please see the assembly video below.
  • Tools Required: 5mm, 15mm Wenches, Revi Multi-Tool (or 4mm & 5mm Allen Hex Keys) Included
  • Shipping: Free shipping from the Los Angeles area warehouse to the lower 48. We are unable to ship this brand to Alaska, Hawaii or Canada at this time.

For a comparison of all the Cheetah models, check out this blog post. We have also added the Mini to our list of the Best Fat Tire Electric Bikes, and out list of the Coolest Electric Bikes.

Cheetah Mini Size & Fit Chart

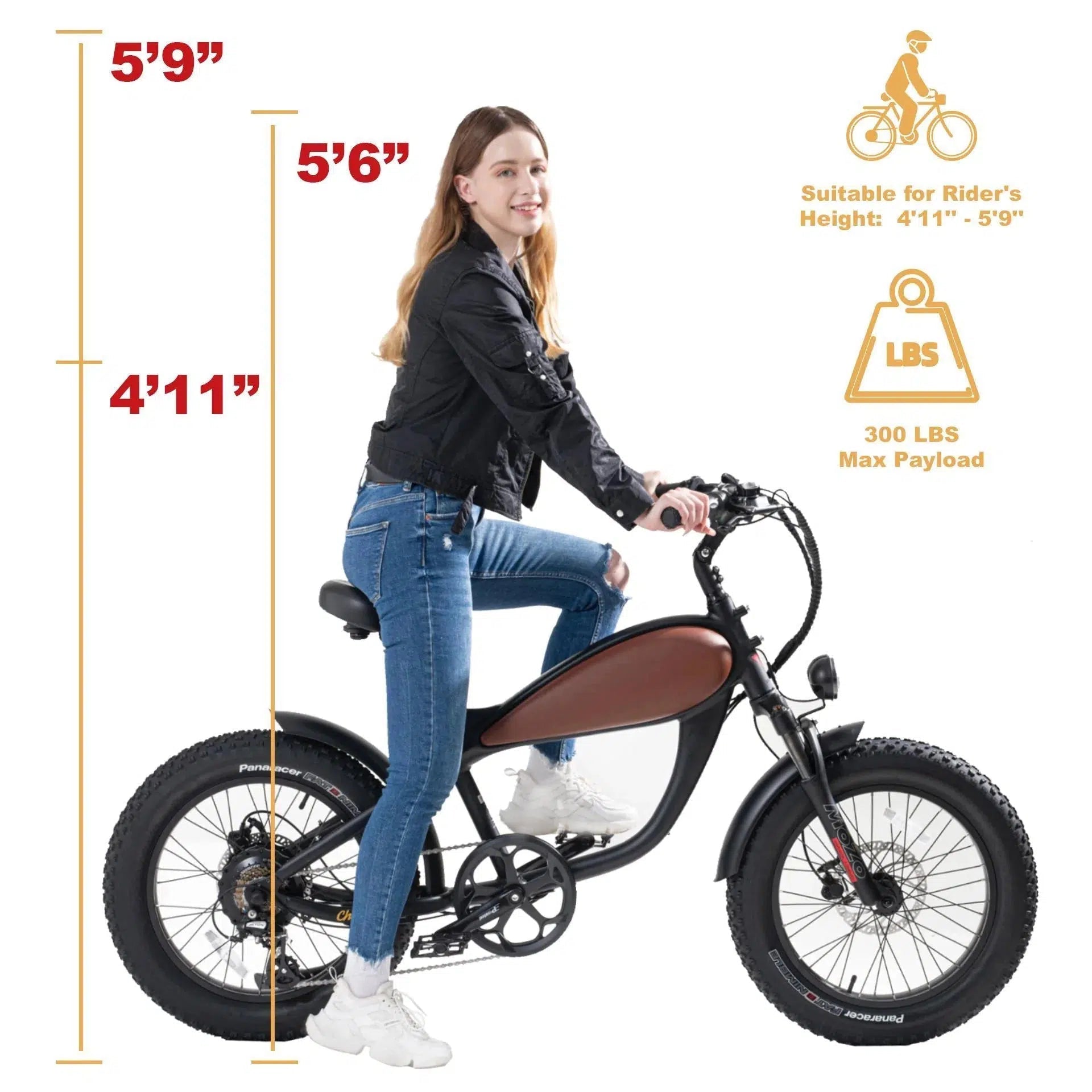

revi cheetah mini size fit guide

What's Included

revi cheetah mini

Revi Bikes Cheetah User's Manual

Cheetah Color LCD C900E-USB Display Manual

Cheetah Mini Color LCD C900E-USB Instructional Video

Cheetah Mini Assembly Video Guide
