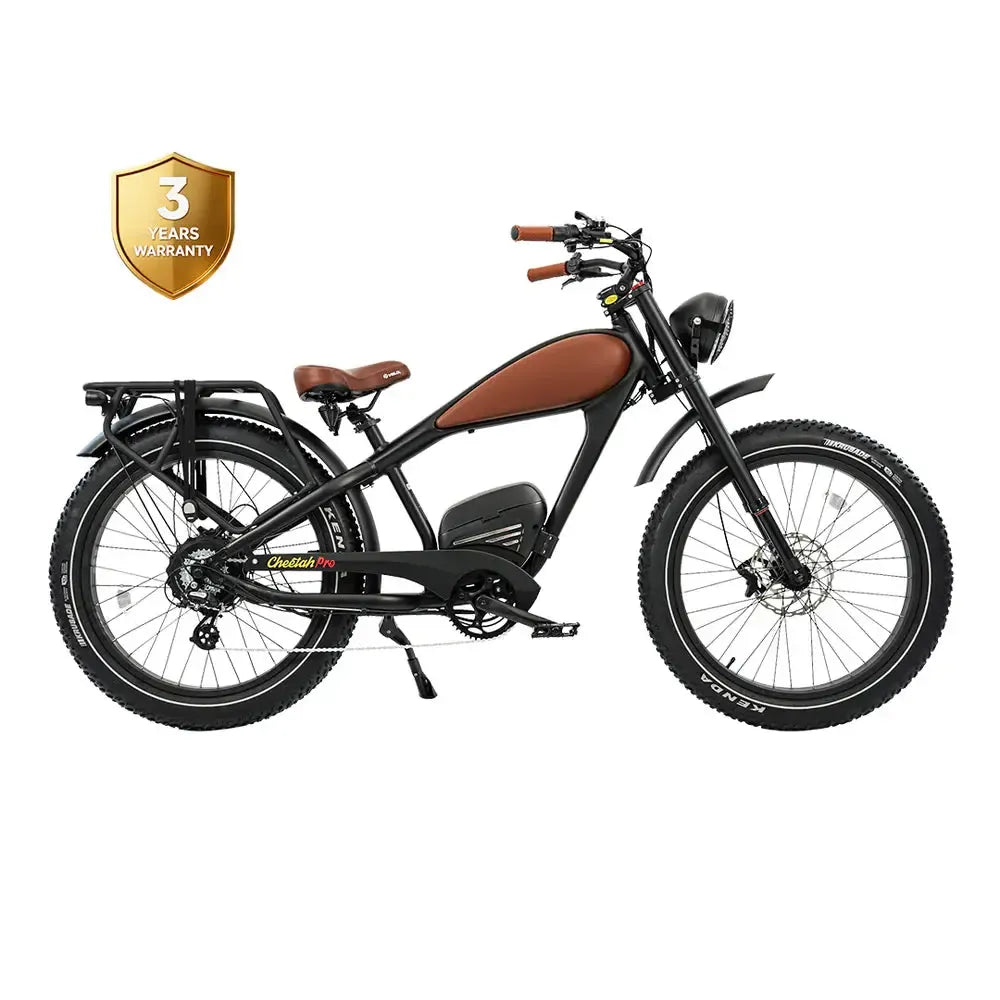

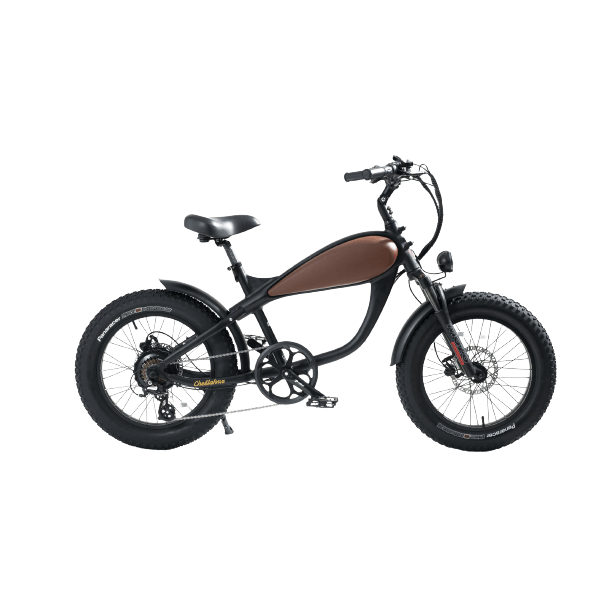

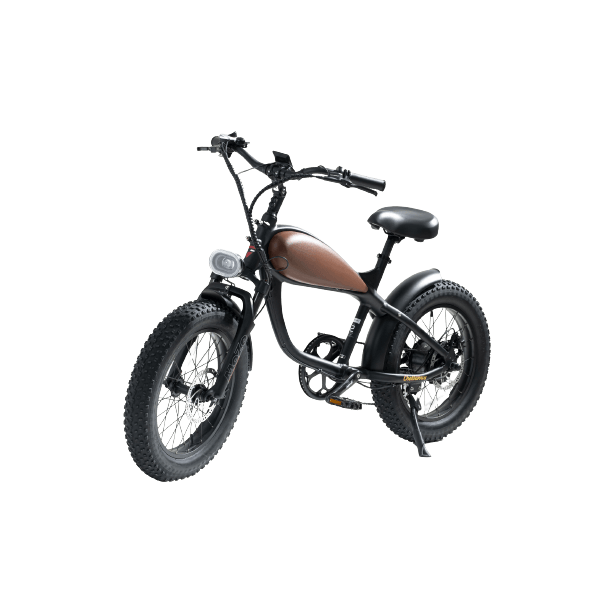

Revi Bikes Cheetah Pro 1440W 48V/30Ah Fat Tire Electric Bike

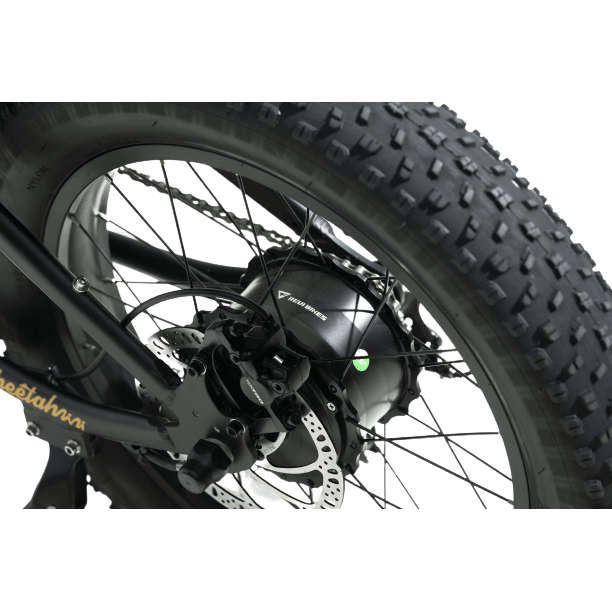

⚡1440W Motor (1700W Peak) Rear Hub Motor

⚡48V/30Ah Lithium-Ion Battery w/ Samsung Cells in Teardrop Tank

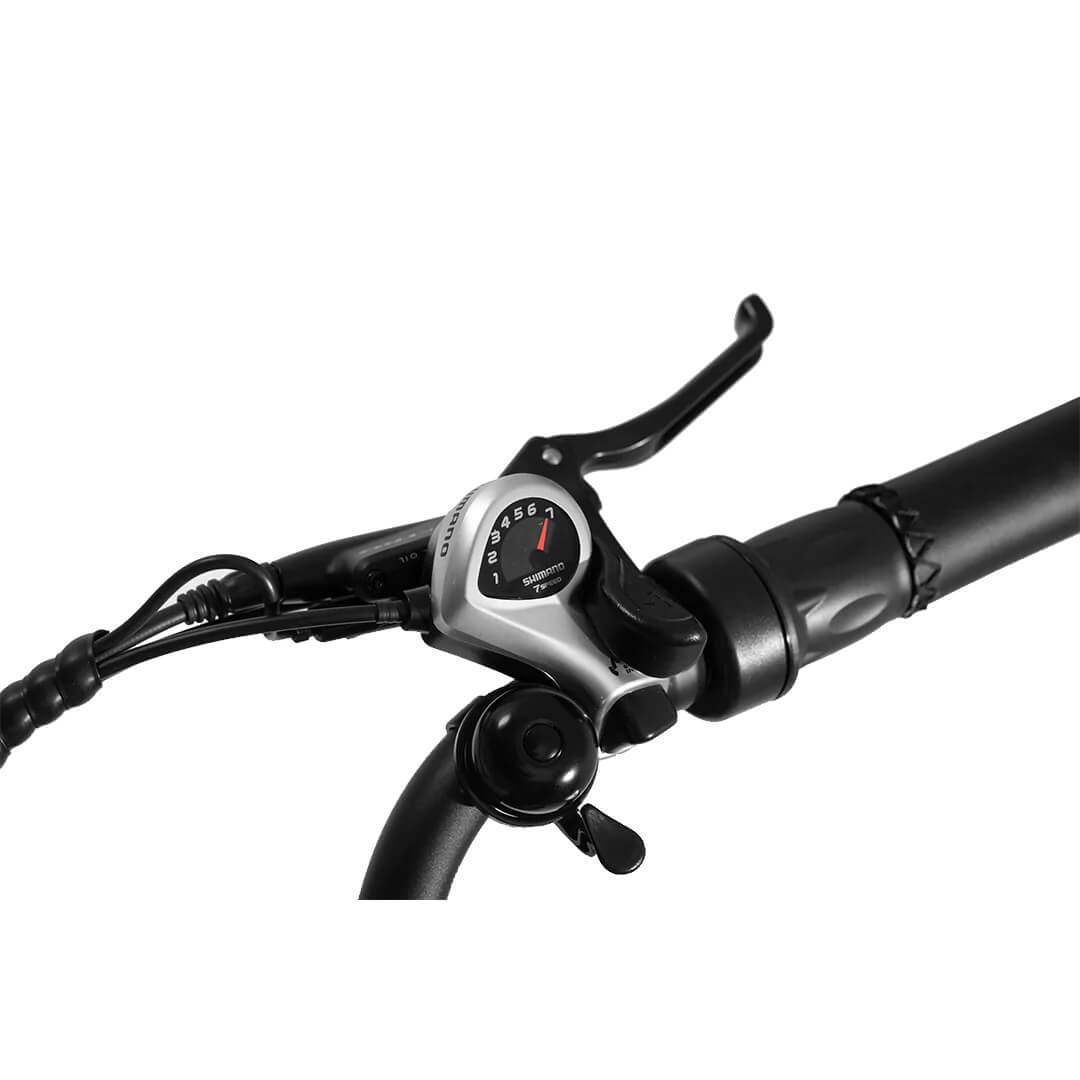

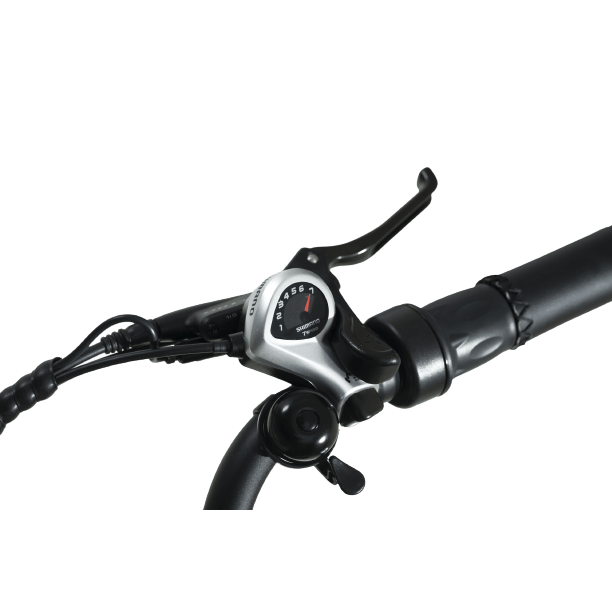

⚡7-Speed Shimano Altus Drivetrain w/ 5-Level Pedal Assist System (PAS) & Twist Throttle

Revi Cheetah Pro Description

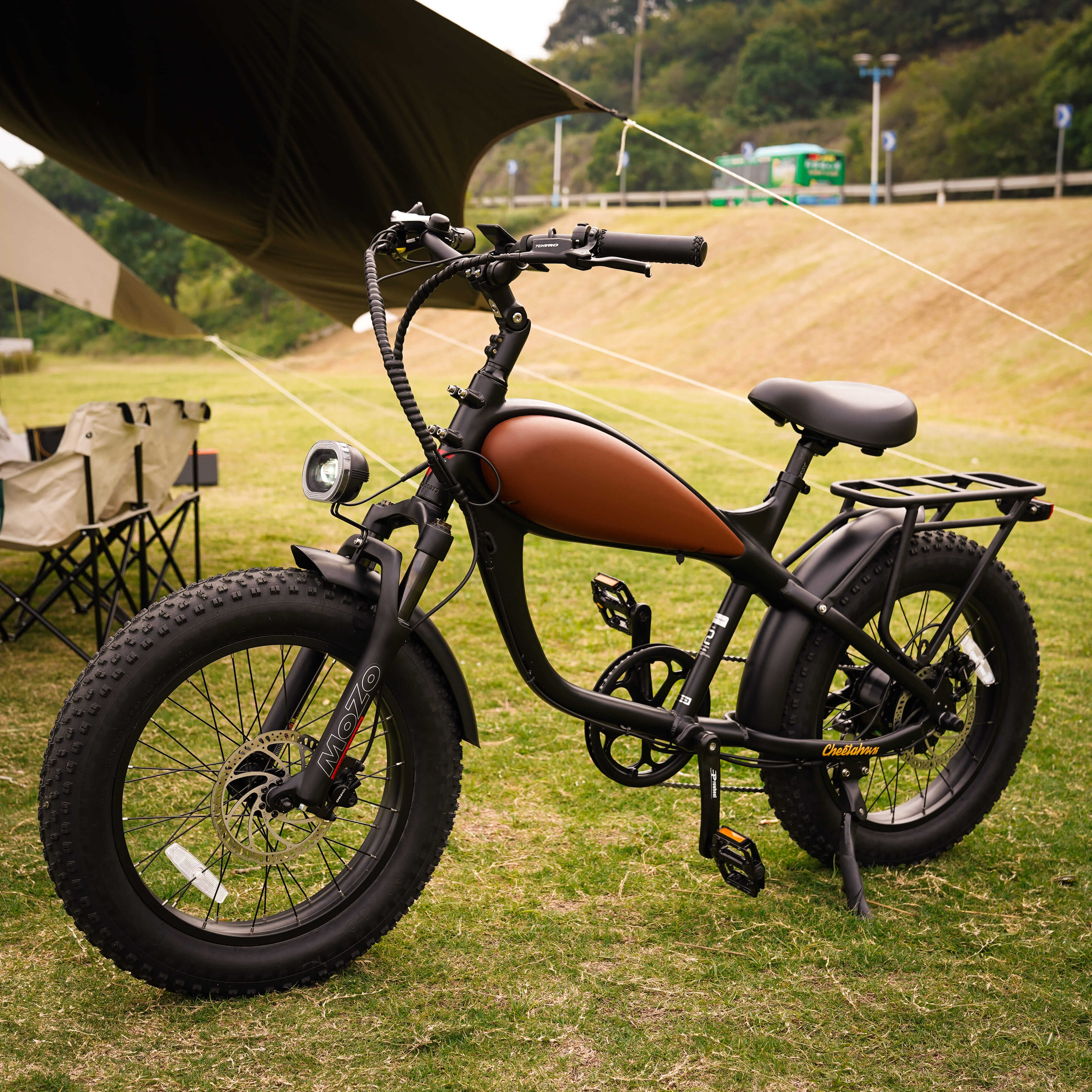

The new Revi Cheetah Pro includes the retro cafe racer stylings that made the OG Original Cheetah electric bike so famous. But they have come up with a revolutionary new design, that has shrunk the dimensions to fit more customers. For a comparison of the different Cheetah models, check out our latest blog post.

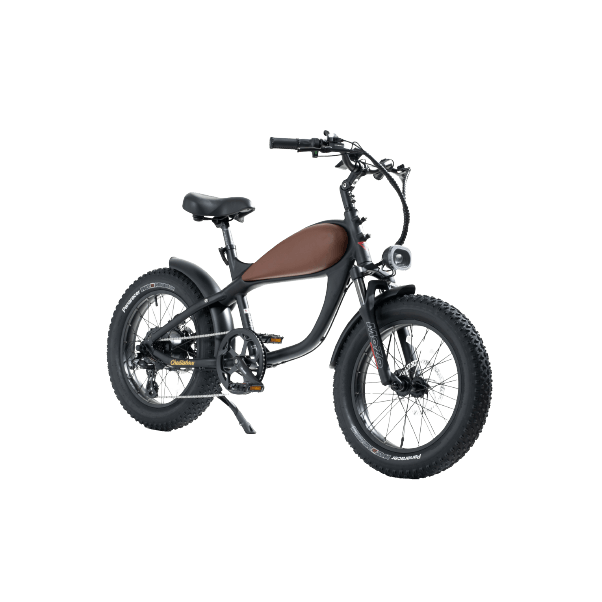

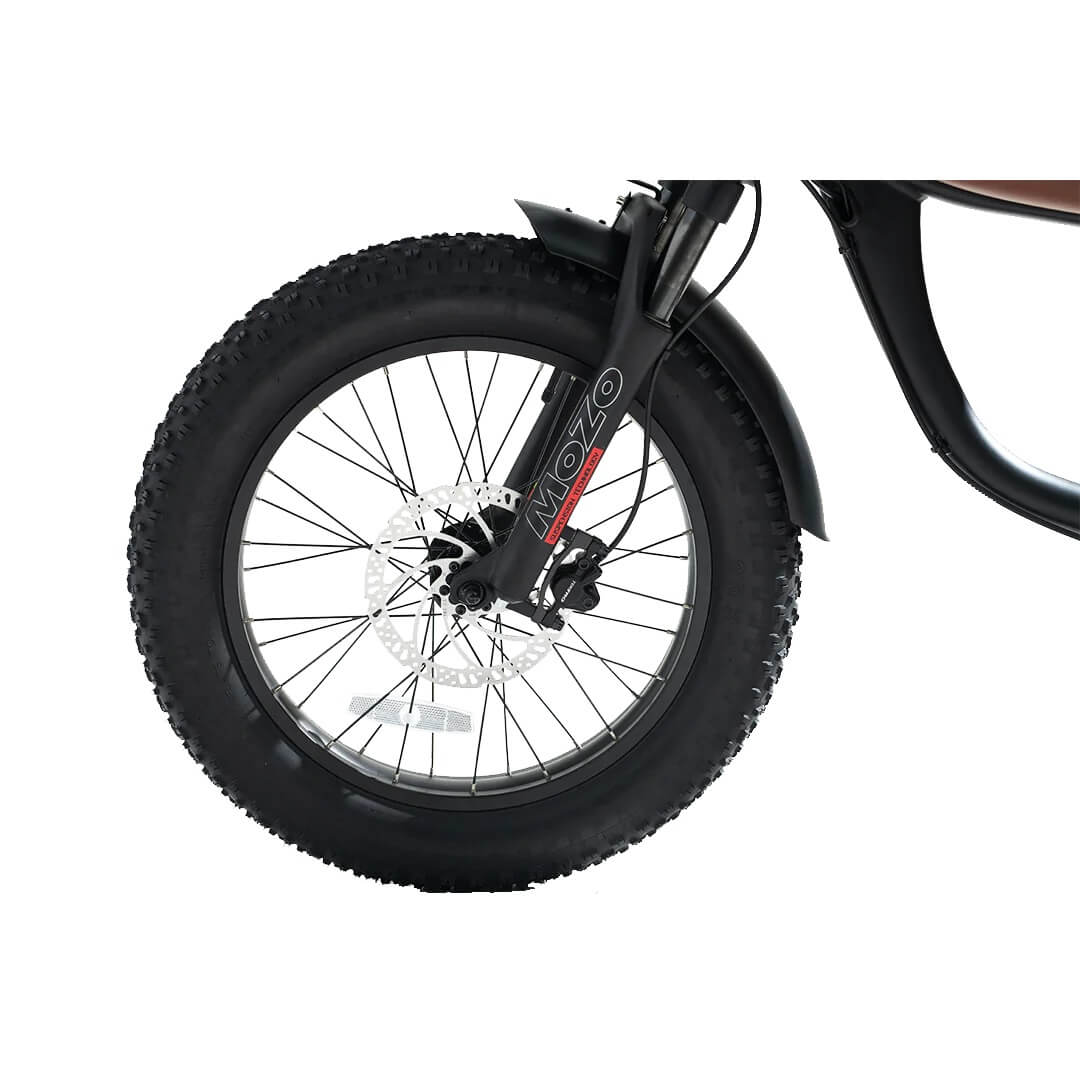

The Mini features 20" x 4" fat tires, perfect for off-road riding or cruising through the urban jungle. These heavy-duty tires combine an aggressive tread with larger, cut, center blocks for tremendous grip and change up to the block-cut edge lug for fantastic cornering traction.

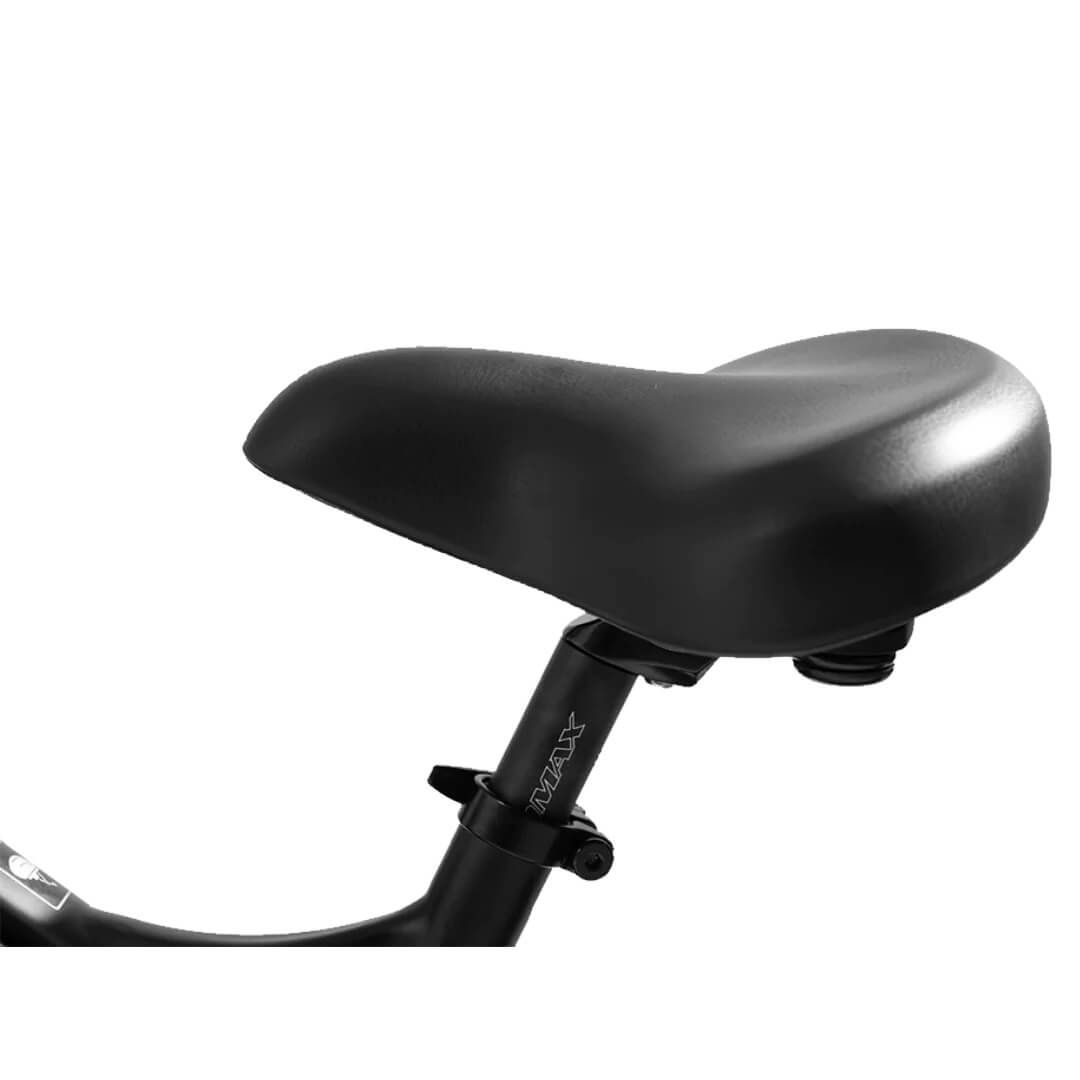

It has a cush saddle, front shocks, adjustable stem, curved handlebars, and hydraulic disc brakes, all contributing to a very comfortable ride.

Custom Assist Settings

The advanced settings allow you to fully personalize the pedal assist (PAS) experience. You can individually define the power output—from 1% to 100%—for each of the 5 assistance levels.

*For a safe and comfortable start, we recommend beginning with a moderate acceleration setting.

3 Smart Sensing Types

Tailor every ride to your mood and goal. Select Torque Sensor for dynamic, responsive assistance ideal for workouts, or choose Cadence Sensor for effortless and steady cruising. For the best of both worlds, Hybrid Mode intelligently combines Torque below 13 mph for natural acceleration and Cadence beyond that for smooth, maintained support.

Revi Cheetah Pro 1440W Specifications

• Motor: 48V 750W Rated
• Motor Peak Output: 1700W
• Battery Cell: Samsung
• Battery Type: Lithium-ion
• Battery Capacity: 48V 30ah （15ah+15ah）
• Charger: 48V 5A

• Charge Time: 4-6 Hours

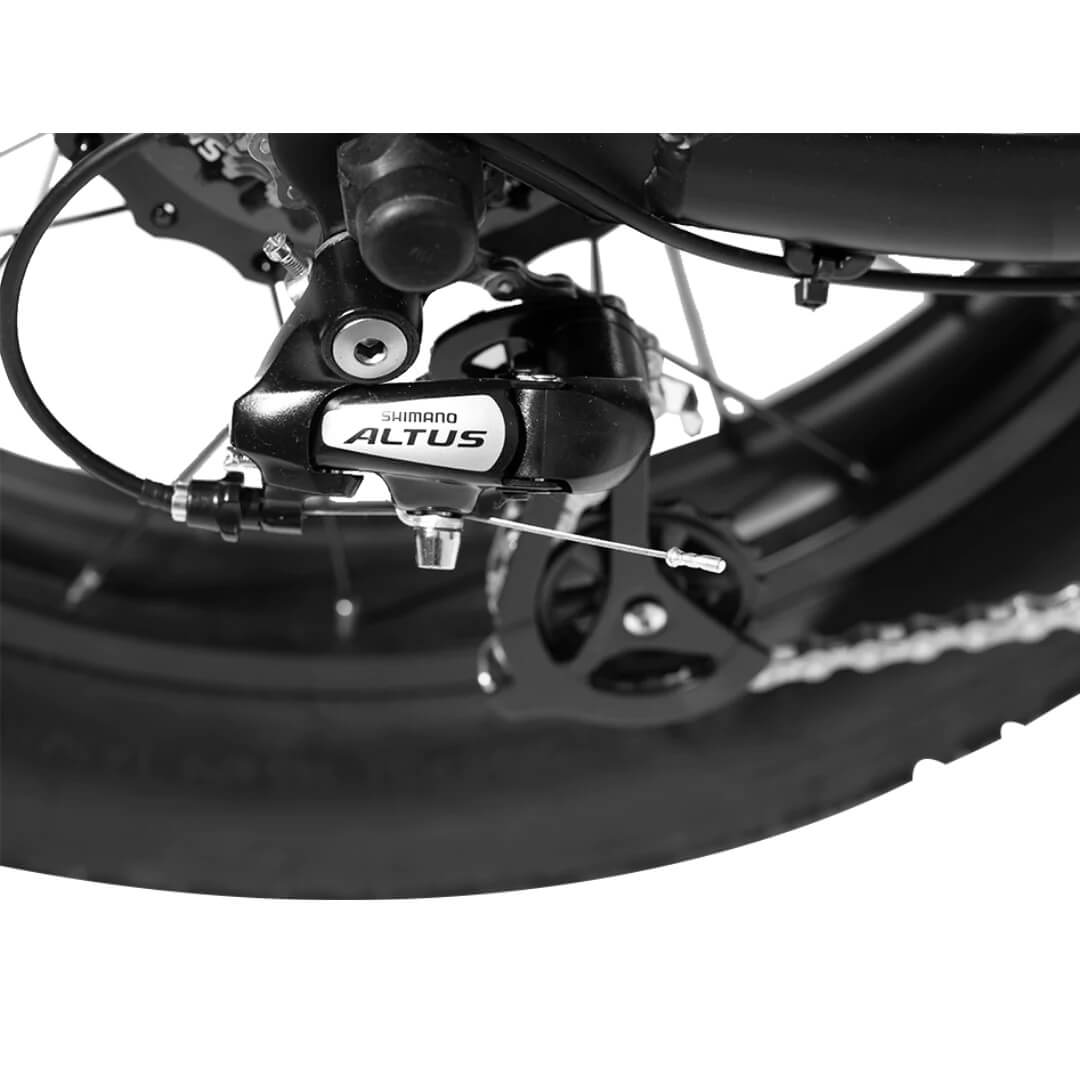

• Drive Modes: 7-Speed Shimano Altus Drivetrain, 5-9 Levels Pedal Assist System (PAS) and Right-Side Half-Grip Twist Throttle

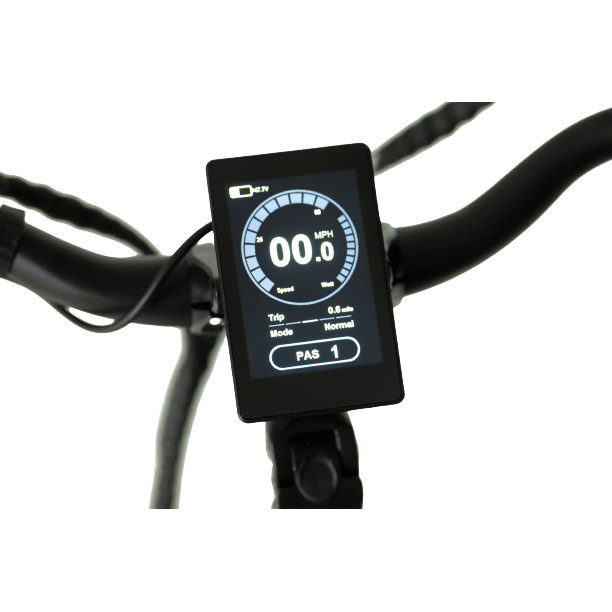

• Display Type: Fixed, Backlit, Color LCD C900E-USB Display, See Display Manual & Video Instructions Below
• Frame: Cafe Racer Styled 6061 Aluminum Alloy Frame

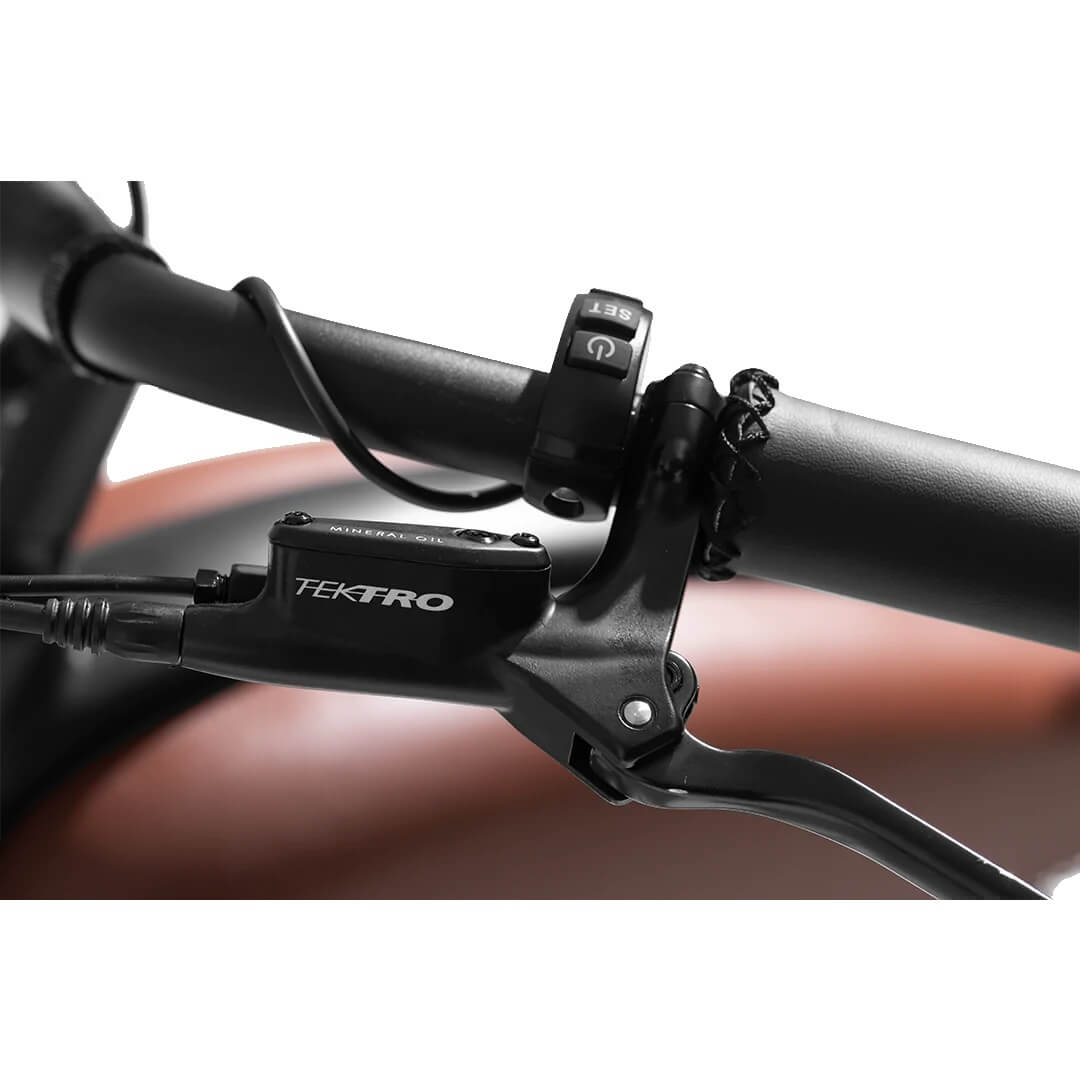

• Brakes: Front & Rear Tektro™ E350 Hydraulic Disc Brakes w/ 160mm Rotors
• Stem: Adjustable Stem (adjustable both vertically & horizontally)

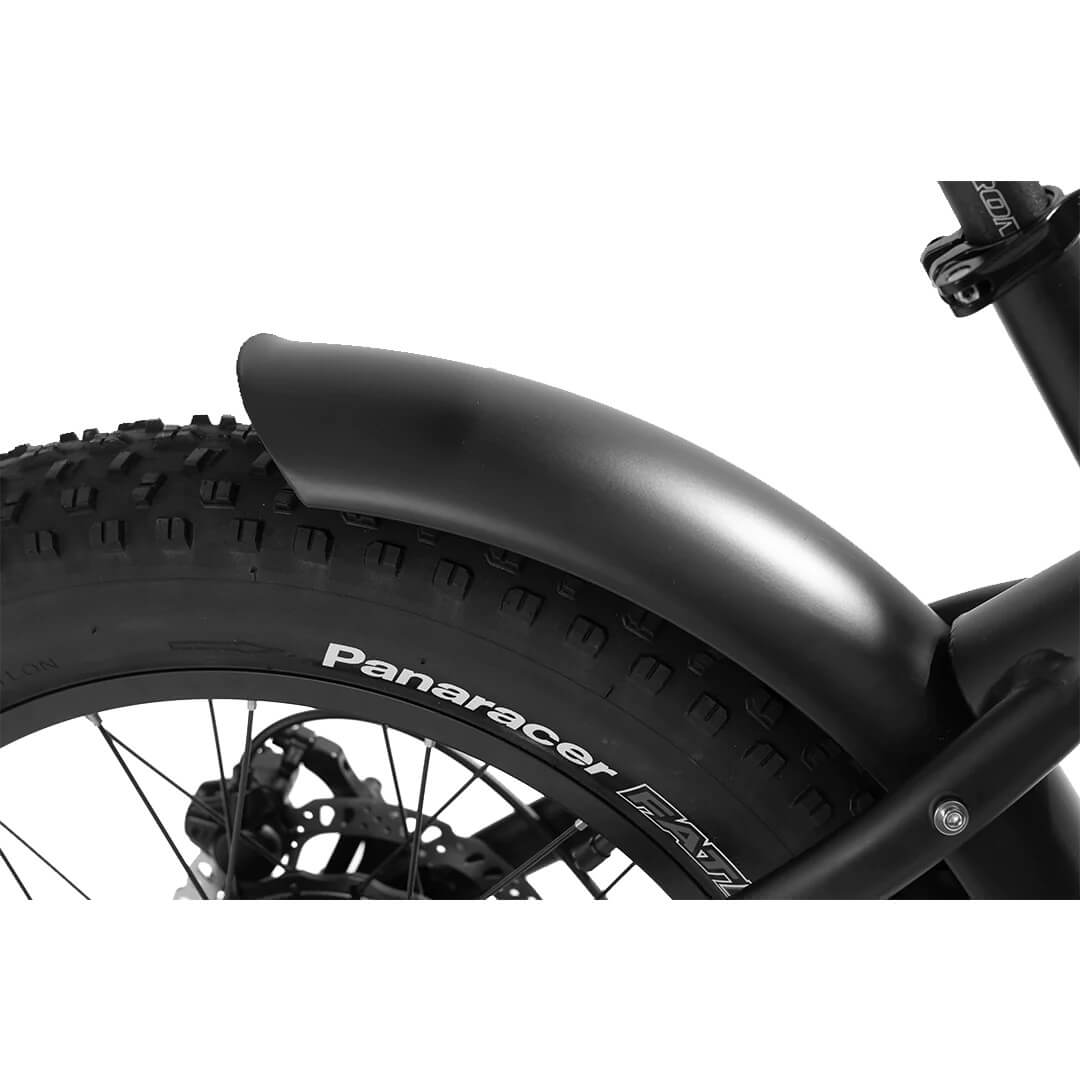

• Tires: 20" x 4.0" Puncture-Resistant Panaracer Fat B Nimble Tires w/ Kevlar Beads
• Suspension: Mozo™ Suspension Fork

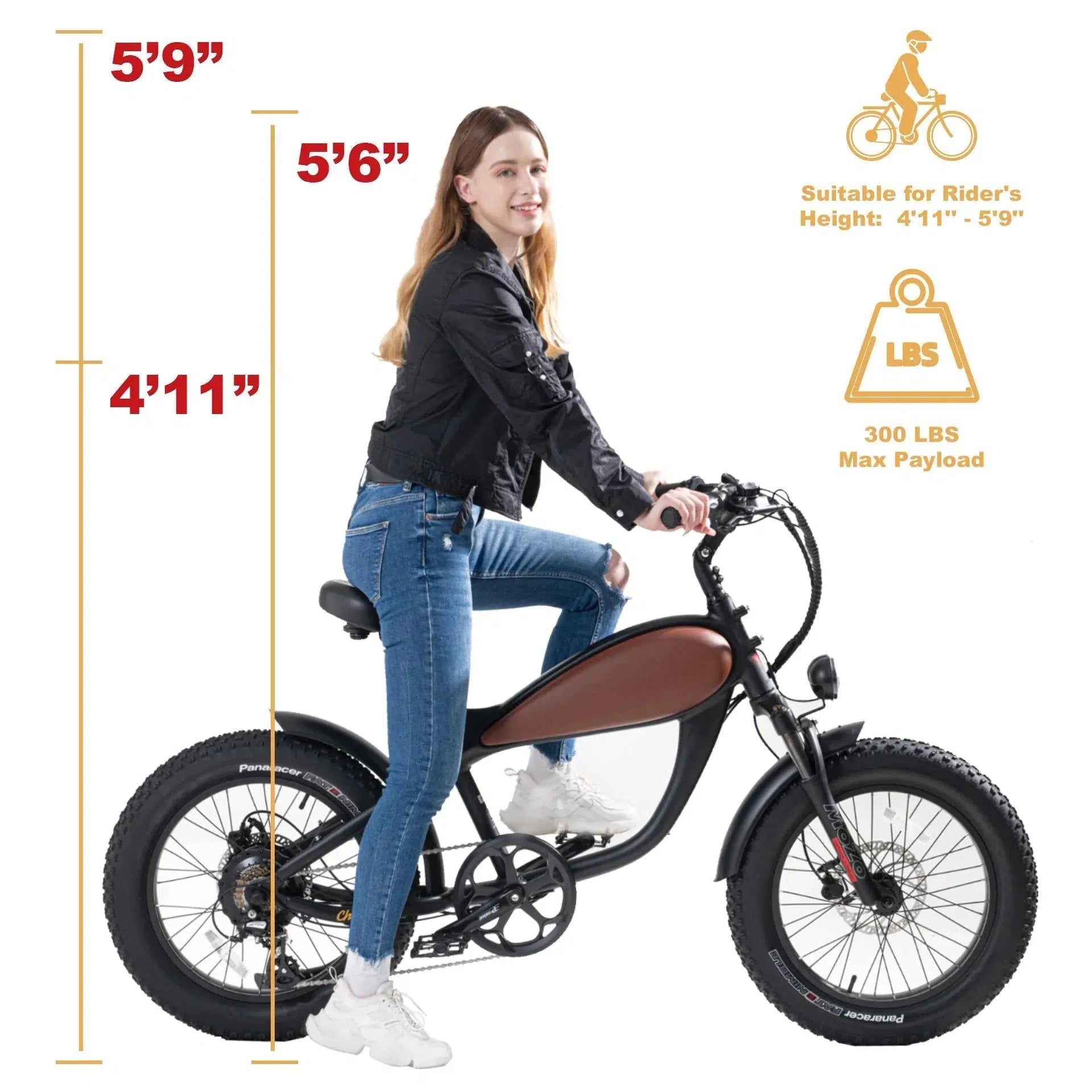

• Recommended Rider Height: 4'-11" - 5'-9"
• Max Assisted Speed: 20 mph on Throttle, 28 mph on Pedal Assist
• Weight: 62 Lbs. w/ Battery
• Max Load Capacity: 300 Lbs
• Wheelbase: 45"
• Seat Tube: 16"

• Standover Height: 22.5"
• Handlebar Height: 37" - 39.5"
• Total Length: 68"
• Reach: 21" - 22.5"
• Seat Height: 31" - 36"

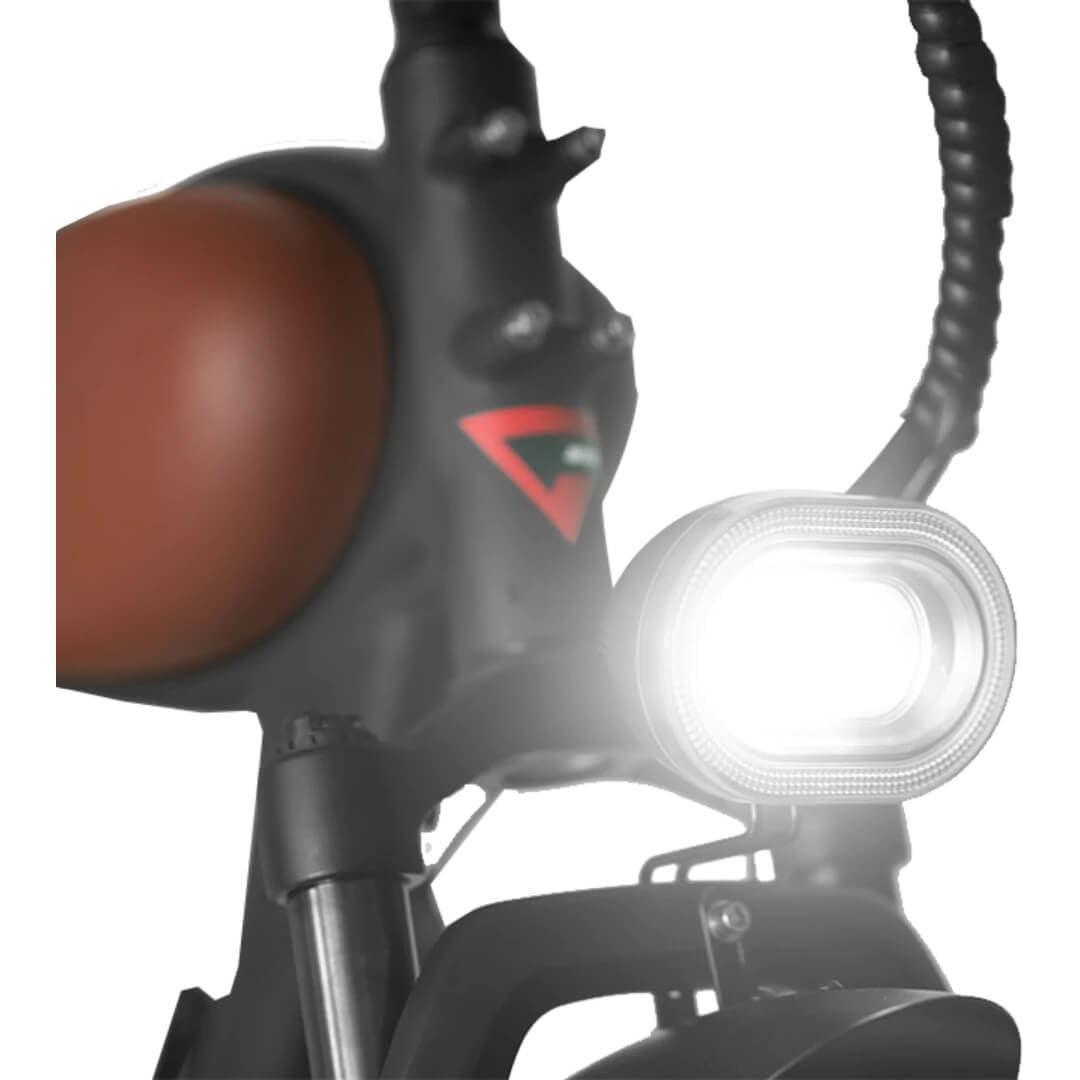

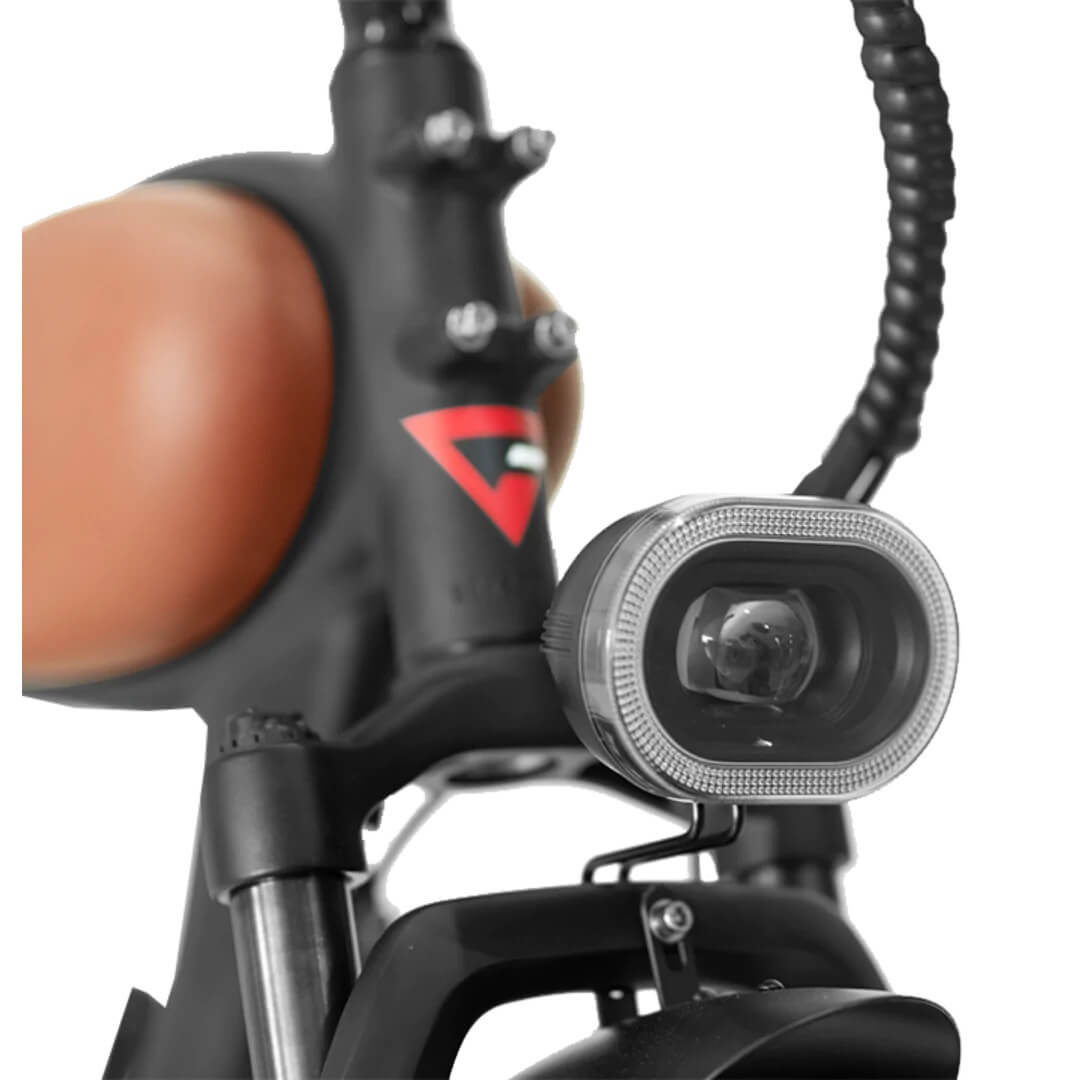

• Accessories: Fenders, Front Light, Bell, Kickstand

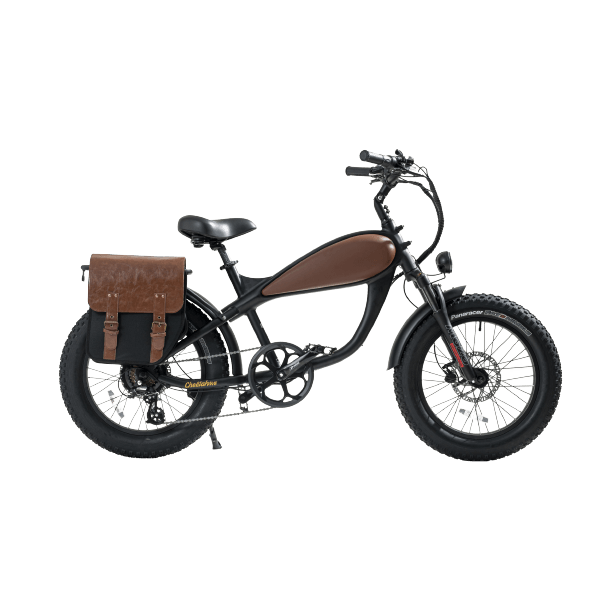

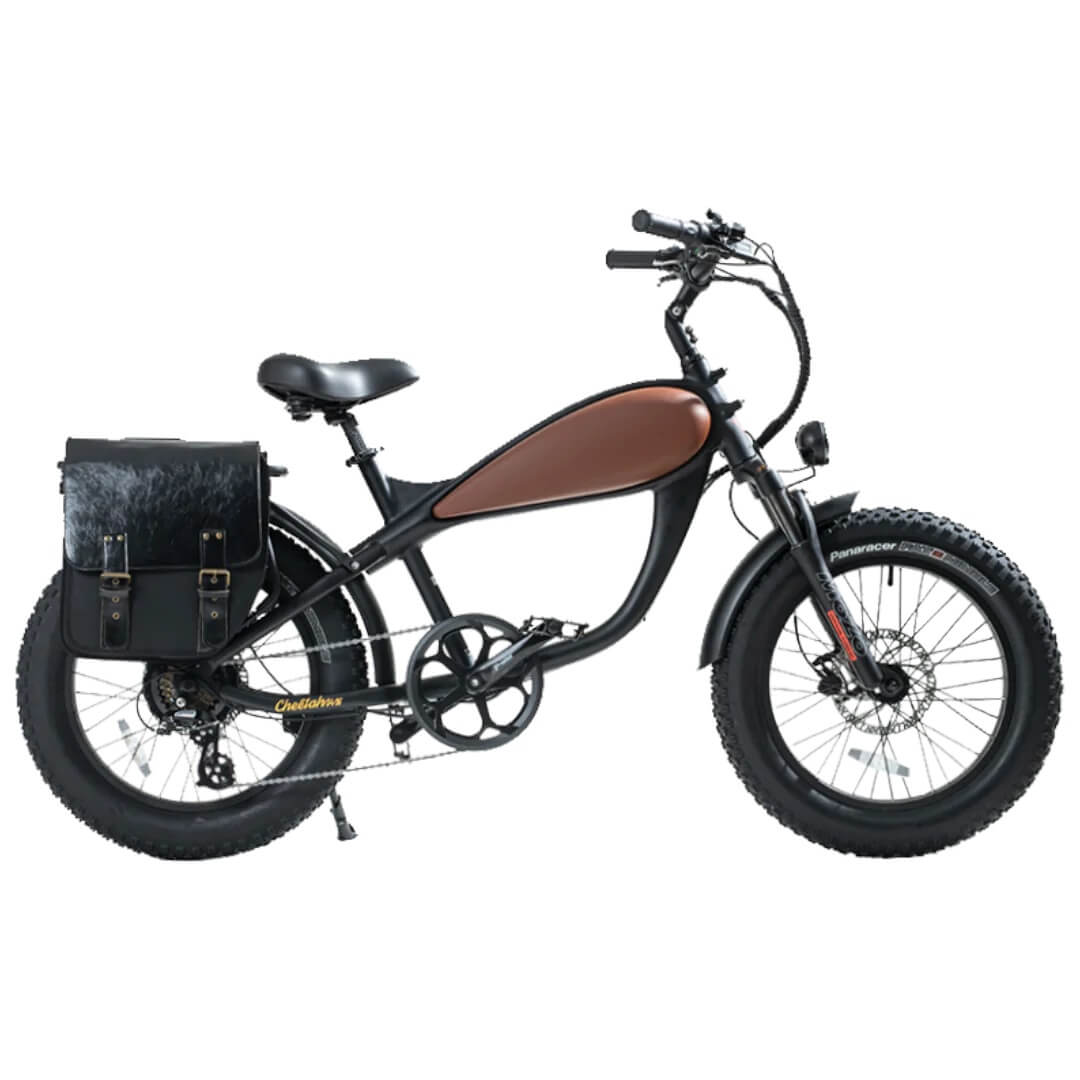

• Bag: PU Leather Saddle Bag Sold Separately. Capacity 25kg/55.11 Lbs
• Assembly: The Cheetah Mini comes mostly assembled. Final assembly includes attachment of the front wheel, front fender, lights, pedals and handlebar. Please see the assembly video below.

• Tools Required: 5mm, 15mm Wenches, Revi Multi-Tool (or 4mm & 5mm Allen Hex Keys) Included
• Shipping: Free shipping from the Los Angeles area warehouse to the lower 48. We are unable to ship this brand to Alaska, Hawaii or Canada at this time.

For a comparison of all the Cheetah models, check out this blog post. We have also added the NewCheetah to our list of the Best Fat Tire Electric Bikes, and out list of the Coolest Electric Bikes.

Cheetah Pro Size & Fit Chart

What's Included

Revi Bikes Cheetah User's Manual

Cheetah Color LCD C900E-USB Display Manual

Cheetah Mini Color LCD C900E-USB Instructional Video

Cheetah Mini Assembly Video Guide
